620-08A-SM-G10-L14-1



DesignationSocket by Andon
Article number (Eureca)01.25.0216
OriginUSA
ManufacturerAndon
Number of contacts 8
Isolation material L14
Surface Terminal/Contact -
Mounting SMD
Terminal type G10

Request samples or a quotation (including full datasheet) for this socket


Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions

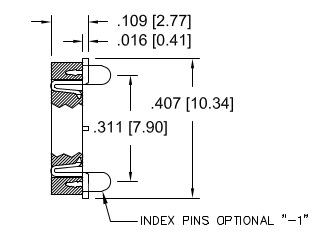

Side view

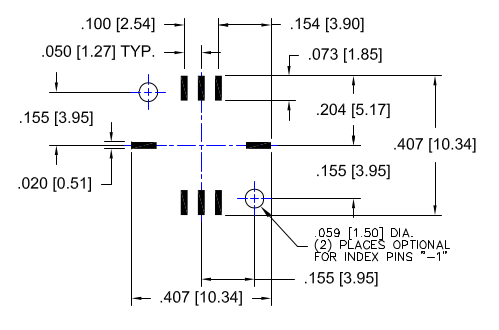

Recommended layout


This socket can be used for the following devices:

Excelitas:A2TPMI
Roither:8LCC
