Eureca® | Manufacturer Display

Sockets by Andon for products from OSI Laser Diode

OSI Laser Diode, Inc.'s (LDI) comprehensive optoelectronic manufacturing facility utilizes our (???) core competencies and capabilities.

For more information about this manufacturer, please visit their homepage: www.laserdiode.com

Socket series by Andon	Available Types	Matching devices from OSI Laser Diode
IS229-314	THT THT-Version (Through-Hole-Technology) IS229-314-01S-R29-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) IS229-314-93S-R29-L14 Click for more info	CVL 2S57-9mm, CVL 3S57-9mm, CVL 4S57-9mm, CVL 57-9mm, LDFR SERIES, LDPF SERIES, LDPW SERIES, LDSF SERIES, LDT 362-040, LDT 362-080, LDT 362E-040, LDT 362E-080, LDT 362NF-040, LDT 362NF-080, LDT 60005-004, LDT 60005-008, LDT 60005NF-004, LDT 60005NF-008, LDT 6000E-004, LDT 6000E-008, LP8M05-23-50, LP8M05-23-62, LP8M10-23-50, LP8M10-23-62, SCW 1331Y-120XX, SCW 1531Y-100XX, SCW 1631Y-100XX, SCW-1301 PACKAGE
R079-0403-01N	THT THT-Version (Through-Hole-Technology) R079-0403-01N-274K-R15-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) R079-0403-01N-281K-R15-L14 Click for more info	SCW 1336X-120XXR, SCW 1536X-120XXR, SCW 1636X-100XXR

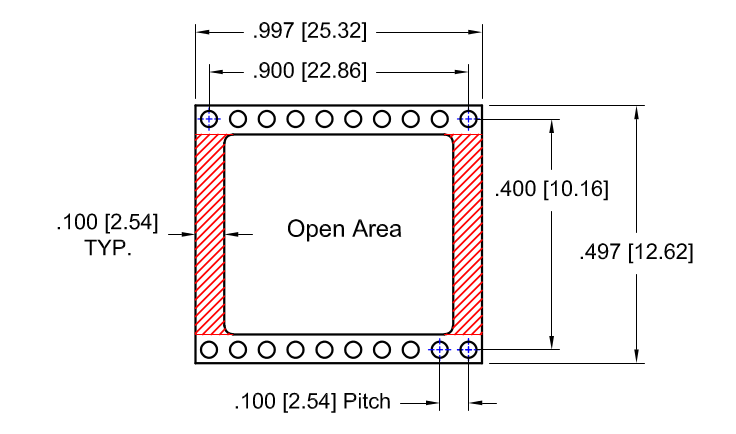

IS229-420	THT THT-Version (Through-Hole-Technology) IS229-420-01S-R29-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) IS229-420-93S-R29-L14 Click for more info	RT2000PT-052FC, RT2000PT-155FC, RT2000PT-622FC, TL2063PT-005FC, TL2063PT-010FC, TL2065PT-005FC, TL2065PT-010FC

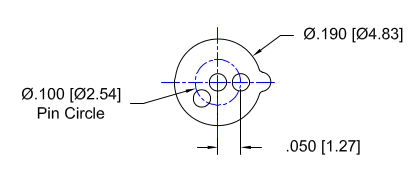

R100-SP03-02T	THT THT-Version (Through-Hole-Technology) R100-SP03-02T-274K-R15-L4 Click for more info SMD SMD-Version (Surface-Mount-Device) R100-SP03-02T-281K-R15-L4 Click for more info	LPD 3080-PM1, LPD 3080-PM2, LPD 3080-PM3, LPD 3080-PM4
405-07	THT THT-Version (Through-Hole-Technology) 405-07-01S-R29-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) 405-07-93S-R29-L14 Click for more info	SCW 1332Y-120XX, SCW 1532Y-100XX, SCW 1632Y-100XX
R100-0403-05N	THT THT-Version (Through-Hole-Technology) R100-0403-05N-75S-R15-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) R100-0403-05N-265S-R15-L14 Click for more info	CVD XXX-90, CW 0500-90-XX, CW 1000-90-XX, CW 2000-90-XX, CW 5000-90-XX, CWR 635-90, LKR-2S-35-9mm, LKR-3S-35-9mm, LKR35L-9mm, LR35-9mm

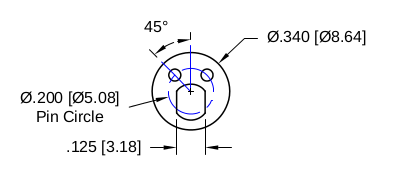

R200-SP02-04	THT THT-Version (Through-Hole-Technology) R200-SP02-04-75S-R15-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) R200-SP02-04-265S-R15-L14 Click for more info	CVD XXX-TO-5T, LKR-3S-35-TO-5T, LKR35L-TO-5T
R100-0402-02T	THT THT-Version (Through-Hole-Technology) R100-0402-02T-75S-R15-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) R100-0402-02T-265S-R15-L14 Click for more info	CVD XXX-T0-18T, CVD XXX-T0-18T, CVL 2S57-TO18T, CVL 3S57-TO18T, CVL 4S57-TO18T, LKR-2S-35-TO-18T, LKR-3S-35-TO-18T, LKR35L-TO-18T, LR35-TO-18T
IS229-3108	THT THT-Version (Through-Hole-Technology) IS229-3108-01S-R29-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) IS229-3108-93S-R29-L14 Click for more info	LPAD SERIES
R100-0404-02T	THT THT-Version (Through-Hole-Technology) R100-0404-02T-75S-R15-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) R100-0404-02T-265S-R15-L14 Click for more info	LDFC SERIES, LDST SERIES, LPA SERIES
C10-010-09-01	THT THT-Version (Through-Hole-Technology) C10-010-09-01-433E-R15-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) C10-010-09-01-285E-R15-L14 Click for more info	CW 0500-HF-XX, CW 0500-HH-XX, CW 1000-HF-XX, CW 1000-HH-XX, CW 2000-HF-XX, CW 2000-HH-XX, CW 5000-HF-XX, CW 5000-HH-XX
F500-SP09-01	THT THT-Version (Through-Hole-Technology) F500-SP09-01-433E-R15-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) F500-SP09-01-285E-R15-L14 Click for more info	CW 0500-T3-XX, CW 1000-T3-XX, CW 2000-T3-XX, CW 5000-T3-XX
108-00628	THT THT-Version (Through-Hole-Technology) 108-00628-01S-R15-B10 Click for more info SMD SMD-Version (Surface-Mount-Device) 108-00628-93S-R15-B10 Click for more info	CW 5000-T3-XX
108-00629	THT THT-Version (Through-Hole-Technology) 108-00629-01S-R15-B10 Click for more info SMD SMD-Version (Surface-Mount-Device) 108-00629-93S-R15-B10 Click for more info	RT 2714 Receiver
IS229-3106	THT THT-Version (Through-Hole-Technology) IS229-3106-01S-R29-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) IS229-3106-93S-R29-L14 Click for more info	CWR 635-MD
