Sockets by Andon for products from Fairchild Imaging

Fairchild Imaging, a division of BAE Systems Inc., designs, develops and manufactures solid-state imaging components and imaging systems.

For more information about this manufacturer, please visit their homepage: www.fairchildimaging.com

Socket series by Andon	Available Types	Matching devices from Fairchild Imaging

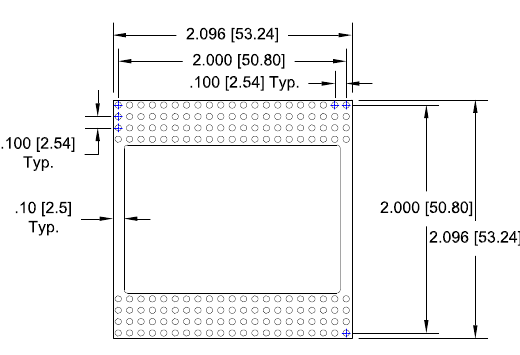

575-21-14-168	THT THT-Version (Through-Hole-Technology) 575-21-14-168-80M-R29-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) 575-21-14-168-80M-R29-L14 Click for more info	CCD485

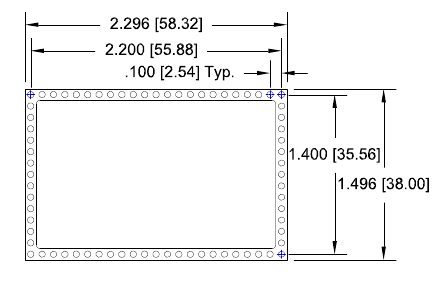

575-23-03-072	THT THT-Version (Through-Hole-Technology) 575-23-03-072-01M-R29-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) 575-23-03-072-01M-R29-L14 Click for more info	CCD424

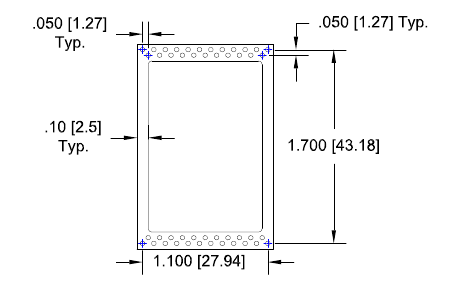

585-23-04-046	THT THT-Version (Through-Hole-Technology) 585-23-04-046-211M-R29-L14 Click for more info SMD SMD-Version (Surface-Mount-Device) 585-23-04-046-211M-R29-L14 Click for more info	CCD3041, CCD3041 BI, CCD3041 FI
IS229-2654	THT THT-Version (Through-Hole-Technology) IS229-2654-01M-R29-L14-A Click for more info SMD SMD-Version (Surface-Mount-Device) IS229-2654-93M-R29-L14-A Click for more info	CCD486 FI

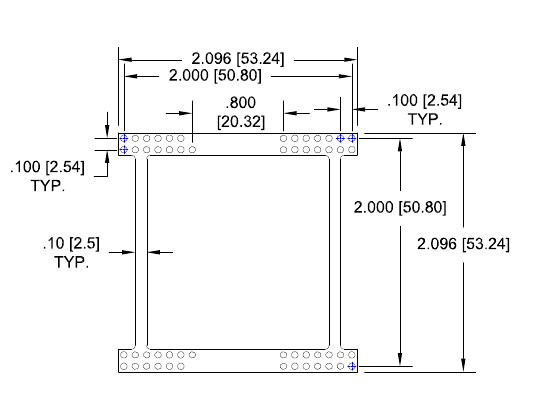

IS231-2054D	THT THT-Version (Through-Hole-Technology) IS231-2054D-01M-R29-L14-A Click for more info SMD SMD-Version (Surface-Mount-Device) IS231-2054D-01M-R29-L14-A Click for more info	CCD486 BI

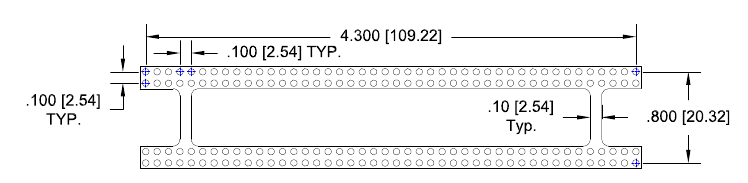

IS229-8176D	THT THT-Version (Through-Hole-Technology) IS229-8176D-01M-R29-L14-A Click for more info SMD SMD-Version (Surface-Mount-Device) IS229-8176D-01M-R29-L14-A Click for more info	CCD8091

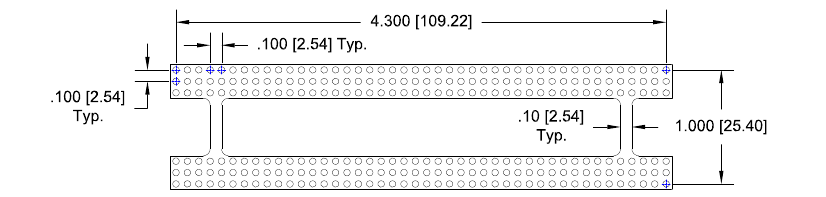

IS229-10264T	THT THT-Version (Through-Hole-Technology) IS229-10264T-01M-R29-L14-A Click for more info SMD SMD-Version (Surface-Mount-Device) IS229-10264T-01M-R29-L14-A Click for more info	CCD5061

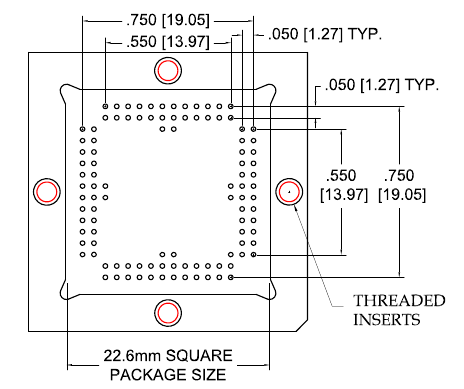

683-105-SM	SMD SMD-Version (Surface-Mount-Device) 683-105-SM-500-R27-L14-0 Click for more info	CIS1910AF0111 (sCMOS)
681-120101A-SM	SMD SMD-Version (Surface-Mount-Device) 681-120101A-SM-G10-L14-0 Click for more info	CIS1910F0221, CIS1910F1221

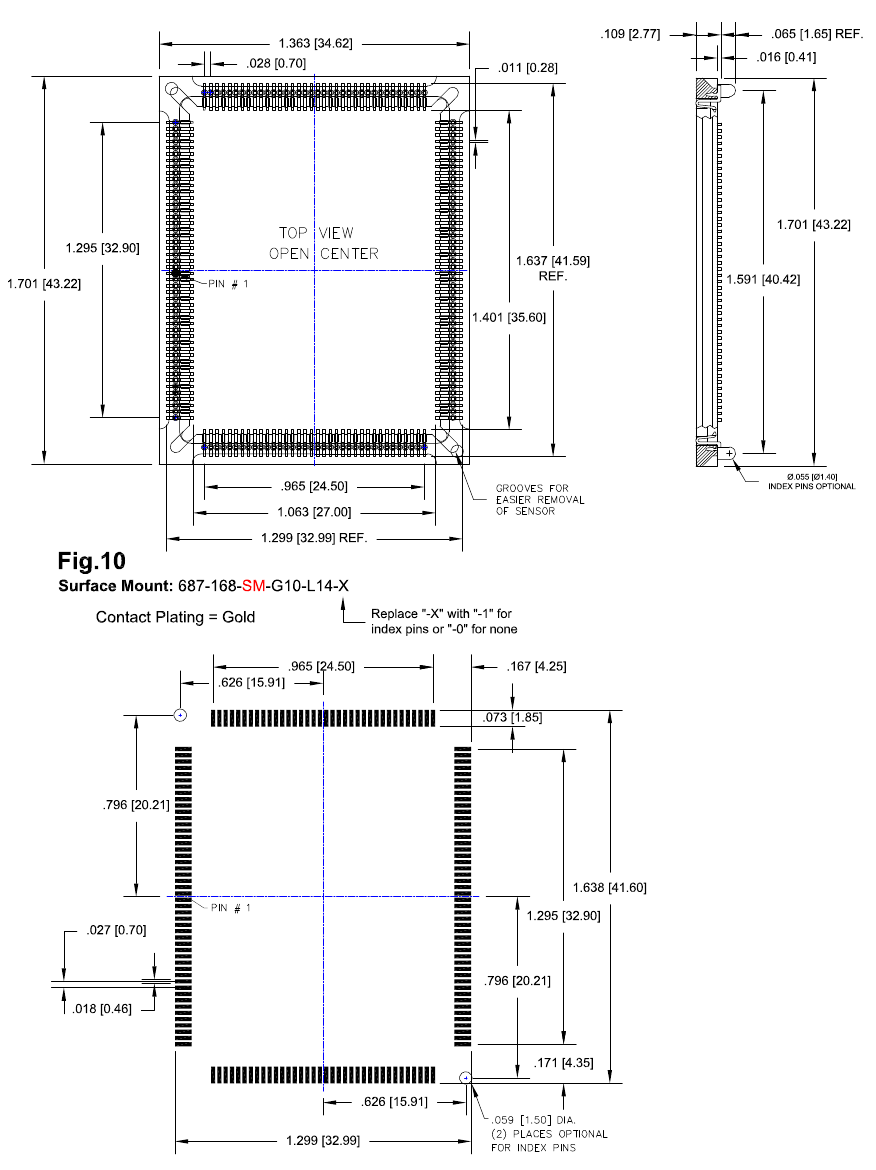

687-168-SM	SMD SMD-Version (Surface-Mount-Device) 687-168-SM-G10-L14-0 Click for more info	CIS2020 (CMOS version), CIS2521F (CMOS)

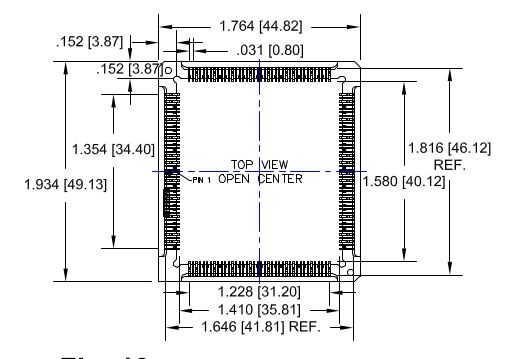

690-168-SM	SMD SMD-Version (Surface-Mount-Device) 690-168-SM-G10-L14-0 Click for more info	CIS2020 (sCMOS version), CIS2521F (sCMOS 40.98x36.58mm package)

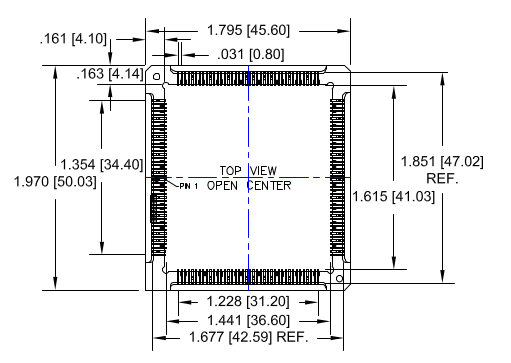

690S-168A-SM	SMD SMD-Version (Surface-Mount-Device) 690S-168A-SM-G10-L14-0 Click for more info	CIS2521F (sCMOS 41.18x36.75mm package)

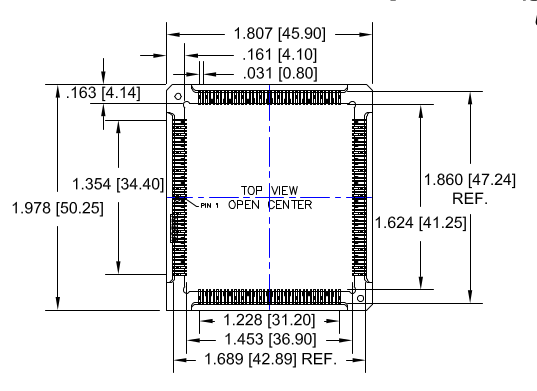

690S-168B-SM	SMD SMD-Version (Surface-Mount-Device) 690S-168B-SM-G10-L14-0 Click for more info	CIS2521F (sCMOS 41.4x37.05mm package)

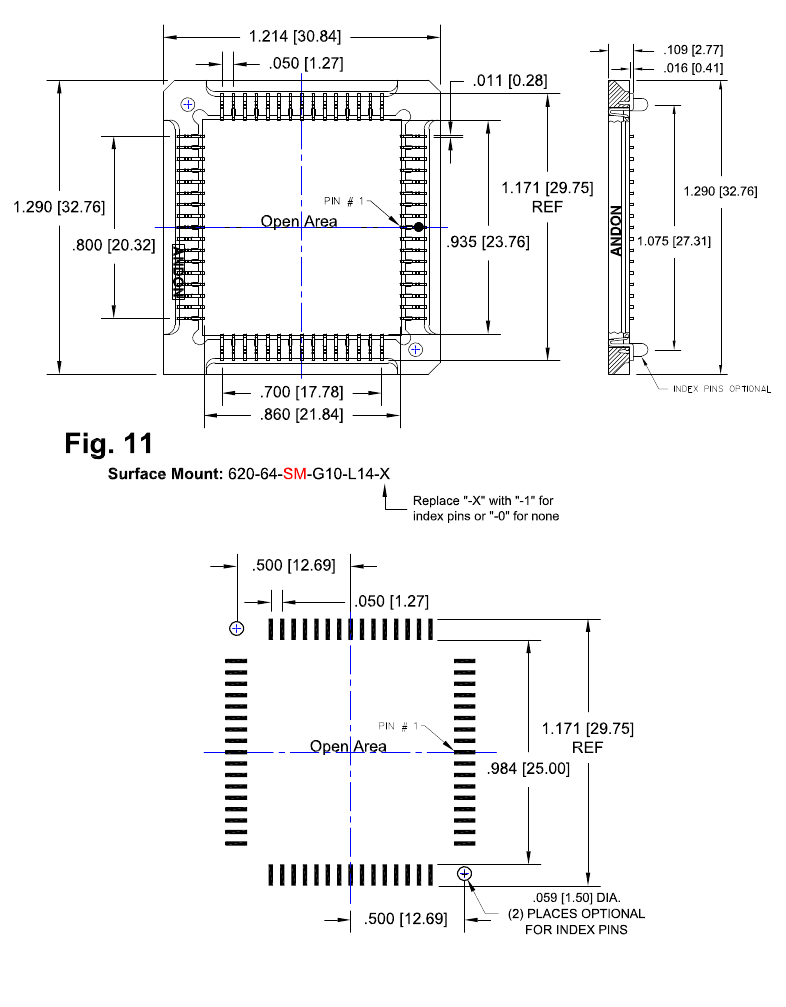

620-64-SM	SMD SMD-Version (Surface-Mount-Device) 620-64-SM-G10-L14-0 Click for more info	HWK1910A

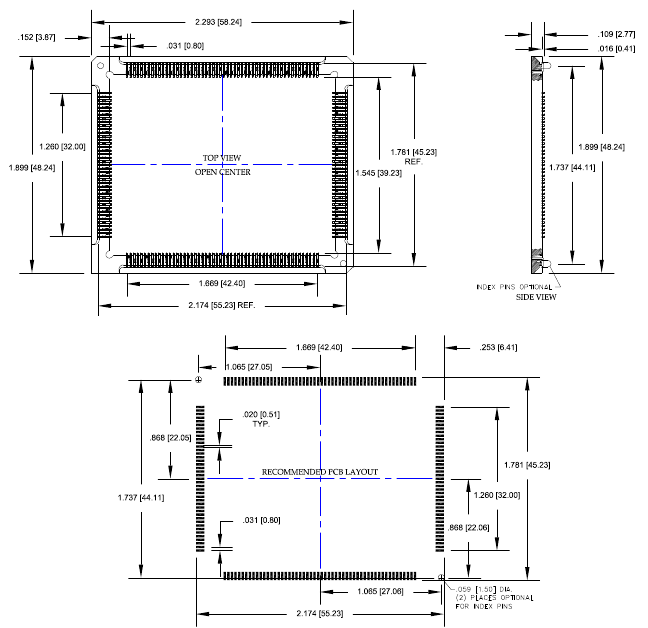

690-194-SM	SMD SMD-Version (Surface-Mount-Device) 690-194-SM-G10-L14-0 Click for more info	LTN4625A
