DIP Sockets (Dual in-line Package)

Andon provides many versions of DIP sockets, utilizing their famous High-Rel multi-finger contact. The DIP sockets include varieties with and without mounting holes, surface mount, shrink DIP, crystal & relay, zig zag, board to board and raised interconnects.

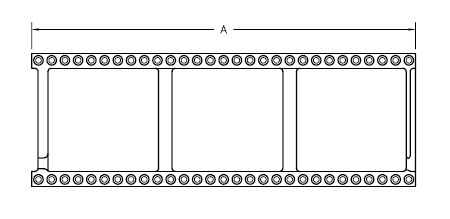

Standard DIP Socket

• available with 6 to 64 pins
• seven different pin versions available
• four different contact types

Data Sheet Series 101 and 102
101: with cross bars / 102: without cross bars

Closed Frame DIP Socket

• available with 6 to 40 pins
• two pin lenghts available
• four different contact types available

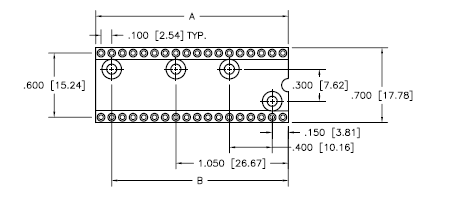

Data Sheet Series 201 and 202
201: with mounting holes / 202: without mounting holes

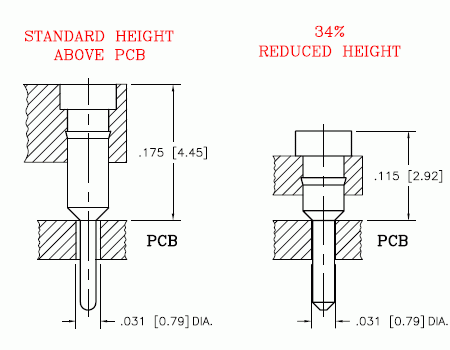

Sockets with low profile

• available with 6 to 40 pins
• versions with different heights
• four different contact types available

Data Sheet Series 103, 104 and 105
103: low profile
104: ultralow profile with cross bars
105: ultralow profilel without cross bars

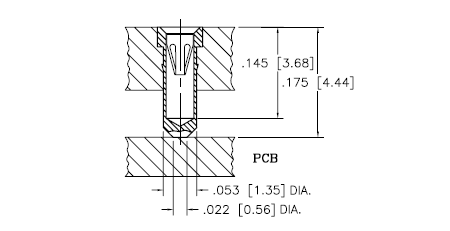

Sockets for Surface Mount

• available with 6 to 64 pins
• four different contact types available

Data Sheet Series 106 and 206
106: Hi-Temperature type with open frame
206: Hi-Temperature type with closed frame

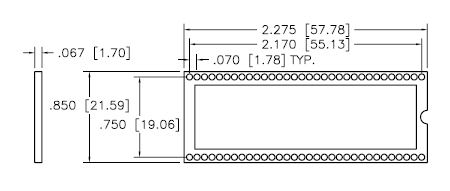

Shrink DIP

• available with 28, 40 und 64 pins
• two pin lengths available
• four different contact types available

Data Sheet Series 107, 207 and 403
107: open frame / 207: closed frame
403: carrier made of glass-epoxy material for high temperatue

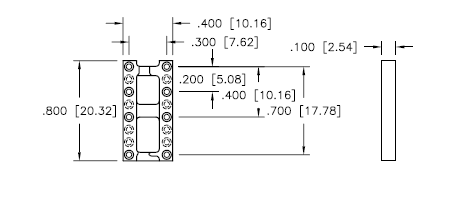

Sockets for crystals & relays

• available with 4 and 8 pins
• four different contact types available

Data Sheet Series 108 and 208
108: open frame / 208: closed frame

DIP Component Adapter / Header

• available with 6 to 64 pins
• four pin versions available

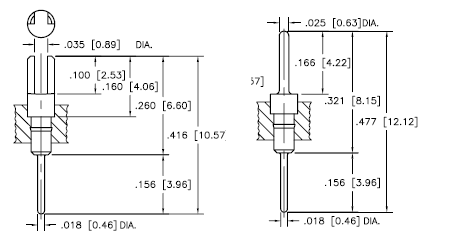

Data Sheet Series 109 and 209
109: open frame / 209: closed frame

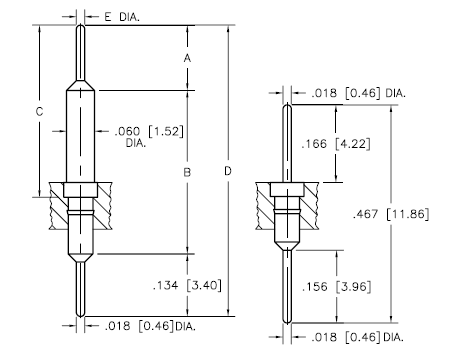

DIP Header / Board to Board

• available with 6 to 64 pins
• two pin versions available

Data Sheet Series 110 and 210
110: open frame
210: closed frame

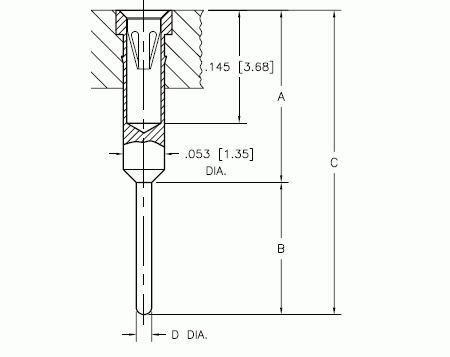

DIP Socket – Raised Interconnect

• available with 6 to 64 pins
• four different contact types available

Data Sheet Series 111 and 211
111: open frame
211: closed frame

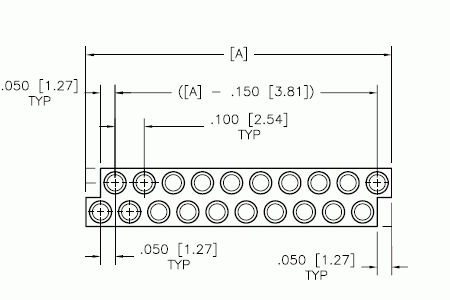

Sockets in Zig Zag

• available with 20 to 64 pins
• four different contact types available

Data Sheet Series 214
