| Description | Line scan camera board by Eureca |
| Articlenumber (Eureca): | 02.29.0012 |
| Origin: | Germany |
| EAN | 0675051081584 |
| FPGA Brand | Intel |
| Interface | FT2232H |
| Pre Programmed FPGA | ✓ |
| FPGA Software Sources | Verilog |
| Open Source (FPGA) | ✓ |
| PC / SoC Software | Linux / Windows |
| Open Source (PC) | ✓ |
| Sensor | TCD1304 |
| Pixel number | 3648 |
| Pixel pitch | 8 µm |
| Pixel height | 200 µm |
| Sensor replacement | ✗ |
| Sensor options | ✗ |
| Digitization Depth | 12 bit |
| Read out noise (typ. rms) | 65 e− |
| Linear Full Well Capacity | 40 ke− |
| Full Scale Capacity | 70 ke− |
| Data Word | 16 bit |
| ADC data alignment | left justified |
| LSB fill type default | zeroes |
| LSB fill type selectable | ✗ |
| Conversion Gain (typ @ 0.4 FS) | @ 16 Bit: 1.3±0.2 e−/LSB |
| Minimum Exposure Time | 8 ms |
| Maximum Exposure Time | 65 s |
| Exposure Time Gradation | 1 ms |
| Maximum Frame Rate | 50 fps |
| Minimum Frame Rate | 0.015 fps |
| Frame Rate Gradation | ✗ ms |
| Frame Request via USB | ✗ |
| Frame Request via USB Latency | ✗ ms |
| Integration Start/Stop via USB | ✗ |
| Start/Stop via USB Latency | ✗ ms |
| External Trigger Input | ✗ |
| External Trigger Latency | ✗ µs |
| External Trigger Jitter | ✗ ns |
| External Trigger Latency (debounced) | ✗ µs |
| Isolated external Trigger Input | ✗ |
| External Exposure Time Control | ✗ |
| Exposure Time Control Latency | ✗ |
| Minimum External Exposure Time | ✗ |
| Maximum External Exposure Time | ✗ |
| Exposure Time Control Latency (debounced) | ✗ |
| Minimum External Exposure Time (debounced) | ✗ |
| Trigger Output | ✗ |
| Isolated Trigger Output | ✗ |
| Master / Slave Synchronization | ✗ |
| High Resolution Timestamp: Trigger | ✗ |
| High Resolution Timestamp: Exp. Start | ✗ |
| High Resolution Timestamp: Exp. Stop | ✗ |
| GPIO | ✗ |
| Maximum Data Rate | via USB: 0.4 MB/s |
| Enhanced Frame Buffer | ✗ |
| CRC32 Secured Communication | ✗ |
| USB-Powered | ✓ |
| Optional External Power Supply | ✗ |
| Supply Current | < 250 mA |

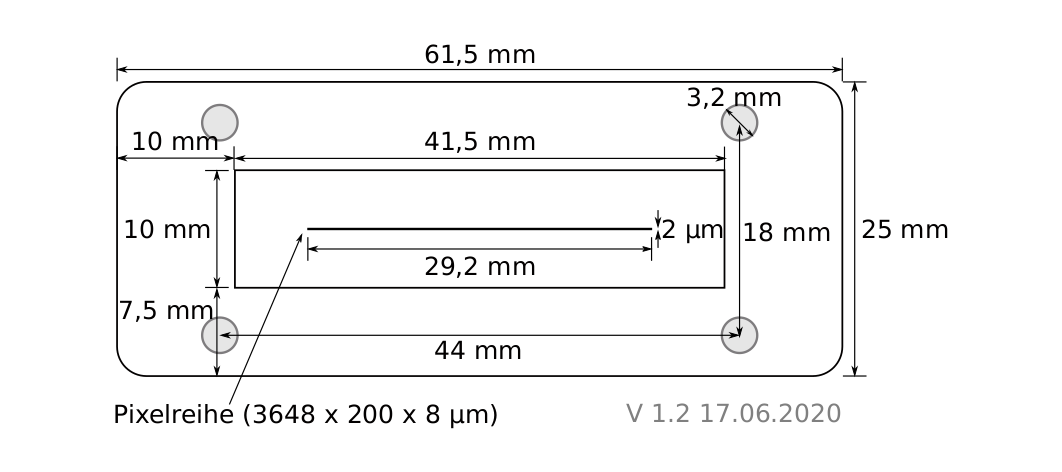

| Size (L×B×H) | 62×25×20 mm |
| Weight | 21 g |
Sample picture
OSI version.
Since the sensor is socketed, it can easily be replaced by another version refined internally at Eureca. This can e. g. be sensors with the cover glass removed to avoid disturbing reflections. However, sensors coated with Lumigen to expand the usable spectral range into UV or sensors with special filters are also possible.
After replacing the sensor, the module must be recalibrated. A special automatic program is available for this, which is included in the scope of delivery of the modules.
For a detailed list of all properties and comparisons to other versions of this line scan camera board, please refer to the PDF documents listed below.
Please use our online shop to place an order!
Further information, source codes and documentation can be found on our service page.
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
