Sockets by Andon for products from Opto Diode Corporation

Optek Technology designs and manufactures innovative optoelectronic solutions for sensing and illumination applications, e.g. in the industrial, medical, aerospace, and transportation markets.

For more information about this manufacturer, please visit their homepage: www.optodiode.com

Socket series by Andon	Available Types	Matching devices from Opto Diode Corporation

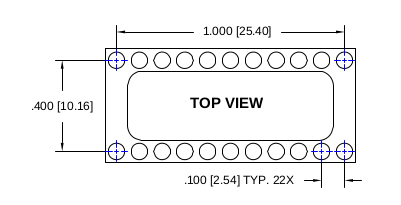

C10-422-22-01	THT THT-Version (Through-Hole-Technology) C10-422-22-01-01S-R27-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) C10-422-22-01-93S-R27-L14 Click for more info	OD-20 ARRAY

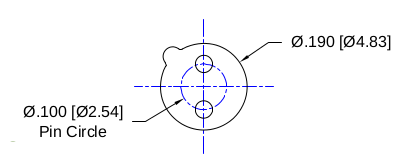

R100-0402-01	THT THT-Version (Through-Hole-Technology) R100-0402-01-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-0402-01-265S-R15-L14 Click for more info	OD-148W, OD-24F, OD-6FS, OD-780W, OD-870F, OD-870L, OD-870W, OD-880, OD-880E, OD-880F, OD-880F1, OD-880FHT, OD-880L, OD-880LHT, OD-880W, OD-880WHT, ODD-1, ODD-12W
R200-0403-02T	THT THT-Version (Through-Hole-Technology) R200-0403-02T-01S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R200-0403-02T-93S-R15-L14 Click for more info	OD-100, OD-470, OD-470L, OD-50L, OD-50W, OD-520, OD-521L, OD-620, OD-620L, ODD-15W, ODD-5W, ODD-5WISOL, ODD-95W, ODD-95WISOL

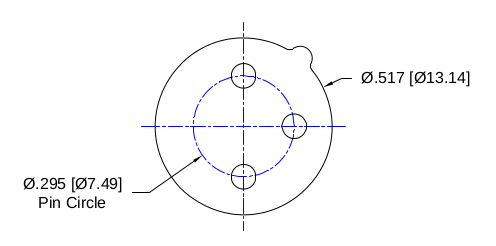

R295-0403-01	THT THT-Version (Through-Hole-Technology) R295-0403-01-01S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R295-0403-01-93S-R15-L14 Click for more info	RT2000PT-052FCL, RT2000PT-155FCL, RT2000PT-622FCL, TL2063PT-005FCL, TL2063PT-010FCL, TL2065PT-005FCL, TL2065PT-010FCL

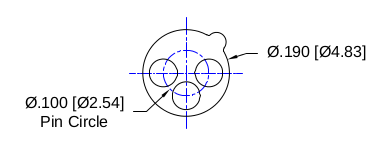

R100-0403-01	THT THT-Version (Through-Hole-Technology) R100-0403-01-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-0403-01-265S-R15-L14 Click for more info	ODD-45W, ODD-45WISOL

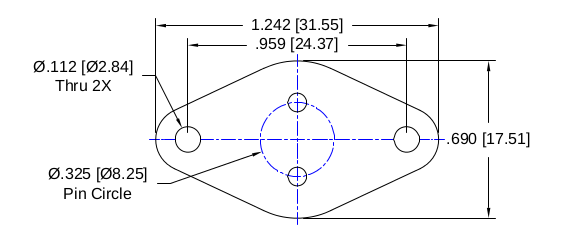

F325-0402-02	THT THT-Version (Through-Hole-Technology) F325-0402-02-295V-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) F325-0402-02-439V-R15-L14 Click for more info	OD-663, OD-666, OD-669
