Sockets by Andon for products from OSI Laser Diode, Inc. (LDI / Tyco)

OSI Laser Diode, Inc. (LDI) produces advanced optoelectronic products of the highest quality for a broad range of applications and industries.

For more information about this manufacturer, please visit their homepage: www.laserdiode.com

Socket series by Andon	Available Types	Matching devices from OSI Laser Diode, Inc. (LDI / Tyco)

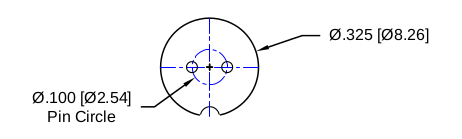

R100-0403-05N	THT THT-Version (Through-Hole-Technology) R100-0403-05N-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-0403-05N-265S-R15-L14 Click for more info	CVD163-9mm, CVD165-9mm, CVD166-9mm, CVD167-9mm, CVD193-9mm, CVD195-9mm, CVD197-9mm, CVD40-9mm, CVD60-9mm, CVD62-9mm, CVD65-9mm, CVD68-9mm, CVD90-9mm, CVD93-9mm, CVD95-9mm, CVD97-9mm, CVL2S57-9mm, CVL3S57-9mm, CVL4S57-9mm, CVL57-9mm, CWXXXX-90-XX, CWXXXX-T3-XX

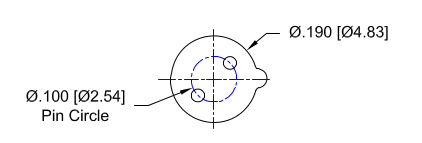

R100-0402-02T	THT THT-Version (Through-Hole-Technology) R100-0402-02T-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-0402-02T-265S-R15-L14 Click for more info	CVD163-TO-18T, CVD165-TO-18T, CVD166-TO-18T, CVD167-TO-18T, CVD192-TO-18T, CVD192-TO-18T, CVD195-TO-18T, CVD197-TO-18T, CVD40-TO-18T, CVD60-TO-18T, CVD62-TO-18T, CVD65-TO-18T, CVD67-TO-18T, CVD68-TO-18T, CVD90-TO-18T, CVD93-TO-18T, CVD95-TO-18T, CVD97-TO-18T, CVL2S57-TO-18T, CVL3S57-TO-18T, CVL4S57-TO-18T, CVL57-TO-18T

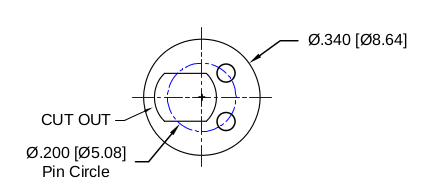

R200-SP02-03	THT THT-Version (Through-Hole-Technology) R200-SP02-03-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R200-SP02-03-265S-R15-L14 Click for more info	CVD163-TO-5T, CVD165-TO-5T, CVD166-TO-5T, CVD167-TO-5T, CVD192-TO-5T, CVD193-TO-5T, CVD195-TO-5T, CVD197-TO-5T, CVD40-TO-5T, CVD60-TO-5T, CVD62-TO-5T, CVD65-TO-5T, CVD67-TO-5T, CVD68-TO-5T, CVD90-TO-5T, CVD93-TO-5T, CVD95-TO-5T, CVD97-TO-5T, CVL2S57-TO-5T, CVL3S57-TO-5T, CVL4S57-TO-5T, CVL57-TO-5T

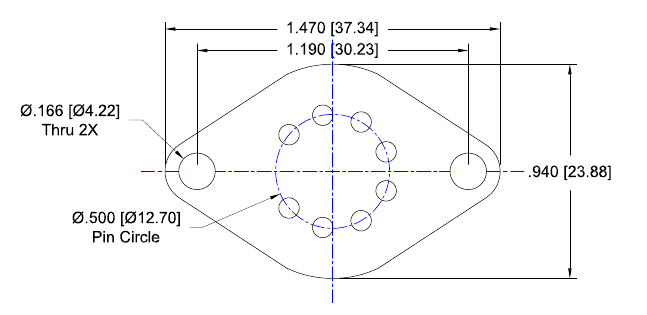

F500-SP09-01	THT THT-Version (Through-Hole-Technology) F500-SP09-01-433E-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) F500-SP09-01-285E-R15-L14 Click for more info	CWR-635, CWR-650
R100-0404-01T	THT THT-Version (Through-Hole-Technology) R100-0404-01T-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-0404-01T-265S-R15-L14 Click for more info	LDFC SERIES

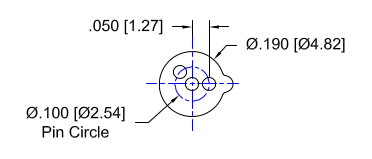

R100-SP03-01T	THT THT-Version (Through-Hole-Technology) R100-SP03-01T-274K-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-SP03-01T-281K-R15-L14 Click for more info	LPD3080-PM1, LPD3080-PM2, LPD3080-PM3, LPD3080-PM4
