Sockets by Andon for products from Optowell

Optowell is a leading supplier of GaAs-based Vertical Cavity Surface Emitting Lasers (VCSELs), GaAs PIN photodiodes, RCLEDs and TOSA/ROSA modules of the highest quality. The VCSELs are available both as a chip and in numerous housing versions. The wavelengths of the VCSEL range from 670 nm to 980 nm at a data rate of up to 10 GBps.

For more information about this manufacturer, please visit their homepage: www.lasercomponents.com

Socket series by Andon	Available Types	Matching devices from Optowell
R100-0403-05T	THT THT-Version (Through-Hole-Technology) R100-0403-05T-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-0403-05T-265S-R15-L14 Click for more info	GP85-FCT0N, GP85-SCT0N, GS85-FCP1S-KC, GS85-FCP1S-KC, PH85-B1P0U4, PH85-B1P1N-KC, PH85-B1P1S2-AC, PH85-B1P1S2-KC, PH85-B1P1S2-KC, PH85-D2P0U4, PH85-F1P0U4, PH85-F1P1S2-AC, PH85-F1P1S2-KC, PH85-F1P1S2-KC, PM67-F1P1N, PM78-F1P0N, PM85-B1P1N-AC, PM85-B1P1N-KC, PM85-B1P1N-KC, PM85-F1P0N, PM85-F1P1N-AC, PM85-F1P1N-KC, PP85-B1T0N, RP85-LCT0N PM67-F1P0N
R100-0404-03T	THT THT-Version (Through-Hole-Technology) R100-0404-03T-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-0404-03T-265S-R15-L14 Click for more info	PP85-B1T1N, PP85-B1T1S, PP85-F1T1N, PP85-F1T1S, PP85-F1T1S, RP85-LCT1N, RP85-LCT1S, RP85-LCT3S-I, RP85-SCT1N, RP85-SCT1S, TP85-LCP1F-AC, TP85-LCP1F-KC

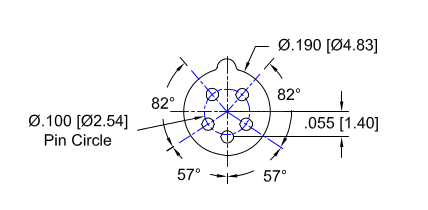

R100-SP05-01T	THT THT-Version (Through-Hole-Technology) R100-SP05-01T-274K-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-SP05-01T-281K-R15-L14 Click for more info	PP85-B1T1F, RP85-LCT1F, RP85-LCT2N- I, RP85-LCT2N-I, RP85-LCT2S-V
R100-SP03-02T	THT THT-Version (Through-Hole-Technology) R100-SP03-02T-274K-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-SP03-02T-281K-R15-L14 Click for more info	G85-FCP0S, GS85-FCP0S, GS85-SCP0S, PH85-B1P0S2, PH85-F1P0S2, PM78-B1P0N, PM85-B1P0N, PM85-B1P0S2, PM98-B1P0N, PM98-F1P0N, TP85-LCP0N, TP85-LCP0S2
R100-0402-06T	THT THT-Version (Through-Hole-Technology) R100-0402-06T-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R100-0402-06T-265S-R15-L14 Click for more info	PH85-D1P0S2, PHM85-D1P0S2, PM67-D1P0U, PM85-D1P0U, PR65-F1P0T, PR65-P1F0T

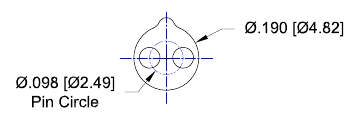

R098-0402-01T	THT THT-Version (Through-Hole-Technology) R098-0402-01T-75S-R15-L14 Click for more info    SMD SMD-Version (Surface-Mount-Device) R098-0402-01T-265S-R15-L14 Click for more info	XM85-R5P0U-4U, XS85-R5P0U-5U
