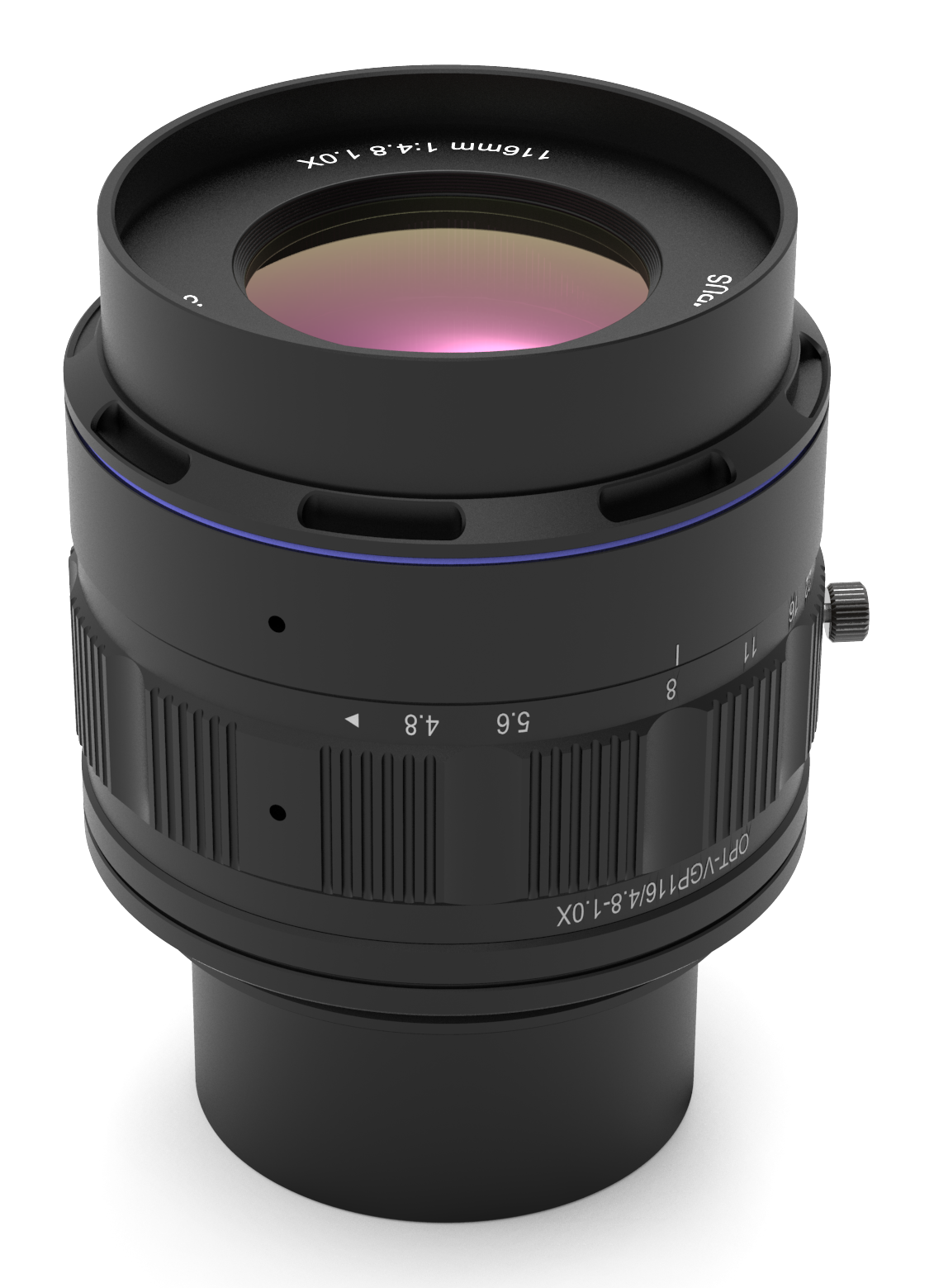

OPT-VGP116-4.8-1.0X

DescriptionGrampus Line Scan Lenses
Articlenumber (Eureca):06.23.0173
Origin: China
Manufacturer: OPT
Focal length116 mm
ApertureF4.8–F22
Image circle82 mm
MountV58 mount
Weight0.53 kg
Working Distance200.4 mm
Working Distance183.8 mm
Working Distance170.9 mm
Primary Magnification0.875 ×
Primary Magnification1.00 ×
Primary Magnification1.125 ×
Distortion0.06 %
Distortion0.003 %
Distortion0.045 %
Flange distance200.1 mm
Flange distance214.6 mm
Flange distance229.1 mm
Object to image distance462.4 mm
Object to image distance460.4 mm
Object to image distance461.9 mm
Filter threadM58×P0.75

To the product series

  • Large image circle: High resolution optical design; 82 mm image circle, compatible with (16k)/5 µm, (12k)/5 µm and (8k)/7 µm line scan cameras
  • Low distortion: Total distortion < 0.025 % (at primary magnification), Min. distortion as low as 0.01 %
  • Wide magnification range: 0.22 ×–1.56 ×

For more information, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Optical Technical Data of the Lens
Dimensional Drawnig of the lens

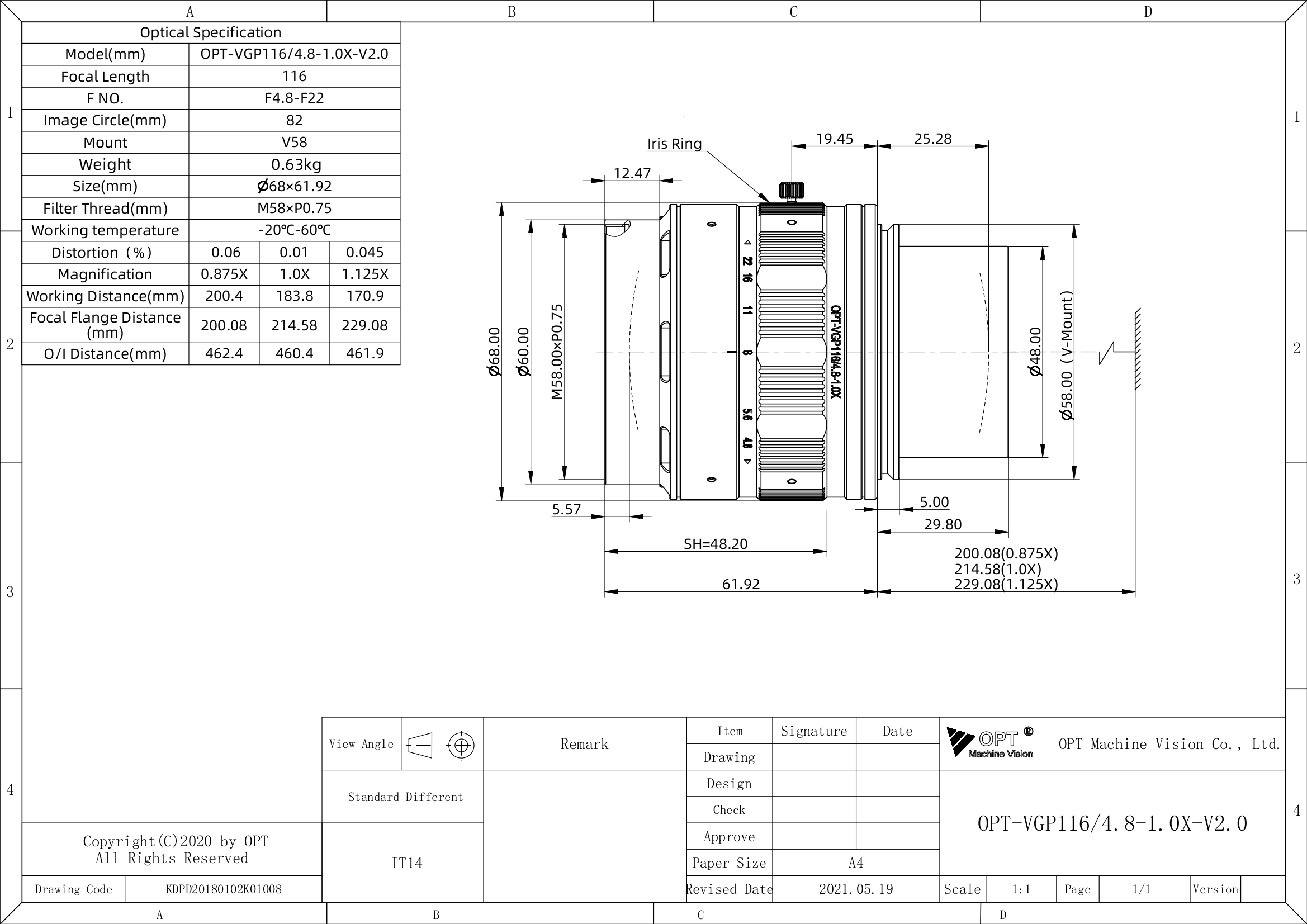

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.31.2021
