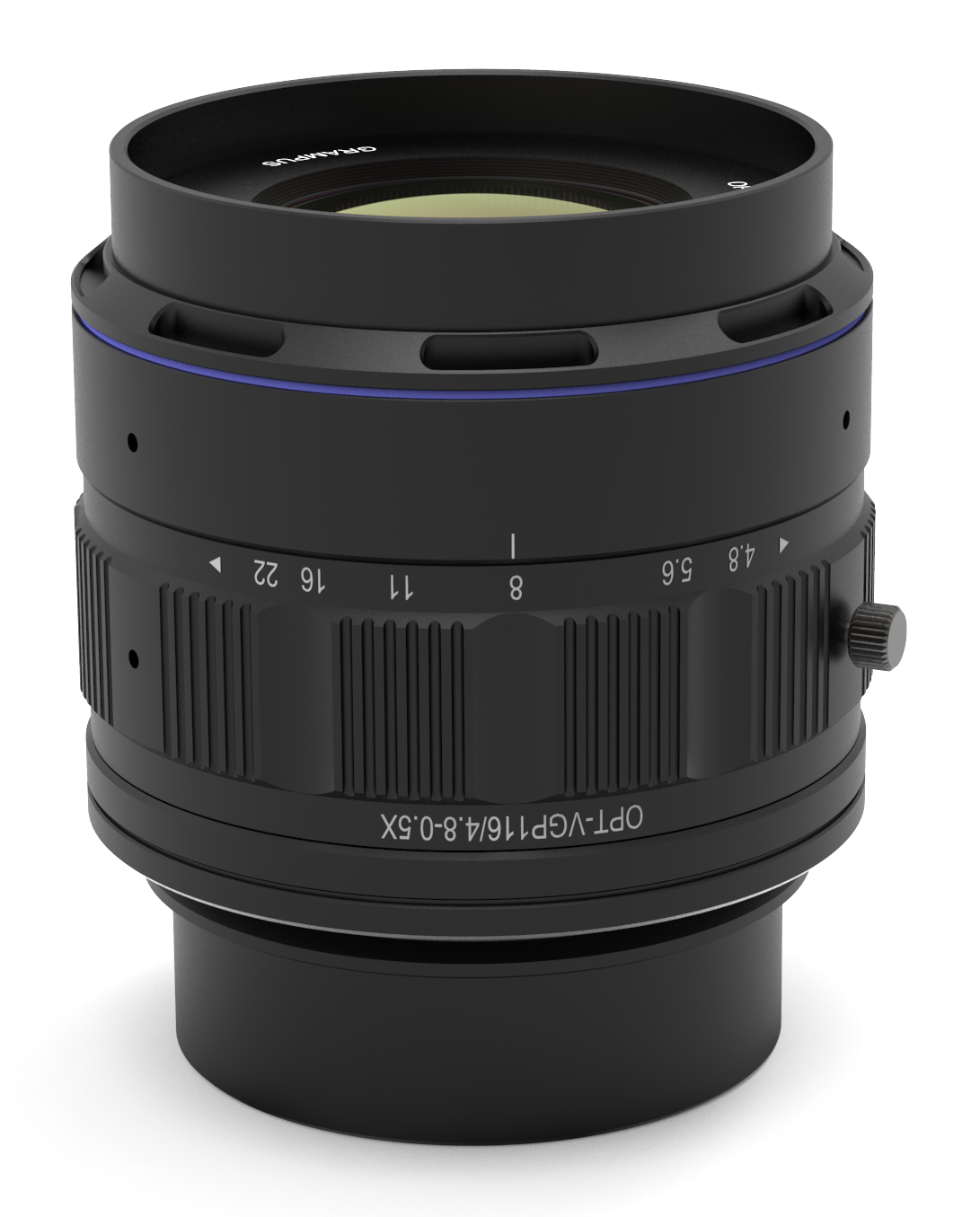

DescriptionGrampus Line Scan Lenses
Articlenumber (Eureca):06.23.0171
Origin: China
Manufacturer: OPT
Focal length116 mm
Image circle82 mm
MountV58 mount
Weight0.52 kg
Working Distance353.0 mm
Working Distance312.1 mm
Working Distance273.4 mm
Primary Magnification0.425 ×
Primary Magnification0.500 ×
Primary Magnification0.600 ×
Distortion0.122 %
Distortion0.028 %
Distortion0.090 %
Flange distance131.3 mm
Flange distance140.0 mm
Flange distance151.6 mm
Object to image distance542.5 mm
Object to image distance510.3 mm
Object to image distance483.2 mm
Filter threadM58×P0.75

To the product series

  • Large image circle: High resolution optical design; 82 mm image circle, compatible with (16k)/5 µm, (12k)/5 µm and (8k)/7 µm line scan cameras
  • Low distortion: Total distortion < 0.025 % (at primary magnification), Min. distortion as low as 0.01 %
  • Wide magnification range: 0.22 ×–1.56 ×

For more information, please refer to the datasheet.

Documents for download:

Datasheet of the lens series
Optical Technical Data of the Lens

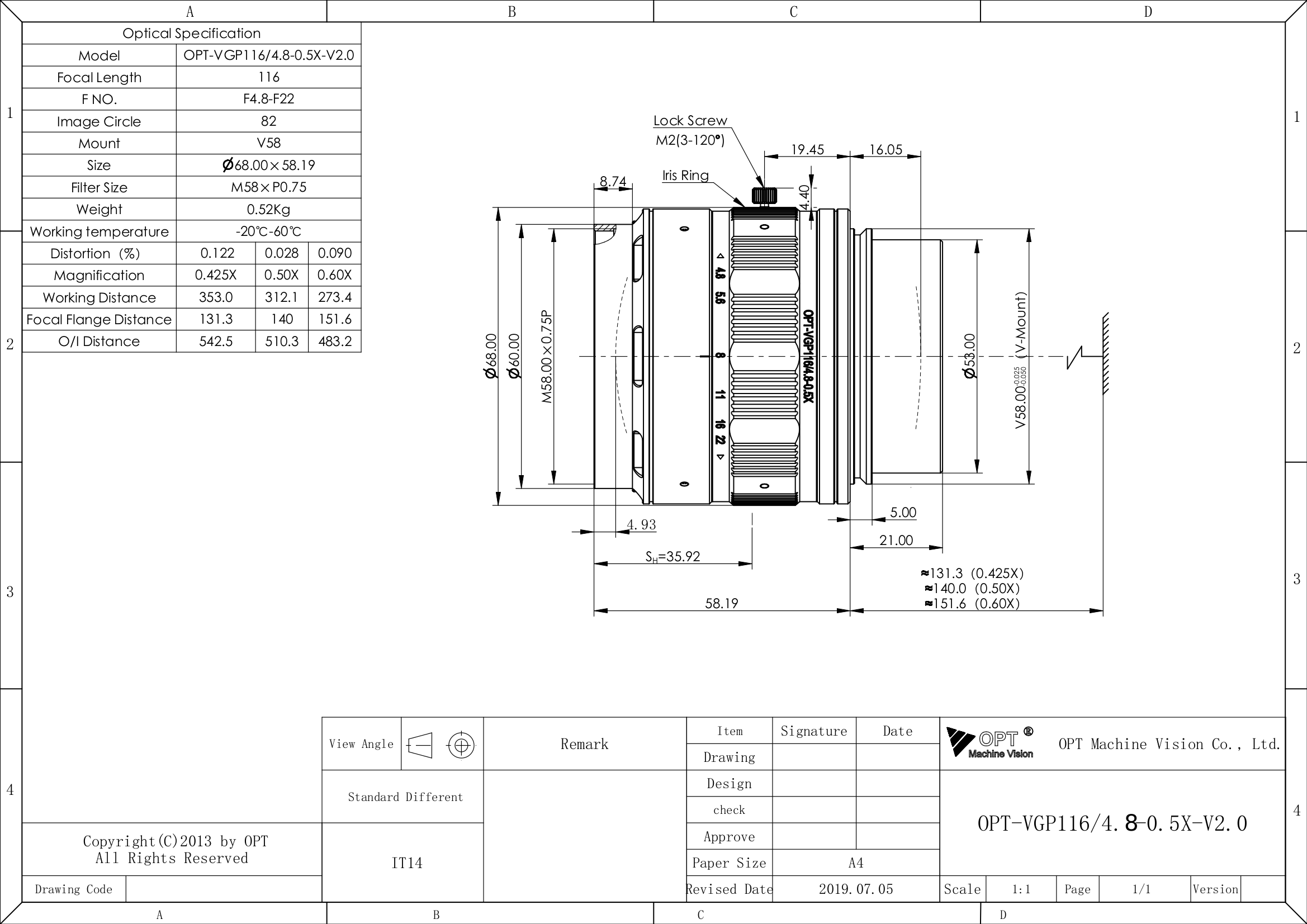

Dimensional Drawnig of the lens
