OPT-VGP116-3.2-1.5X

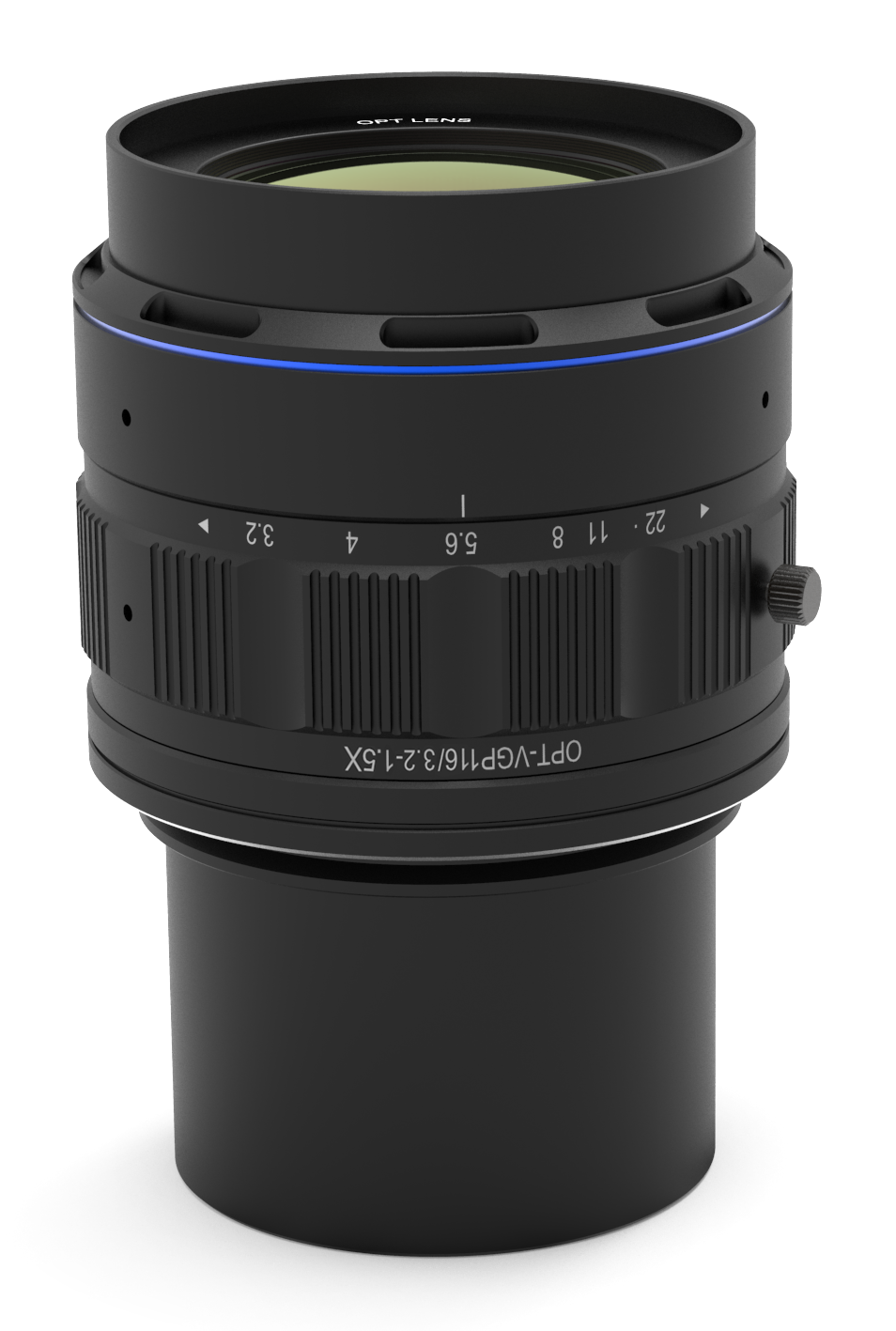

DescriptionGrampus Line Scan Lenses
Articlenumber (Eureca):06.23.0174
Origin: China
Manufacturer: OPT
Focal length116 mm
ApertureF3.2–F22
Image circle82 mm
MountV58 mount
Weight0.68 kg
Working Distance140.2 mm
Working Distance136.4 mm
Working Distance133.4 mm
Primary Magnification1.43 ×
Primary Magnification1.50 ×
Primary Magnification1.56 ×
Distortion0.058 %
Distortion0.018 %
Distortion0.023 %
Flange distance245.8 mm
Flange distance254.0 mm
Flange distance261.0 mm
Object to image distance446.2 mm
Object to image distance450.6 mm
Object to image distance454.3 mm
Filter threadM58×P0.75

To the product series

  • Large image circle: High resolution optical design; 82 mm image circle, compatible with (16k)/5 µm, (12k)/5 µm and (8k)/7 µm line scan cameras
  • Low distortion: Total distortion < 0.025 % (at primary magnification), Min. distortion as low as 0.01 %
  • Wide magnification range: 0.22 ×–1.56 ×

For more information, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Optical Technical Data of the Lens

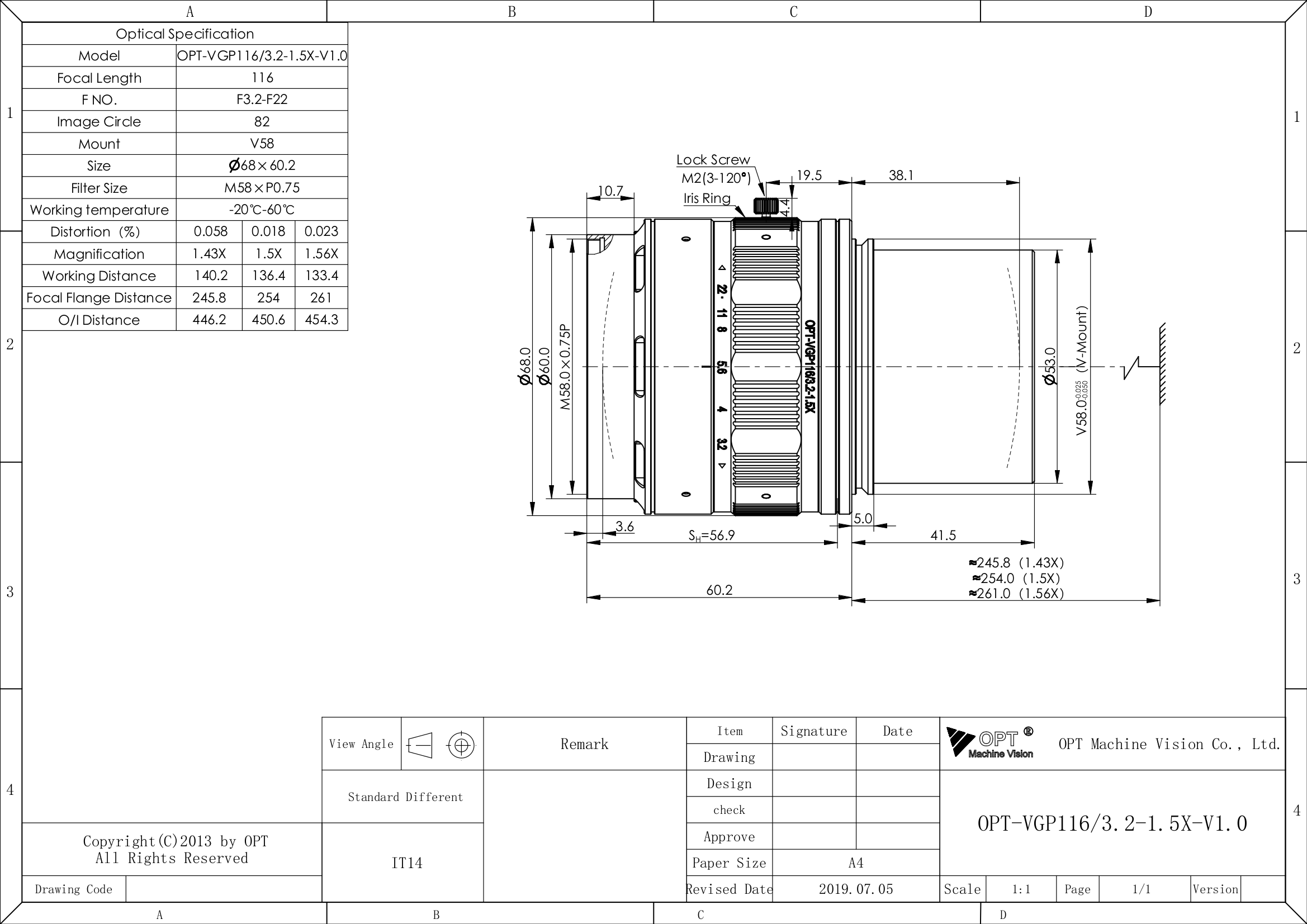

Dimensional Drawnig of the lens

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.31.2021
