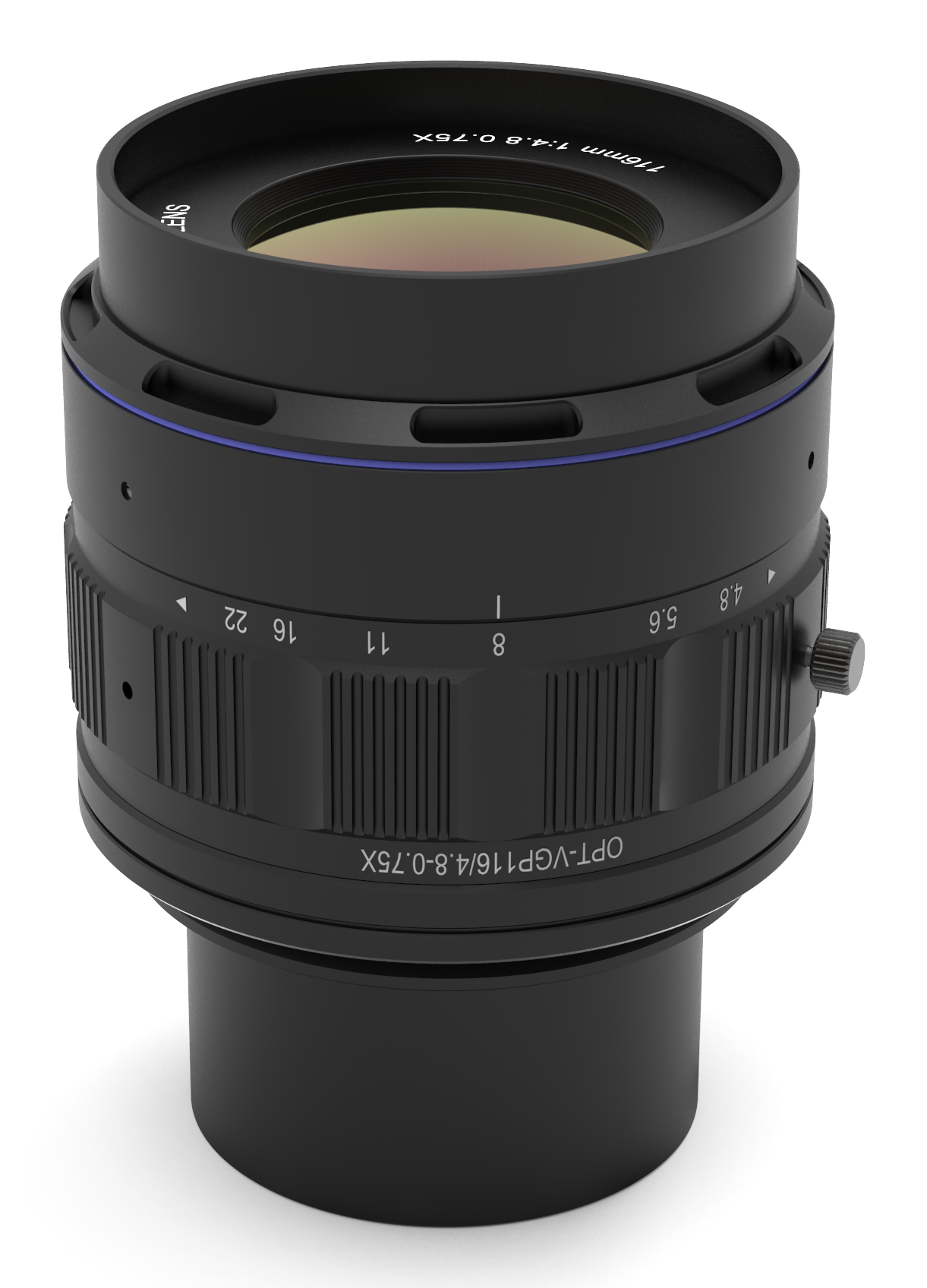

DescriptionGrampus Line Scan Lenses
Articlenumber (Eureca):06.23.0172
Origin: China
Manufacturer: OPT
Focal length116 mm
Image circle82 mm
MountV58 mount
Weight0.50 kg
Working Distance248.4 mm
Working Distance224.6 mm
Working Distance206.4 mm
Primary Magnification0.65 ×
Primary Magnification0.75 ×
Primary Magnification0.85 ×
Distortion0.08 %
Distortion0.01 %
Distortion0.04 %
Flange distance176.9 mm
Flange distance188.5 mm
Flange distance200.1 mm
Object to image distance485.4 mm
Object to image distance473.2 mm
Object to image distance466.6 mm
Filter threadM58×P0.75

To the product series

  • Large image circle: High resolution optical design; 82 mm image circle, compatible with (16k)/5 µm, (12k)/5 µm and (8k)/7 µm line scan cameras
  • Low distortion: Total distortion < 0.025 % (at primary magnification), Min. distortion as low as 0.01 %
  • Wide magnification range: 0.22 ×–1.56 ×

For more information, please refer to the datasheet.

Documents for download:

Datasheet of the lens series
Optical Technical Data of the Lens

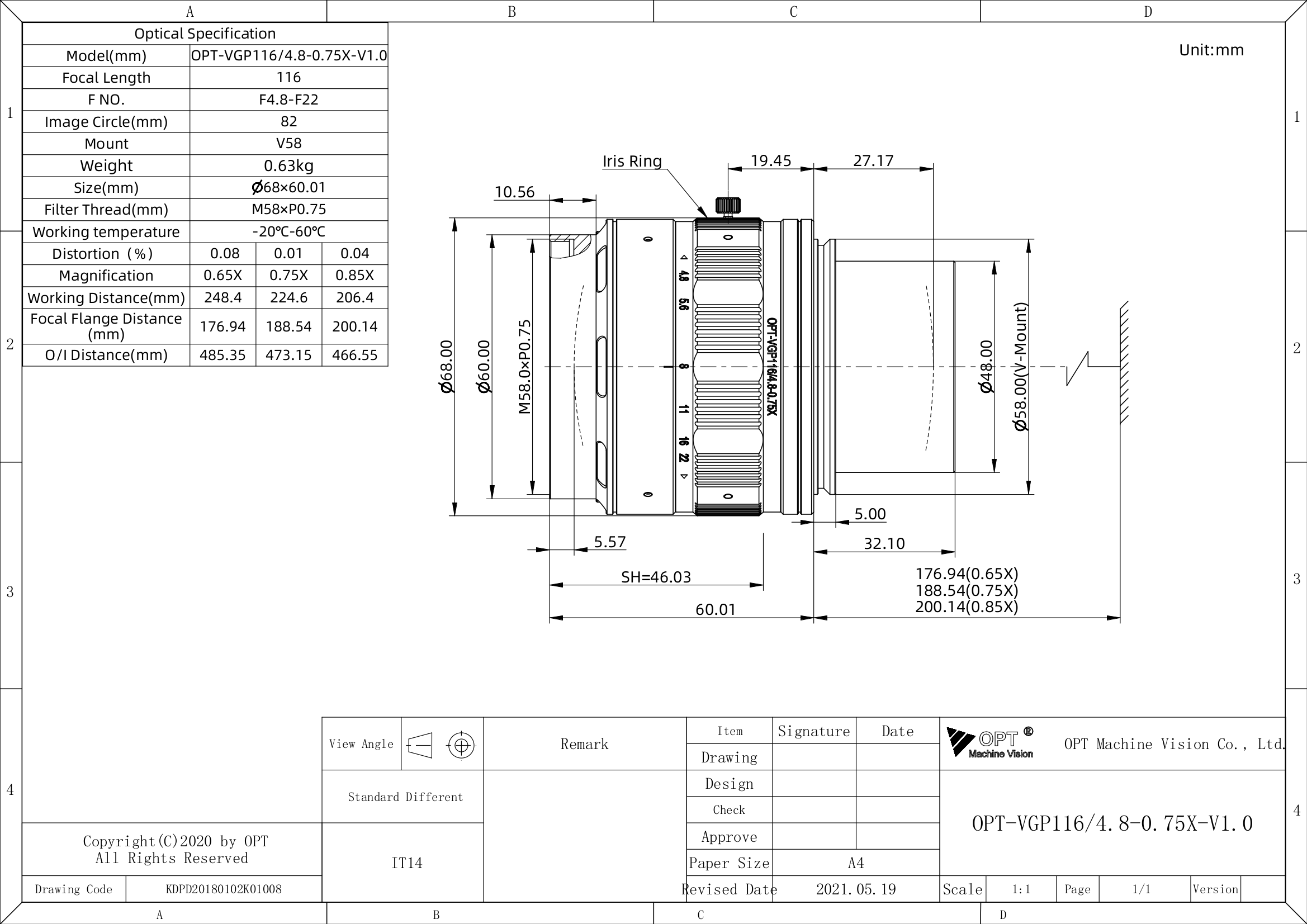

Dimensional Drawnig of the lens
