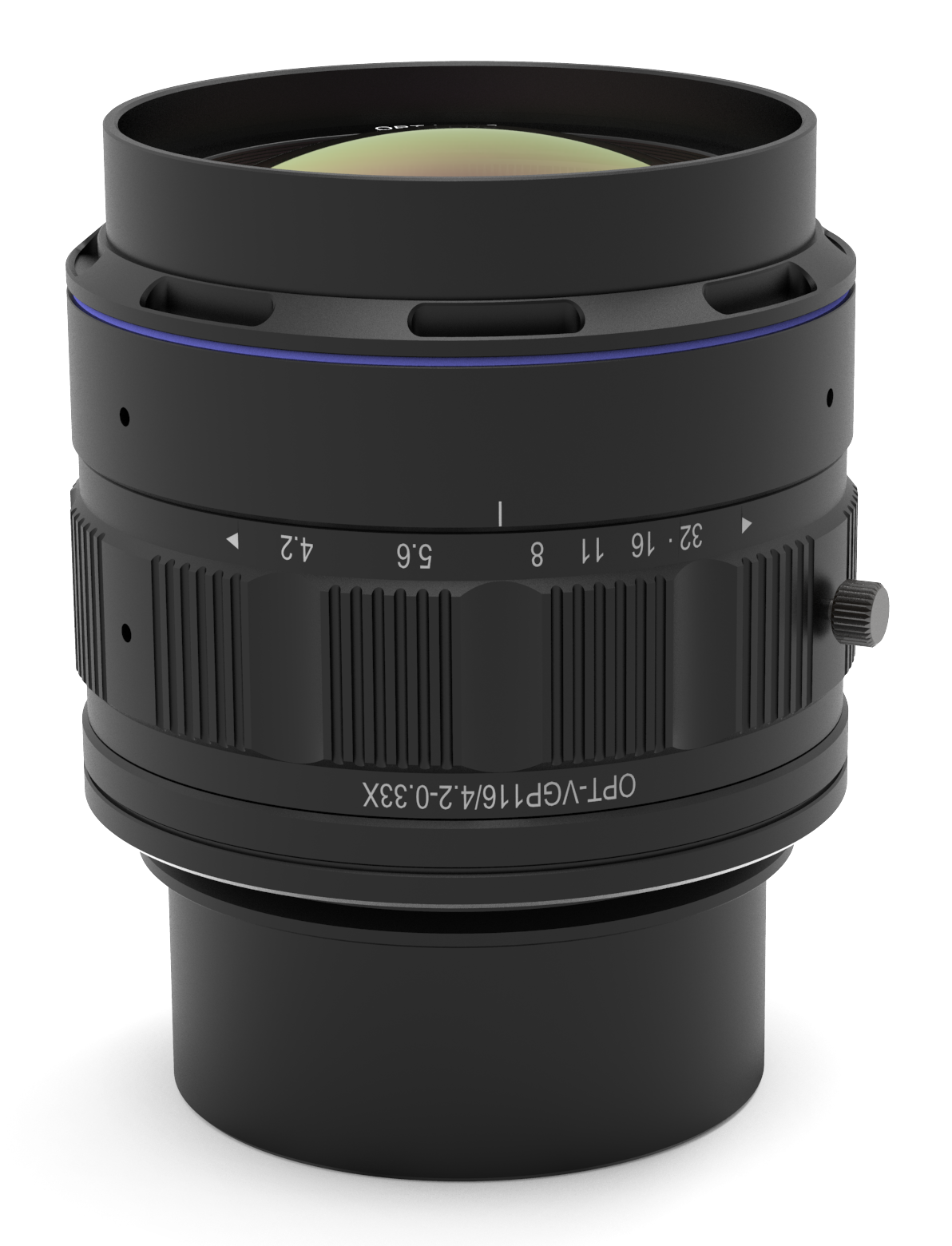

OPT-VGP116-4.2-0.33X

DescriptionGrampus Line Scan Lenses
Articlenumber (Eureca):06.23.0170
Origin: China
Manufacturer: OPT
Focal length116 mm
ApertureF4.2–F32
Image circle82 mm
MountV58 mount
Weight0.53 kg
Working Distance462.5 mm
Working Distance414.5 mm
Working Distance367.5 mm
Primary Magnification0.29 ×
Primary Magnification0.33 ×
Primary Magnification0.38 ×
Distortion0.085 %
Distortion0.010 %
Distortion0.107 %
Flange distance116.4 mm
Flange distance120.9 mm
Flange distance126.8 mm
Object to image distance639.5 mm
Object to image distance596.0 mm
Object to image distance554.8 mm
Filter threadM58×P0.75

To the product series

  • Large image circle: High resolution optical design; 82 mm image circle, compatible with (16k)/5 µm, (12k)/5 µm and (8k)/7 µm line scan cameras
  • Low distortion: Total distortion < 0.025 % (at primary magnification), Min. distortion as low as 0.01 %
  • Wide magnification range: 0.22 ×–1.56 ×

For more information, please refer to the datasheet.








Documents for download:

Datasheet of the lens series
Optical Technical Data of the Lens

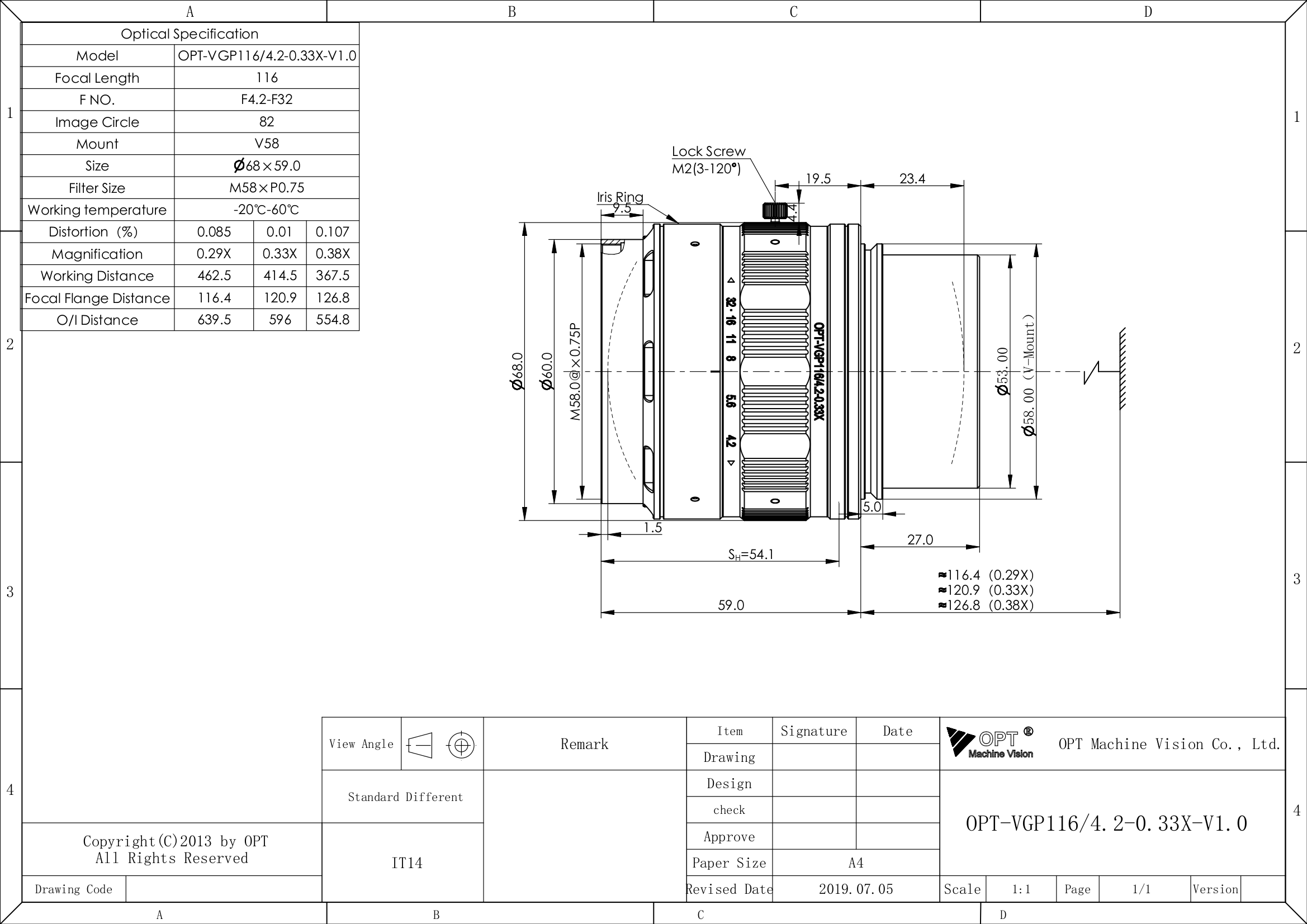

Dimensional Drawnig of the lens

Dimensions



Other versions of the article and matching products:
