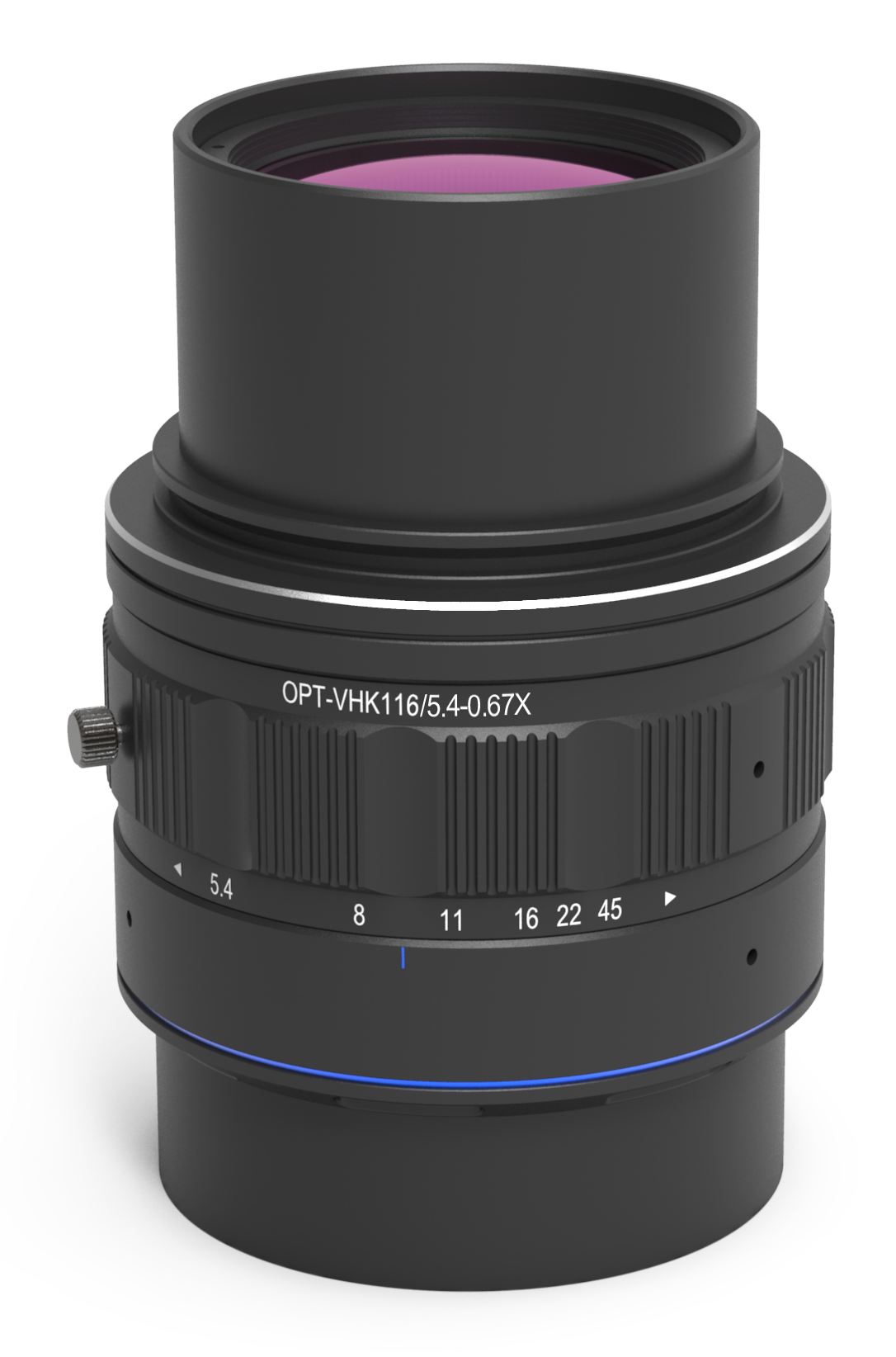

OPT-VHK116-5.4-0.67X

DescriptionHawk Line Scan Lenses
Articlenumber (Eureca):06.23.0167
Origin: China
Manufacturer: OPT
Focal length116 mm
ApertureF5.4–F45
Image circle63 mm
MountV58 mount
Weight0.68 kg
Working Distance219.58 mm
Working Distance212.58 mm
Working Distance204.58 mm
Primary Magnification0.64 ×
Primary Magnification0.67 ×
Primary Magnification0.7 ×
Distortion0.023 %
Distortion0.018 %
Distortion0.058 %
Flange distance168.0 mm
Flange distance171.0 mm
Flange distance174.8 mm
Object to image distance454.6 mm
Object to image distance450.6 mm
Object to image distance446.2 mm

To the product series

  • High resolution optical design, compatible to line scan camera with 7.0 µm pixel
  • Relative distortion is below 0.018 %
  • Broad spectrum range is from 400–900 nm and achromatic design
  • Suitable for 63 mm image circle and under of line and area scan camera

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Optical Technical Data of the Lens
Dimensional Drawnig of the lens

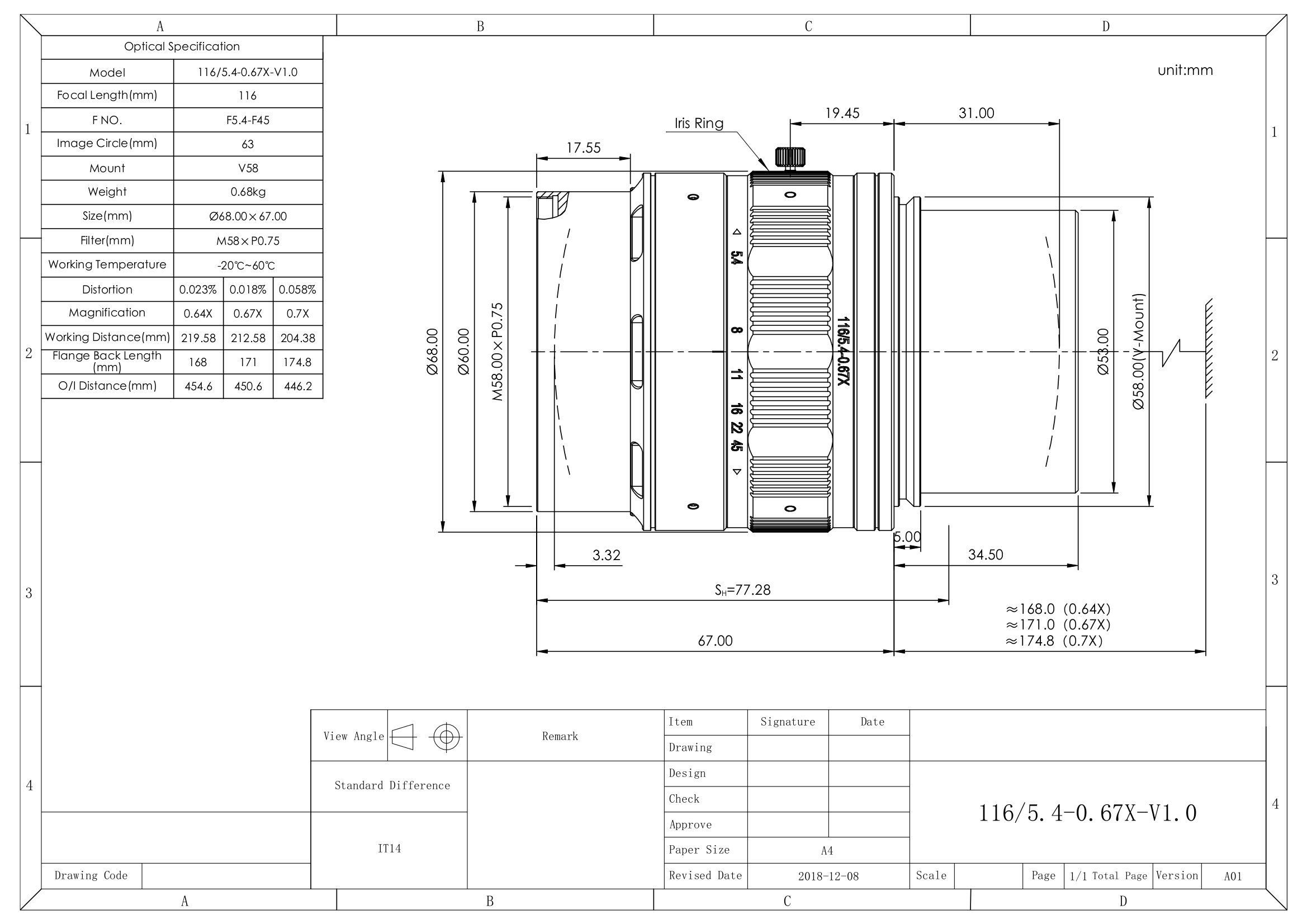

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 05.03.2021
