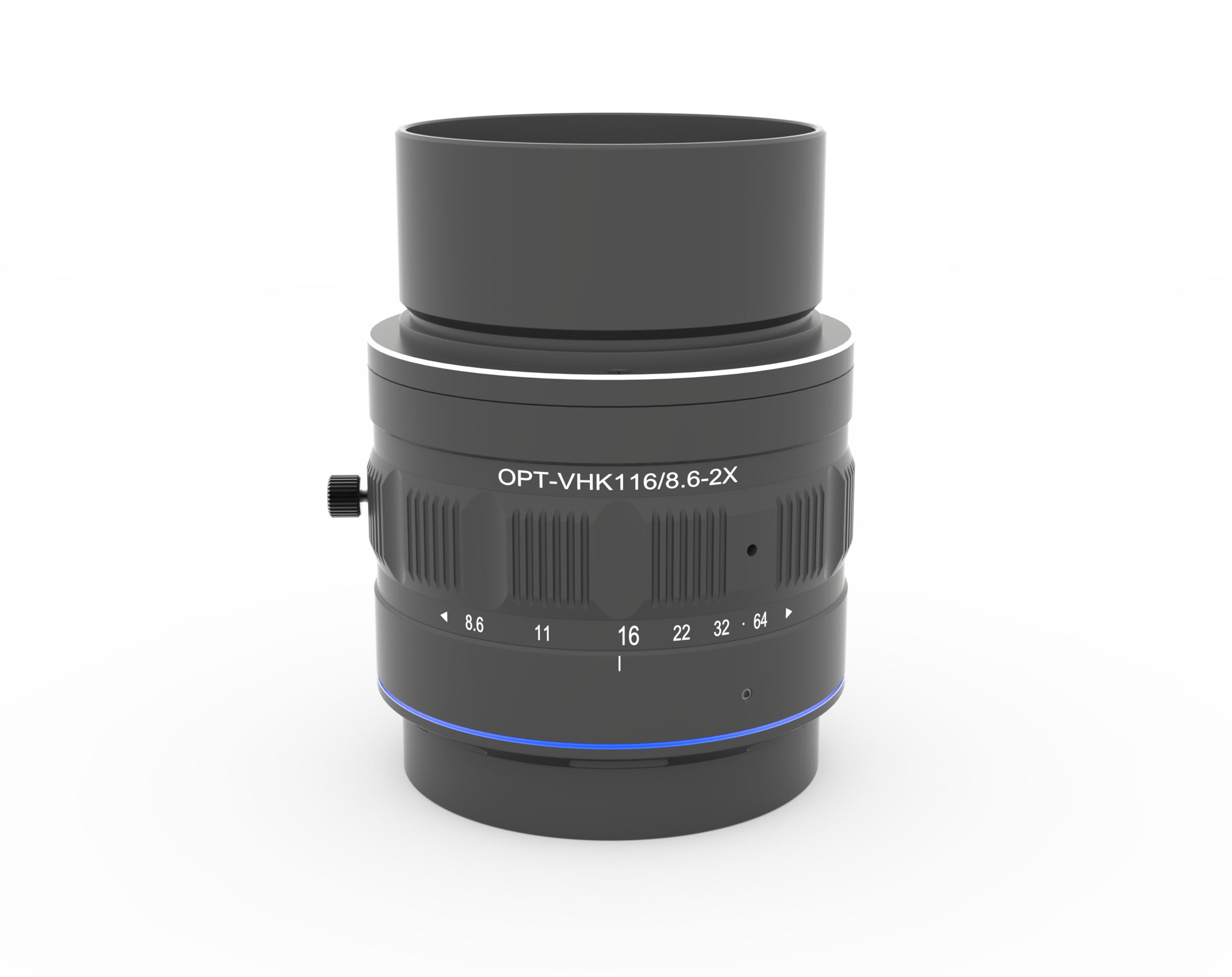

OPT-VHK116-8.6-2.0X

DescriptionHawk Line Scan Lenses
Articlenumber (Eureca):06.23.0139
Origin: China
Manufacturer: OPT
Focal length116 mm
ApertureF8.6–F64
Image circle126 mm
MountV58 mount
Weight0.63 kg
Working Distance100.2 mm
Working Distance97.14 mm
Working Distance94.5 mm
Primary Magnification1.9 ×
Primary Magnification2.0 ×
Primary Magnification2.1 ×
Distortion0.07 %
Distortion0.008 %
Distortion0.06 %
Flange distance293.3 mm
Flange distance305.0 mm
Flange distance316.1 mm
Object to image distance456.4 mm
Object to image distance465.0 mm
Object to image distance473.5 mm

To the product series

  • High resolution optical design, compatible to line scan camera with 7.0 µm pixel
  • Relative distortion is below 0.008 %
  • Broad spectrum range is from 400–900 nm and achromatic design
  • Suitable for 126 mm image circle and under of line and area scan camera

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Dimensional Drawnig of the lens



More pictures of the product:

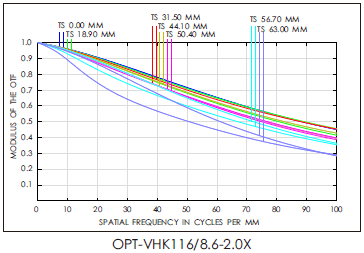

MTF

MTF

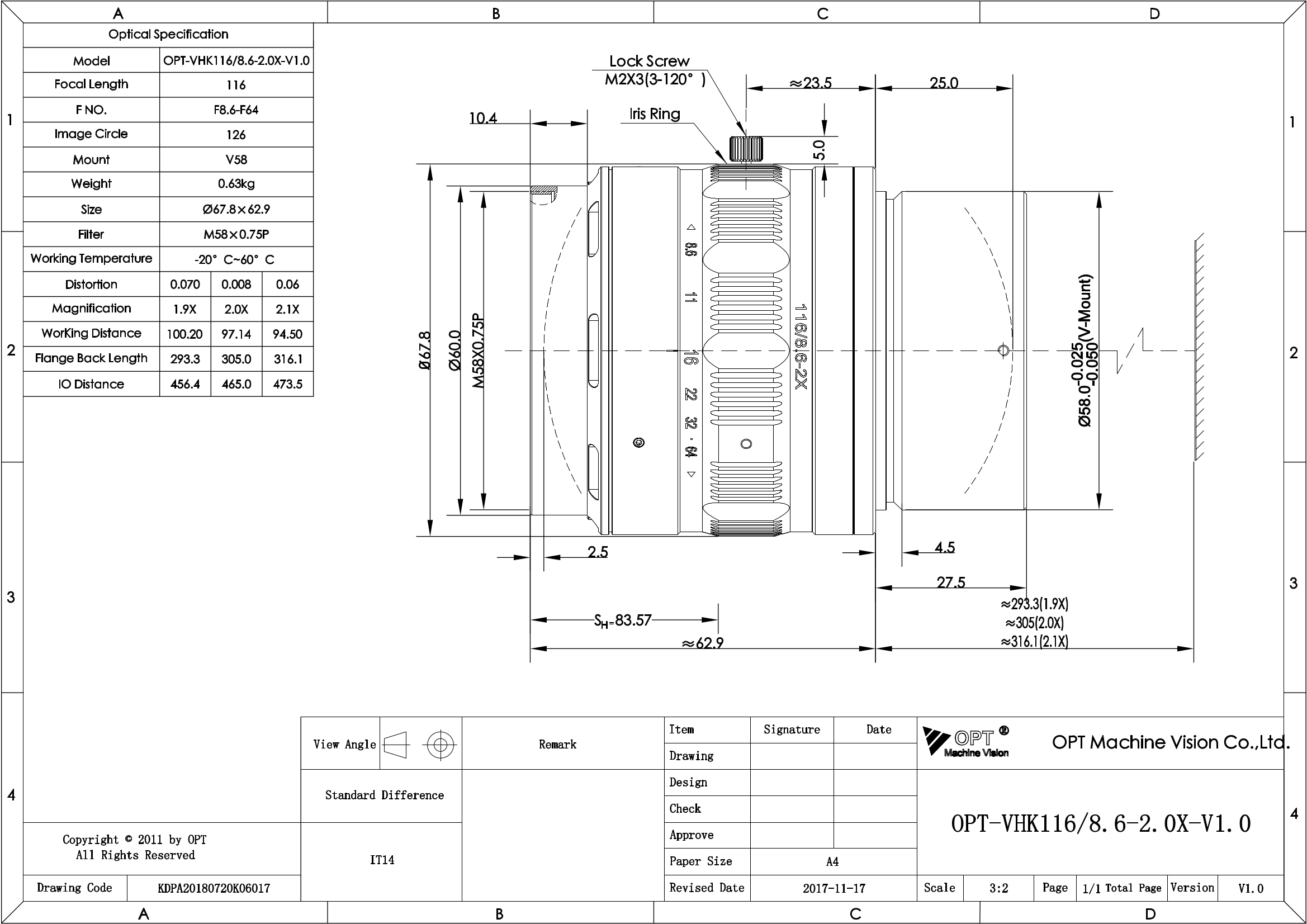

Dimensions

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 05.03.2021
