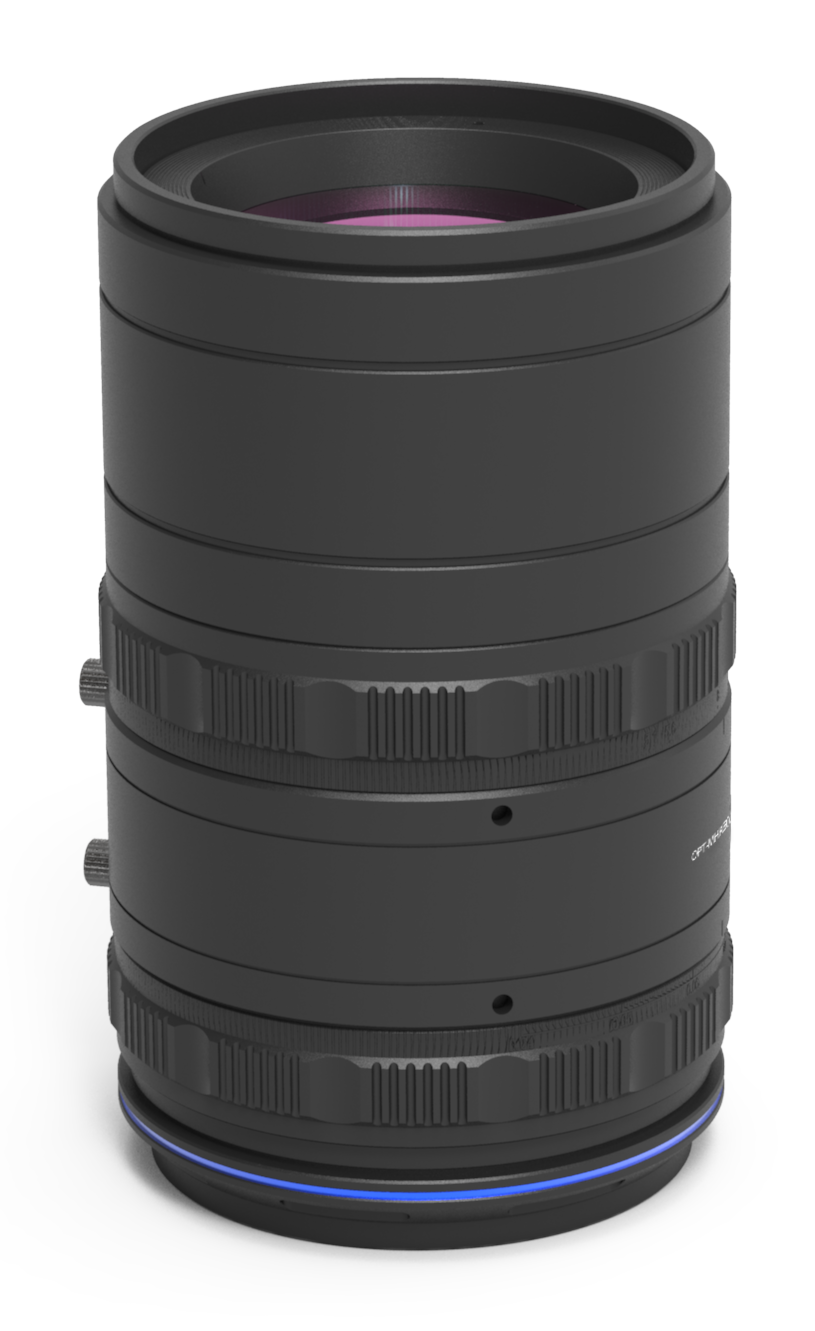

OPT-MHK60-5.1-0.07X

DescriptionHawk Line Scan Lenses
Articlenumber (Eureca):06.23.0168
Origin: China
Manufacturer: OPT
Focal length60 mm
ApertureF5.1–F22
Image circle63 mm
MountM72 mount
Weight1.06 kg
Working Distance3017 mm
Working Distance874 mm
Working Distance417 mm
Primary Magnification0.02 ×
Primary Magnification0.07 ×
Primary Magnification0.15 ×
Distortion0.15 %
Distortion0.22 %
Distortion0.28 %
Flange distance12 mm
Flange distance12 mm
Flange distance12 mm
Object to image distance3419.8 mm
Object to image distance1009.8 mm
Object to image distance557.6 mm

To the product series

  • High resolution optical design, compatible to line scan camera with 7.0 µm pixel
  • Relative distortion is below 0.008 %
  • Broad spectrum range is from 400–900 nm and achromatic design
  • Suitable for 126 mm image circle and under of line and area scan camera

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Optical Technical Data of the Lens
Dimensional Drawnig of the lens

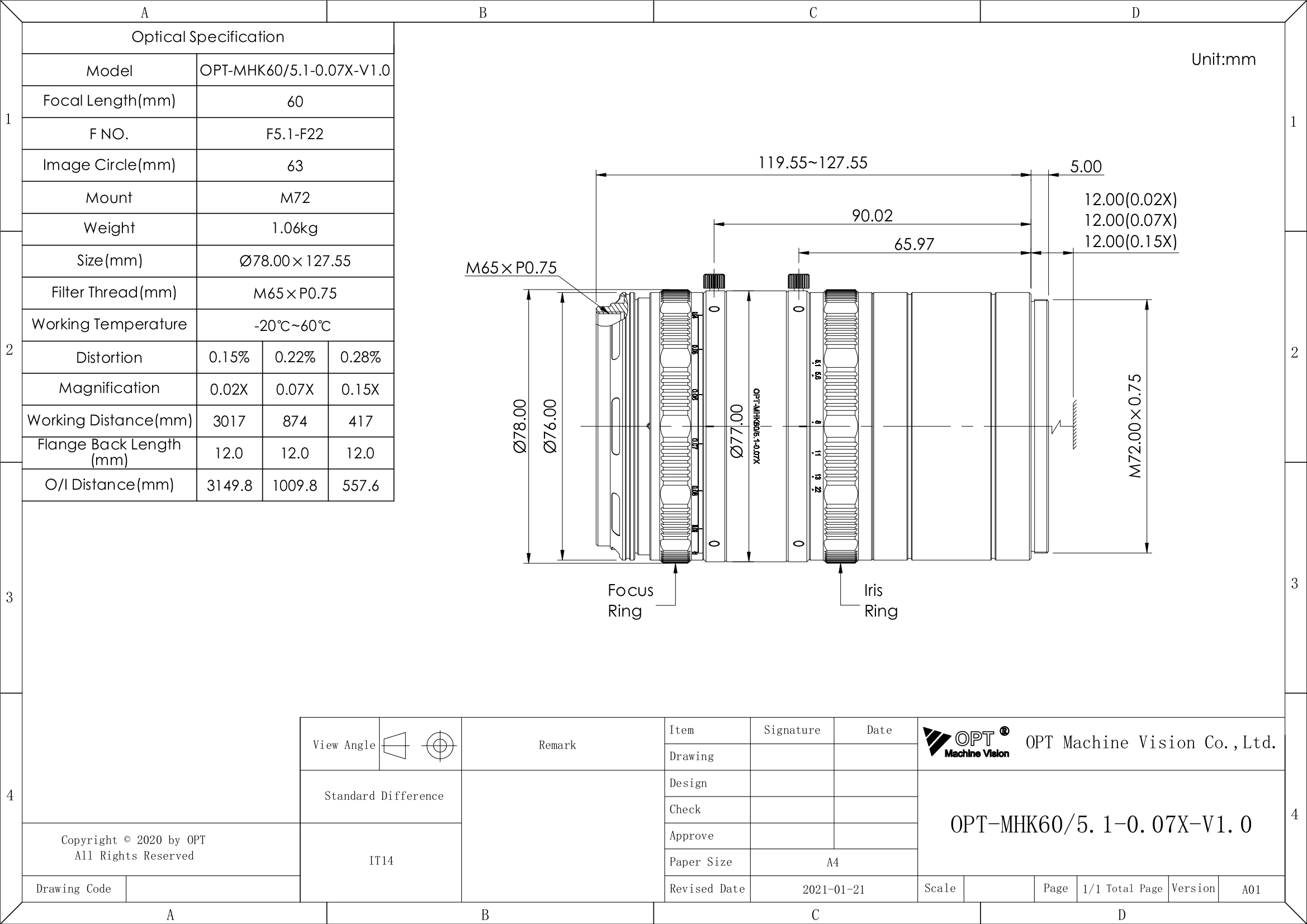

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 05.03.2021
