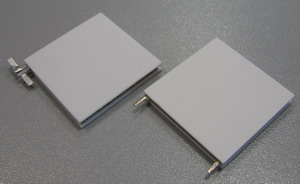

Standard Peltier Elements by Kryotherm

Our Kryotherm Peltier Elements with the designation TB... come from Russian production and may no longer be imported after the eighth sanctions package against Russia came into force on October 7th, 2022!

We are happy to check the availability of your desired elements in our warehouse or look for replacements. Please contact our sales by e-mail or use our inquiry form.

Kryotherm produces a wide range of thermoelectric coolers that can be used in industrial applications. With these highly effective TECs most of the problems in industrial cooling can be solved.

Thermo electric coolers for industrial applications face higher requirements in efficiency, reliability, production accuracy and field performance data.

Special TECs are produced for operation under temperature cycling conditions – rapid periodic (up to hundreds of thousands of cycles) changes of temperature of one or both sides of thermoelectric cooler in a wide (several tens of degrees) range of temperatures. Kryotherm also produces thermoelectric coolers designed for operation in high temperatures, pressures, humidity, and fine vacuum.

TypeI_max
[A]
Q_max
[W]
U_max
[V]
dT_max
[K]
A
[mm]
B
[mm]
C
[mm]
D
[mm]
H
[mm]
Design
TB-127-0.8-1.52.019.115.76925.025.025.025.03.81
TB-7-1.0-2.51.91.00.9708.08.08.08.04.81
TB-17-1.0-2.51.92.52.17011.511.511.511.54.81
TB-31-1.0-2.51.94.53.97015,015,015,015,04.81
TB-63-1.0-2.5(4)1.99.17.97015.030.015.030.04.84
TB-63-1.0-2.5(3)1.99.17.97030.015.030.015.04.83
TB-71-1.0-2.51.910.28.97023.023.023.023.04.81
TB-83-1.0-2.51.912.010.47022.019.022.019.04.83
TB-127-1.0-2.5(1)1.918.315.97030.030.030.030.04.81
TB-127-1.0-2.5(2)1.918.315.97030.030.030.034.04.82
TB-287-1.0-2.51.940.735.76940.040.040.040.04.81
TB-7-1.0-2.02.31.30.9708.08.08.08.04.31
TB-17-1.0-2.02.33.12.17011.511.511.511.54.31
TB-31-1.0-2.02.35.63.97014.814.814.814.84.31
TB-63-1.0-2.0(4)2.311.47.97015.030.015.030.04.34
TB-63-1.0-2.0(3)2.311.47.97030.015.030.015.04.33
TB-71-1.0-2.02.312.88.97023.023.023.023.04.31
TB-83-1.0-2.02.314.910.47022.019.022.019.04.33
TB-127-1.0-2.0(1)2.322.915.97030.030.030.030.04.31
TB-127-1.0-2.0(2)2.322.915.97030.030.030.034.04.32
TB-127-1.0-1.8(1)2.624.915.76930.030.030.030.04.11
TB-127-1.0-1.8(2)2.624.915.76930.030.030.034.04.12
TB-7-1.0-1.53.11.70.9698.08.08.08.03.81
TB-17-1.0-1.53.14.02.16911.511.511.511.53.81
TB-31-1.0-1.53.17.33.86915.015.015.015.03.81
TB-63-1.0-1.5(4)3.114.87.86915.030.015.030.03.84
TB-63-1.0-1.5(3)3.114.87.86930.015.030.015.03.83
TB-71-1.0-1.53.116.78.86923.023.023.023.03.81
TB-83-1.0-1.53.119.510.36922.019.022.019.03.83
TB-127-1.0-1.5(1)3.129.915.76930.030.030.030.03.81
TB-127-1.0-1.5(2)3.129.915.76930.030.030.034.03.82
TB-287-1.0-1.53.167.835.76940.040.040.040.03.81
TB-7-1.0-1.33.61.90.9698.08.08.08.03.61
TB-17-1.0-1.33.64.62.16911.511.511.511.53.61
TB-31-1.0-1.33.68.43.86915.015.015.015.03.61
TB-63-1.0-1.3(4)3.617.17.86915.030.015.030.03.64
TB-63-1.0-1.3(3)3.617.17.86930.015.030.015.03.63
TB-71-1.0-1.33.619.38.86923.023.023.023.03.61
TB-83-1.0-1.33.622.510.36922.019.022.019.03.63
TB-127-1.0-1.3(1)3.634.515.76930.030.030.030.03.61
TB-127-1.0-1.3(2)3.634.515.76930.030.030.034.03.62
TB-287-1.0-1.33.678.235.76940.040.040.040.03.61
TB-63-1.0-1.15(4)4.019.37.86915.030.015.030.03.44
TB-63-1.0-1.15(3)4.019.37.86930.015.030.015.03.43
TB-32-1.0-0.85.814.13.96840.06.040.06.03.13
TB-45-1.0-0.8(4)5.920.05.66836.06.036.06.03.14
TB-127-1.0-0.8(1)5.856.015.76930.030.030.030.03.11
TB-127-1.0-0.85.856.015.76930.030.030.034.03.12
TB-195-1.0-0.85.886.024.16850.025.050.025.03.13
TB-119-1.0-0.67.770.014.86824.024.024.026.52.152
TB-71-1.4-3.1752.916.59.17230.030.030.030.05.61
TB-127-1.4-2.9(1)3.232.316.37240.040.040.040.05.21
TB-127-1.4-2.9(2)3.232.316.37240.040.040.044.05.22
TB-7-1.4-2.53.72.10.97210.010.010.010.04.91
TB-17-1.4-2.53.75.02.27215.015.015.015.04.91
TB-31-1.4-2.53.79.14.07220.020.020.020.04.91
TB-48-1.4-2.53.613.56.07035.020.035.020.04.93
TB-63-1.4-2.5(4)3.718.68.17220.040.020.040.04.94
TB-63-1.4-2.5(3)3.718.68.17240.020.040.020.04.93
TB-71-1.4-2.53.720.99.17230.030.030.030.04.91
TB-99-1.4-2.5(3)3.627.912.47040.020.040.020.04.93
TB-99-1.4-2.5(4)3.627.912.47020.040.020.040.04.94
TB-127-1.4-2.5(1)3.737.416.37240.040.040.040.04.81
TB-127-1.4-2.5(2)3.737.416.37240.040.040.044.04.82
TB-63-1.4-2.0(4)4.622.27.97020.040.020.040.04.44
TB-63-1.4-2.0(3)4.622.27.97040.020.040.020.04.43
TB-127-1.4-2.0(1)4.645.015.97040.040.040.040.04.31
TB-127-1.4-2.0(2)4.645.015.97040.040.040.044.04.32
TB-161-1.4-2.0(1)4.657.020.17040.040.040.040.04.31
TB-161-1.4-2.0(2)4.657.020.17040.040.040.044.04.32
TB-71-1.4-1.85.127.98.97030.030.030.030.04.21
TB-7-1.4-1.56.13.30.96910.010.010.010.04.01
TB-17-1.4-1.56.18.02.17015.015.015.015.04.01
TB-31-1.4-1.56.114.63.97020.020.020.020.04.01
TB-35-1.4-1.5(4)6.116.44.47015.030.015.030.04.04
TB-35-1.4-1.5(3)6.116.44.47030.015.030.015.04.03
TB-63-1.4-1.5(4)6.129.77.97020.040.020.040.04.04
TB-63-1.4-1.5(3)6.129.77.97040.020.040.020.04.03
TB-71-1.4-1.56.133.48.97030.030.030.030.04.01
TB-99-1.4-1.5(4)6.146.012.47020.040.020.040.04.04
TB-99-1.4-1.5(3)6.146.012.47040.020.040.020.04.03
TB-127-1.4-1.5(1)6.160.015.97040.040.040.040.03.91
TB-127-1.4-1.5(2)6.160.015.97040.040.040.044.03.92
TB-161-1.4-1.5(1)5.766.318.87040.040.040.040.03.91
TB-161-1.4-1.5(2)5.766.318.87040.040.040.044.03.92
TB-241-1.4-1.56.1113.030.07055.055.055.059.04.02
TB-127-1.4-1.2(1)7.675.015.97040.040.040.040.03.51
TB-127-1.4-1.2(2)7.675.015.97040.040.040.044.03.52
TB-7-1.4-1.157.94.20.96910.010.010.010.03.61
TB-17-1.4-1.157.910.22.16915.015.015.015.03.61
TB-31-1.4-1.157.918.63.86920.020.020.020.03.61
TB-35-1.4-1.15(4)7.921.04.36915.030.015.030.03.64
TB-35-1.4-1.15(3)7.921.04.36930.015.030.015.03.63
TB-63-1.4-1.15(4)7.937.97.86920.040.020.040.03.64
TB-63-1.4-1.15(3)7.937.97.86940.020.040.020.03.63
TB-71-1.4-1.157.943.08.86930.030.030.030.03.61
TB-127-1.4-1.15(1)-H3.67.976.015.76940.040.040.040.03.61
TB-127-1.4-1.15(1)-H3.47.976.015.76940.040.040.040.03.41
TB-127-1.4-1.15(2)7.976.015.76940.040.040.044.03.62

Version: 03-06-2017
TypeI_max
[A]
Q_max
[W]
U_max
[V]
dT_max
[K]
A
[mm]
B
[mm]
C
[mm]
D
[mm]
H
[mm]
Design
TB-127-1.4-1.15(1)7.976.015.76948.048.048.048.03.61
TB-35-1.4-1.05(4)8.623.04.36915.030.015.030.03.44
TB-35-1.4-1.05(3)8.623.04.36930.015.030.015.03.43
TB-99-1.4-1.05(4)8.665.012.36920.040.020.040.03.44
TB-99-1.4-1.05(3)8.665.012.36940.020.040.020.03.43
TB-127-1.4-1.05(1)8.684.015.76940.040.040.040.03.31
TB-127-1.4-1.05(2)8.684.015.76940.040.040.044.03.32
TB-49-1.4-0.811.342.06.16920.020.020.020.03.21
TB-99-1.4-0.8(4)11.386.012.36920.040.020.040.03.24
TB-99-1.4-0.8(3)11.386.012.36940.020.040.020.03.23
TB-7-2.0-2.57.64.20.97215.015.015.015.04.81
TB-17-2.0-2.57.610.22.27222.022.022.022.04.81
TB-31-2.0-2.57.618.74.07230.030.030.030.04.81
TB-71-2.0-2.57.643.09.17240.040.040.040.04.81
TB-127-2.0-2.5(1)-48x487.676.016.37248.048.048.048.04.81
TB-127-2.0-2.5(1)-55x557.676.016.37255.055.055.055.04.81
TB-127-2.0-2.5(1)-62x627.676.016.37262.062.062.062.04.81
TB-127-2.0-1.65(1)-48x4811.3111.015.97048.048.048.048.04.01
TB-127-2.0-1.65(1)-55x5511.3111.015.97055.055.055.055.04.01
TB-127-2.0-1.65(1)-62x6211.3111.015.97062.062.062.062.04.01
TB-7-2.0-1.512.46.70.97015.015.015.015.03.81
TB-17-2.0-1.512.416.32.17022.022.022.022.03.81
TB-31-2.0-1.512.429.83.97030.030.030.030.03.81
TB-71-2.0-1.512.468.08.97040.040.040.040.03.81
TB-127-2.0-1.5(1)-48x4812.4122.015.97048.048.048.048.03.81
TB-127-2.0-1.5(1)-55x5512.4122.015.97055.055.055.055.03.81
TB-127-2.0-1.5(1)-62x6212.4122.015.97062.062.062.062.03.81
TB-71-2.0-1.1516.187.08.86940.040.040.040.03.41
TB-127-2.0-1.15(1)-48x4816.1156.015.76948.048.048.048.03.41
TB-127-2.0-1.15(1)-55x5516.1156.015.76955.055.055.055.03.41
TB-127-2.0-1.15(1)-62x6216.1156.015.76962.062.062.062.03.41
TB-127-2.0-1.05(1)-48x4817.6171.015.76948.048.048.048.03.31
TB-127-2.0-1.05(1)-55x5517.6171.015.76955.055.055.055.03.31
TB-127-2.0-1.05(1)-62x6217.6171.015.76962.062.062.062.03.31
TB-199-2.0-0.920.6310.024.66962.062.062.062.03.21
TB-127-2.2-1.1519.5189.015.76955.055.055.059.03.42
TB-127-2.2-0.9523.4223.015.56855.055.055.059.03.22
TB-31-2.8-1.524.458.03.97040.040.040.040.04.11
TB-32-2.8-1.524.460.04.07040.040.040.040.04.01
TB-31-5.0-1.864.0149.03.86855.055.055.055.05.31
TB-31-5.0-1.577.0178.03.86855.055.055.055.05.01
TB-159-1.0-0.85.869.019.66941.732.741.732.73.24
TB-111-2.0-0.823.1196.013.76840.035.040.035.03.14
TB-23-1.0-1.33.66.22.856930.05.030.05.03.63

Version: 03-06-2017

Further modifications are available on request, in addition to the basic types. We would be pleased to advise you on the exact options available for a specific element. Examples are:

  • different maximum temperatures of 120, 150 or 200 degrees Celsius
  • Metallization on hot and/or cold side
  • Cycle resistant elements
  • special seals
  • specific cable lengths or types

According to the RoHS regulations, the peltier elements manufactured by Kryotherm do not contain lead or other prohibited materials.


Here you can easily ask a question or inquiry about our products:

Product inquiry

Request for:
