| Description | industrial standard peltier element |
| Articlenumber (Eureca): | 03.01.0939 |
| Origin: | russia |
| Manufacturer: | Kyrotherm |
| Dimension A | 40.0 mm |
| Dimension B | 40.0 mm |
| Dimension C | 40.0 mm |
| Dimension D | 40.0 mm |
| Dimension H | 3.8 mm |
| max. current (I_max) | 12.4 A |
| max. cooling power (Q_max) | 68.0 W |
| max. Voltage (U_max) | 8.9 V |
| max. temp. difference (dT_max) | 70 K |
| Internal resistance (R_ac) | 0.520 Ohm |
| Design No. | 1 |

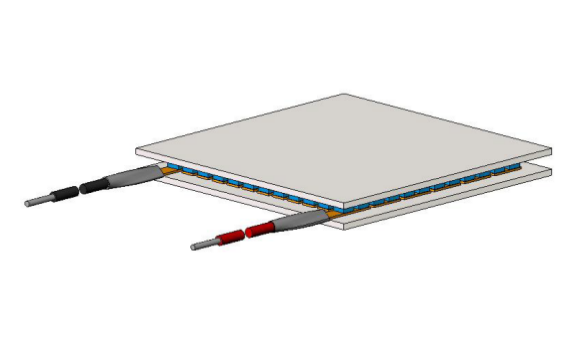

Dimensions of the peltier element (for values see above)
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 01.17.2020
