R200-0805-01T-75S-R27-L14



DesignationSocket by Andon
Article number (Eureca)01.25.0074
OriginUSA
ManufacturerAndon
Number of contacts 5
Isolation material L14
Surface Terminal/Contact R27
Mounting THT
Terminal type 75S

Request samples or a quotation (including full datasheet) for this socket



Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions
Used terminal type (75S)

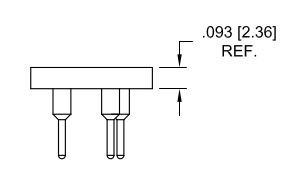

Side view



This socket can be used for the following devices:

Micro-Hybrid:PS2x1C2-A-S1.5, PS2x1C8-A-S1.5
Dexter:ST150 DUAL, ST150R DUAL, ST120 DUAL, ST120 TO-5, DR26, ST60 DUAL, ST60R DUAL, DR34
First_Sensor:501254, 501256
Infratec:LIM-162, LIM-253, LIM-262, LIM-262-#, LIM-253-#
Luna:PDB-C203, SD085-23-21-021, SD118-23-21-021



Similar sockets with other terminals

R200-0805-01T-265S-R15-L14, SMD
R200-0805-01T-265S-R27-L14, SMD
