R670-0804-02N-433E-R27-L14



DesignationSocket by Andon
Article number (Eureca)01.22.0532
OriginUSA
ManufacturerAndon
Number of contacts 4
Isolation material L14
Surface Terminal/Contact R27
Mounting THT
Terminal type 433E

Request samples or a quotation (including full datasheet) for this socket



Available drawings for this socket (Click to enlarge in a new tab)

Socket dimensions
Used terminal type (433E)

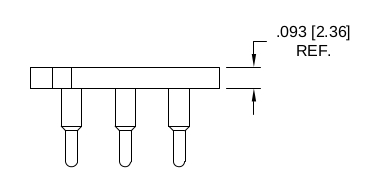

Side view



This socket can be used for the following devices:

SemeaTech:HF-50 SENSOR (7 SERIES)
Alphasense:CL2-B1, CO-B4, CO-BF, CO-BX, ETO-B1, H2-BF, H2S-B1, H2S-B4, H2S-BE, H2S-BH, HCL-B1, HCN-B1, NH3-B1, NO2-B4, NO-B4, NO2-B1, 03-B4, PH3-B1, PH3-BE, SO2-B4, SO2-BE, SO2-BF
DD_Scientific:S+7CO, S+7H2S, S+7H2SHO, S+7ETO, S+7NH3
Membrapor:C2H4/C-10, C2H4/C-200, C2H4/C-1500, C2H4/C-2000, CH2O/C-10, CI2/C-20, CI2/C-200, CI2/C-5000, CO/C-1000, CO/CF-200, CO/CF-500, CO/CF-1000, CO/CF-2000, CO/CFA-200, CO/CFA-1000, CO/CFA-10000, ETO/C-20, H2/C-1000, H2/C-2000, H2/C-5000, H2/C-20000, H2/CA-1000, H2/CB-1000, H2/CT-40000, H2O2/CB-100, H2O2/CB-500, H2S/C-50, H2S/C-200, H2S/C-1000, H2S/C-2000, H2S/C-5000, H2S/CD-5000, HCI/C-20, HCI/C-200, HCI/C-1000, HCI/C-3000, HCN/C-100, NH3/CR-200, NH3/CR-1000, NH3/CR-5000, NH3/MR-1000, NO2/C-20, NO/C-25, NO/C-100, NO/CF-100, NO/CF-2000, O3/C-5, O3/C-100, 03/C-200, O3/C-1000, O3/C-5000, PH3/C-5, PH3/C-500, PH3/C-1000, PH3/C-2000, SiH4/C-20, SiH4/C-50, SO2/C-20, SO2/C-100, SO2/C-2000, SO2/CF-20, SO2/CF-100
MRB_Scientific:S+7CO, 2 S+7ETO, 2 S+7H2S, 2 S+7NH3
SGX_Sensortech:SGX-7H2S, SGX-7NH3, SGX-7CO
Solidsense:7 Series
SensorIC:0139-021-30079, 0139-031-30079, 0141-024-30079, 0141-124-30079, 0145-034-30079, 0145-134-30079, 0248-024-30079, 0248-034-30079, 0250-134-30079, 0361-034-30079, 0364-034-30079, 0436-032-30079, 0441-032-30079, 0731-031-30079, 0941-031-30079, 1139-034-30079, 1336-932-30079, 1441-134-30079, 1531-031-30079, 1531-231-30079, 1639-221-30079, 1639-231-30079, 1731-031-30079, 1845-031-30079, 1845-932-30079, 1854-932-30079, 1858-932-30079, 1945-034-30079, 2131-021-30079, 2241-032-30079, 2731-031-30079, 2731-331-30079



Similar sockets with other terminals

R670-0804-02N-285E-R27-L14, SMD
