OPT-MCT40-4.5-0.08X

DescriptionColoretto Series Line Scan Lenses
Articlenumber (Eureca):06.23.0165
Origin: China
Manufacturer: OPT
Focal length40 mm
Aperture4.5–22
Image circle60 mm
MountM42 / M58 / M72
Weight0.53 kg
Working Distance4146.4 mm
Working Distance522.4 mm
Working Distance162.7 mm
Primary Magnification0.01 ×
Primary Magnification0.08 ×
Primary Magnification0.26 ×
Distortion0.25 %
Distortion0.22 %
Distortion1.60 %
Flange distance46.5 mm
Flange distance46.5 mm
Flange distance46.5 mm
Object to image distance4250.3 mm
Object to image distance629.3 mm
Object to image distance277.0 mm

To the product series

  • High resolution optical design, compatible to line scan camera with 7 µm pixel
  • Relative distortion is below 0.6 %
  • Broad spectrum range is from 400–700 nm and achromatic design
  • Suitable for up to 60 mm image circle of line and area scan camera

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Dimensional Drawnig of the lens
Optical Technical Data of the Lens

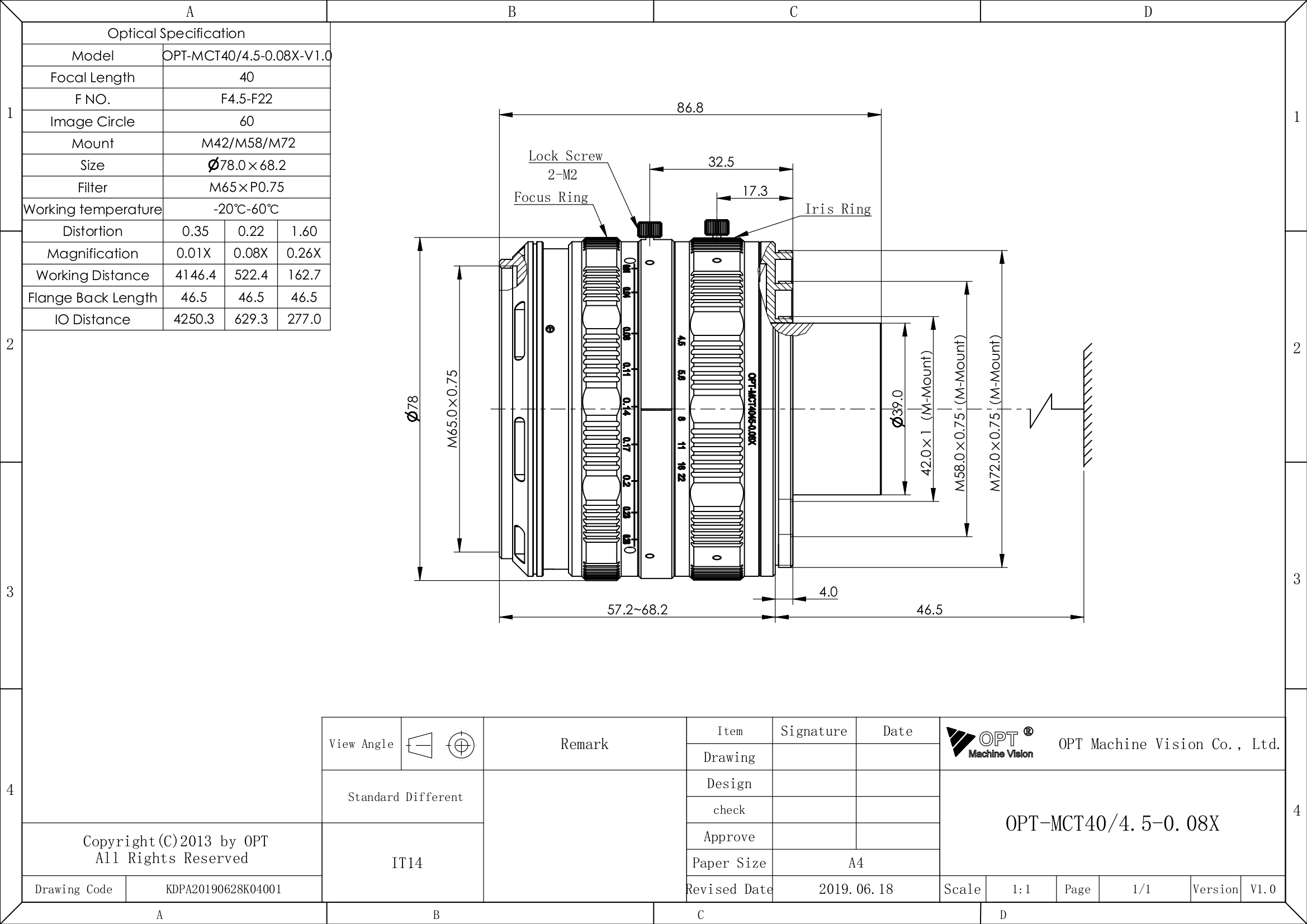

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 04.29.2021
