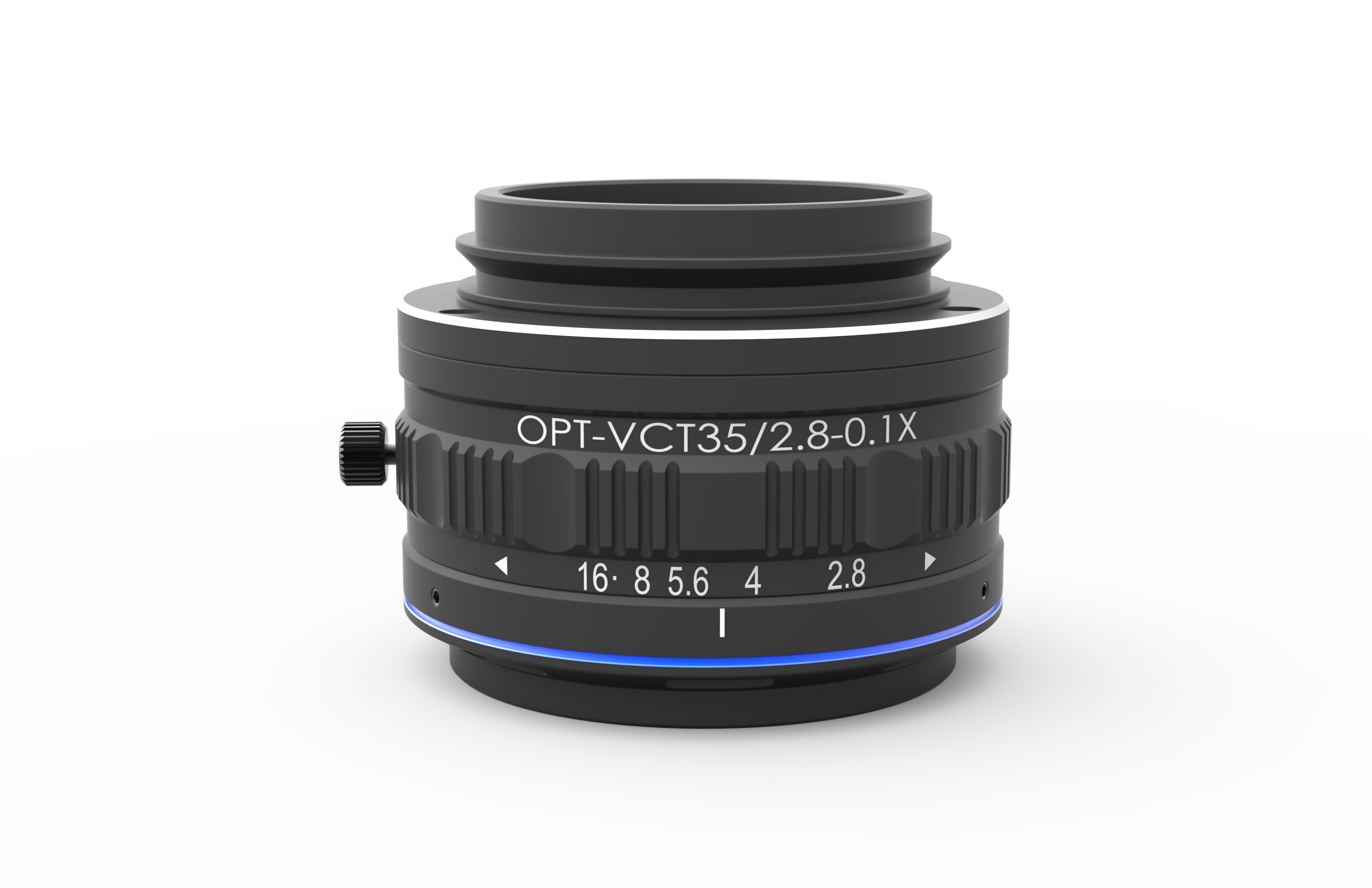

OPT-VCT35-2.8-0.10X

DescriptionColoretto Series Line Scan Lenses
Articlenumber (Eureca):06.23.0002
Origin: China
Manufacturer: OPT
Focal length35 mm
Aperture2.8–16
Image circle30 mm
MountV38
Weight0.12 kg
Working Distance891 mm
Working Distance366 mm
Working Distance126 mm
Primary Magnification0.04 ×
Primary Magnification0.10 ×
Primary Magnification0.33 ×
Distortion0.50 %
Distortion0.07 %
Distortion0.90 %
Flange distance21.3 mm
Flange distance23.4 mm
Flange distance30.8 mm
Object to image distance941.7 mm
Object to image distance418.8 mm
Object to image distance186.6 mm

To the product series

  • High resolution optical design, compatible to line scan camera with 7 µm pixel
  • Relative distortion is below 0.6 %
  • Broad spectrum range is from 400–700 nm and achromatic design
  • Suitable for up to 30 mm image circle of line and area scan camera

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Dimensional Drawnig of the lens



More pictures of the product:

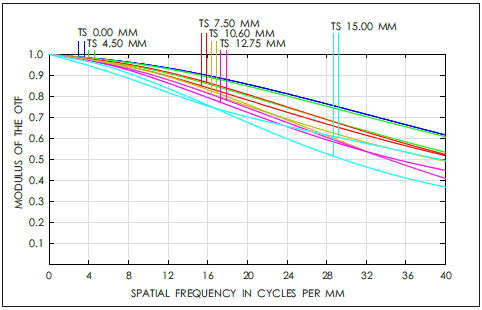

MTF

MTF

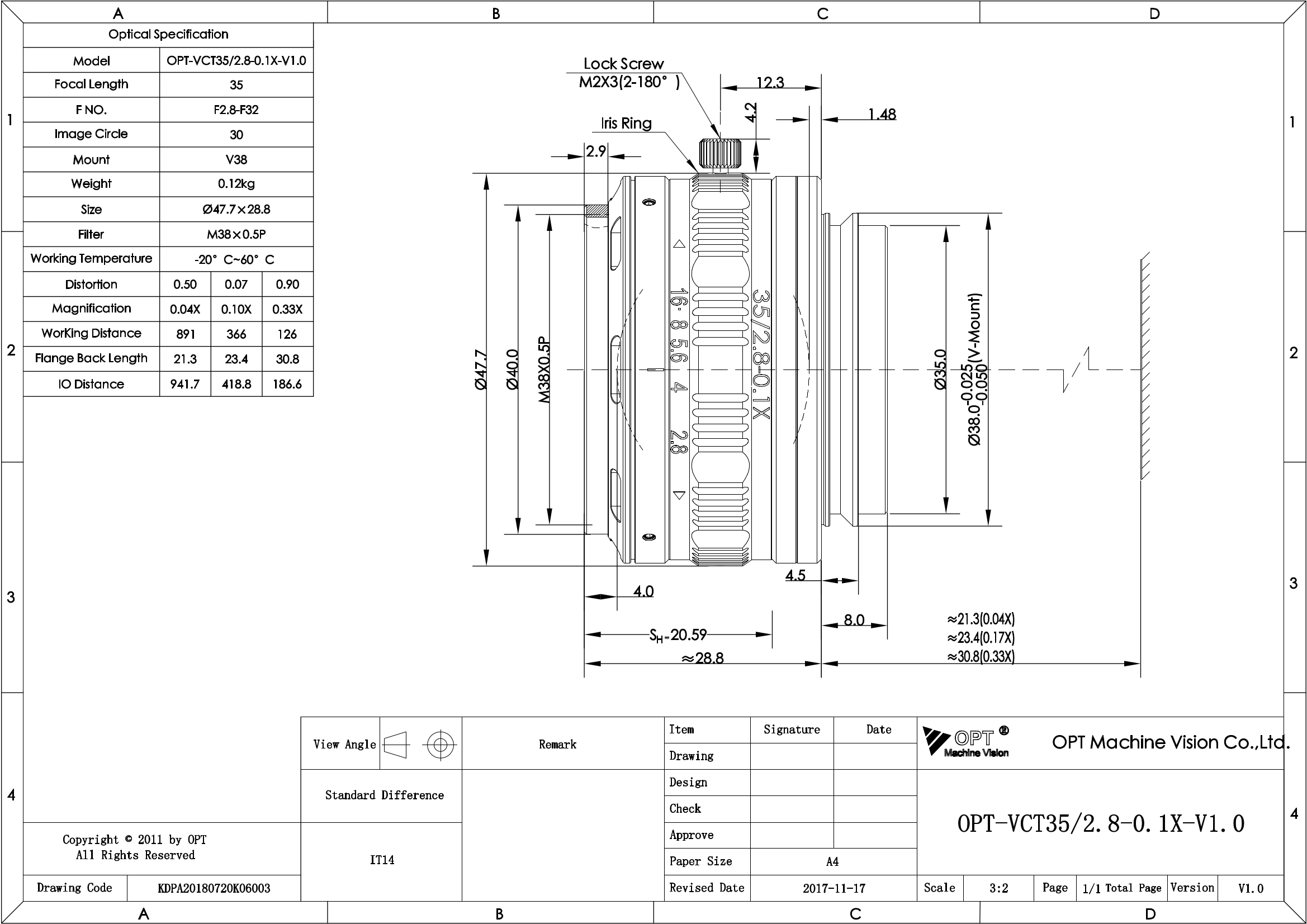

Dimensions

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 04.29.2021
