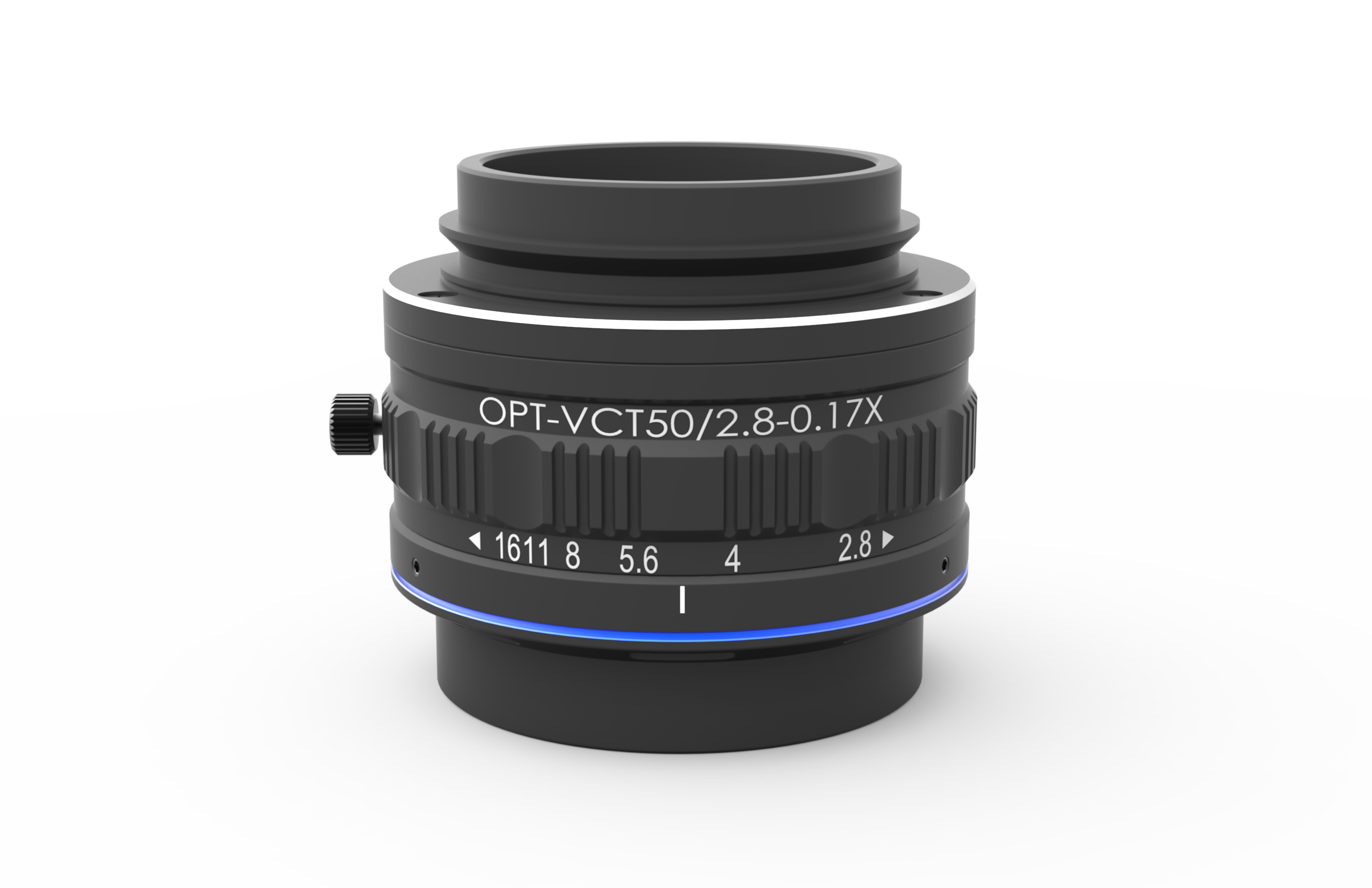

OPT-VCT50-2.8-0.17X

DescriptionColoretto Series Line Scan Lenses
Articlenumber (Eureca):06.23.0003
Origin: China
Manufacturer: OPT
Focal length50 mm
Aperture2.8–32
Image circle44 mm
MountV38
Weight0.15 kg
Working Distance632 mm
Working Distance328.9 mm
Working Distance183.8 mm
Primary Magnification0.08 ×
Primary Magnification0.17 ×
Primary Magnification0.33 ×
Distortion0.31 %
Distortion0.08 %
Distortion0.29 %
Flange distance38.5 mm
Flange distance42.6 mm
Flange distance50.2 mm
Object to image distance704.1 mm
Object to image distance405.1 mm
Object to image distance267.6 mm

To the product series

  • High resolution optical design, compatible to line scan camera with 7 µm pixel
  • Relative distortion is below 0.08 %
  • Broad spectrum range is from 400–900 nm and achromatic design
  • Suitable for up to 44 mm image circle of line and area scan camera

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Dimensional Drawnig of the lens



More pictures of the product:

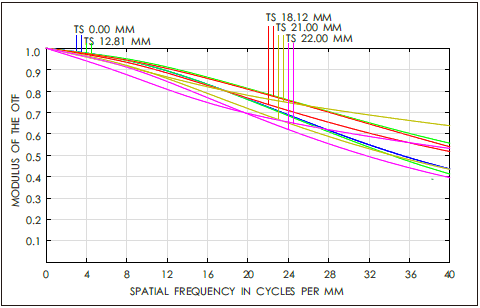

MTF

MTF

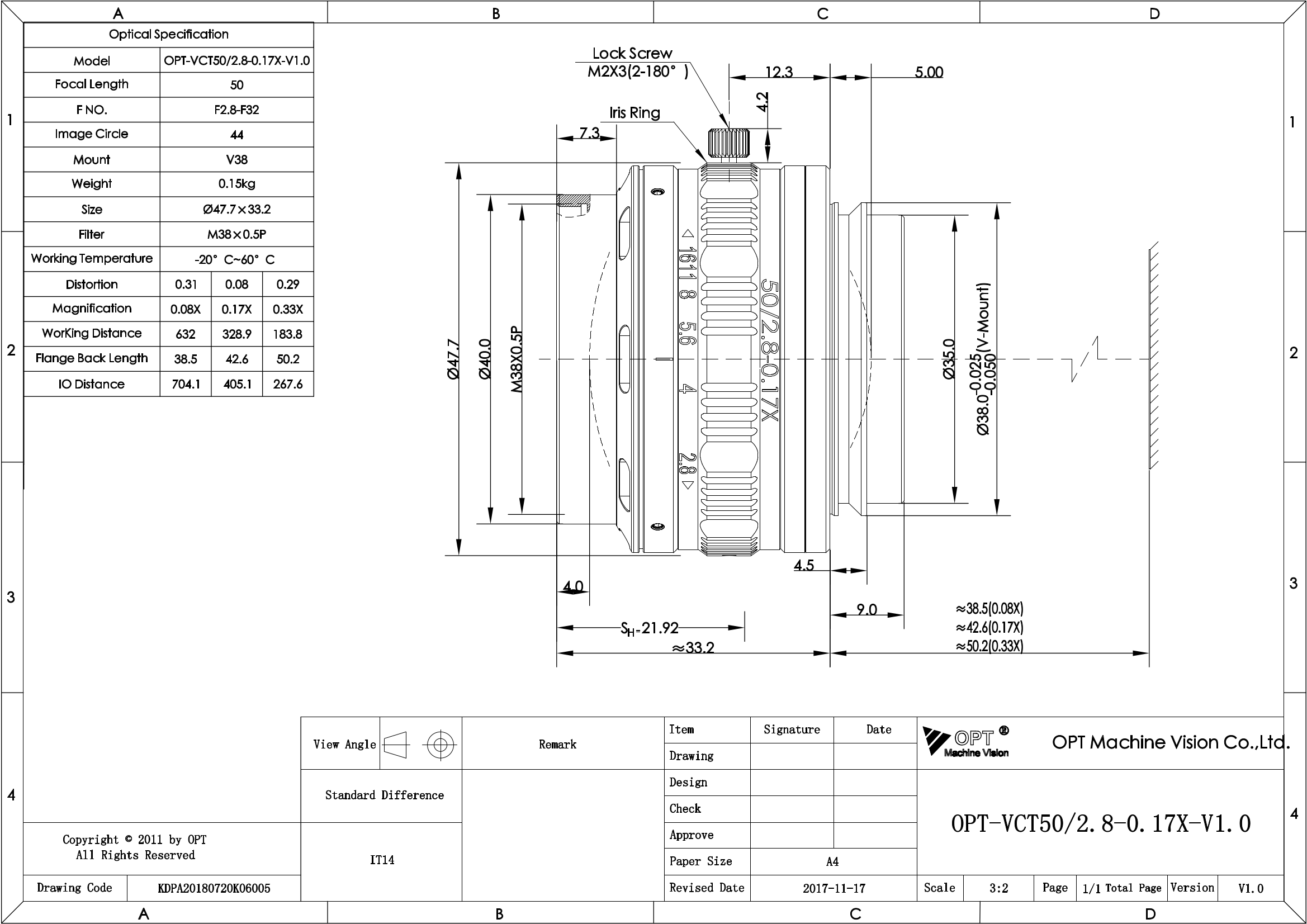

Dimensions

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 04.29.2021
