OPT-MH07-145A

DescriptionMH Series Telecentric Lenses
Articlenumber (Eureca):06.23.0058
Origin: China
Manufacturer: OPT
Working Distance145±4 mm
Magnification0.7 ×
Image circle7 mm
Aperture14.6
Distortion0.42 %
Depth Of Field2.46 mm
MountC
Weight0.08 kg
FOV angle (1/3″)6.9×5.1 mm × mm
FOV angle (1/2.5″)8.14×6 mm × mm

To the product series

  • High resolution, max compatible with 2MP industrial camera with 2/3" sensor
  • Obtain images of uniform brightness with the built-in coaxial illumination
  • Object-space telecentric design

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Dimensional Drawnig of the lens

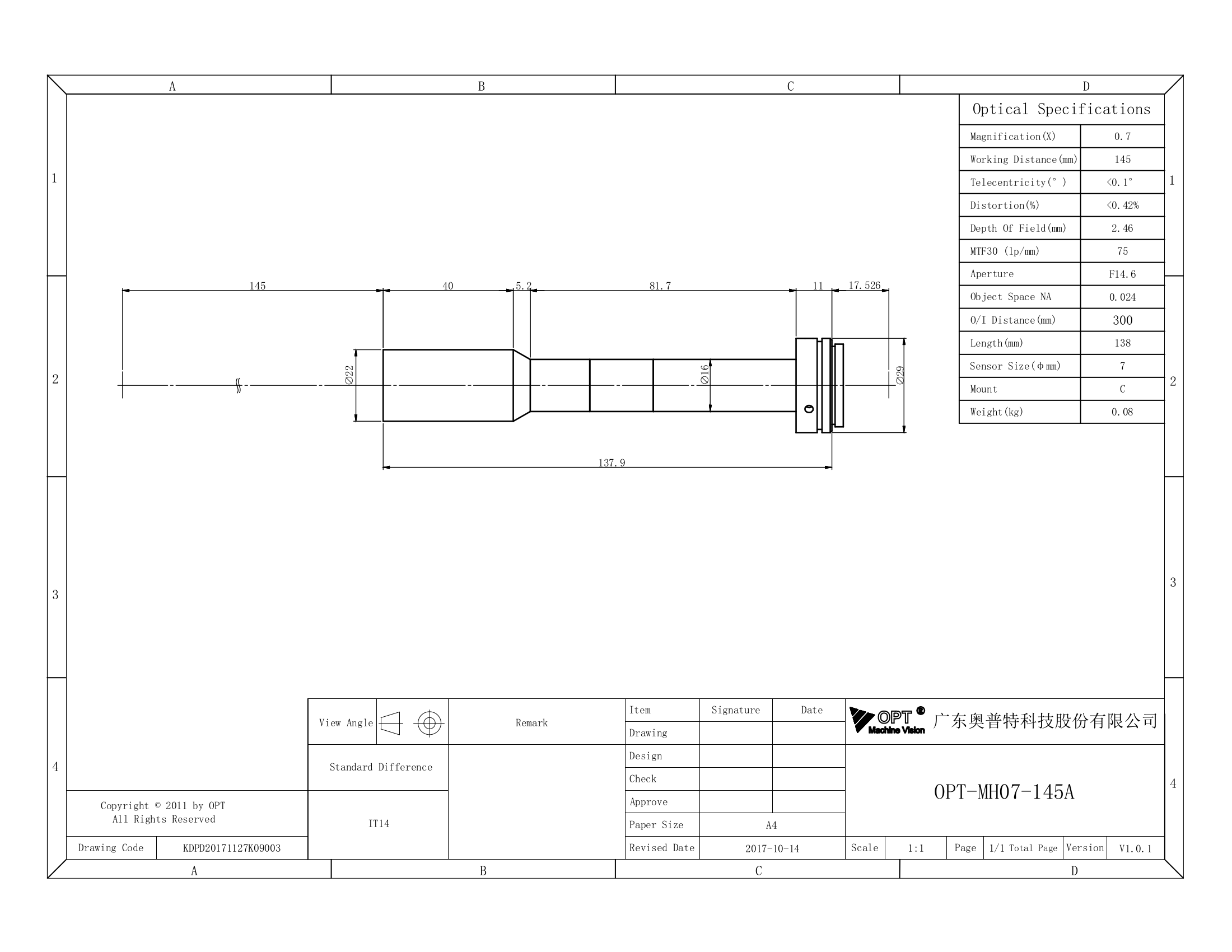

Dimensions

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 05.04.2021
