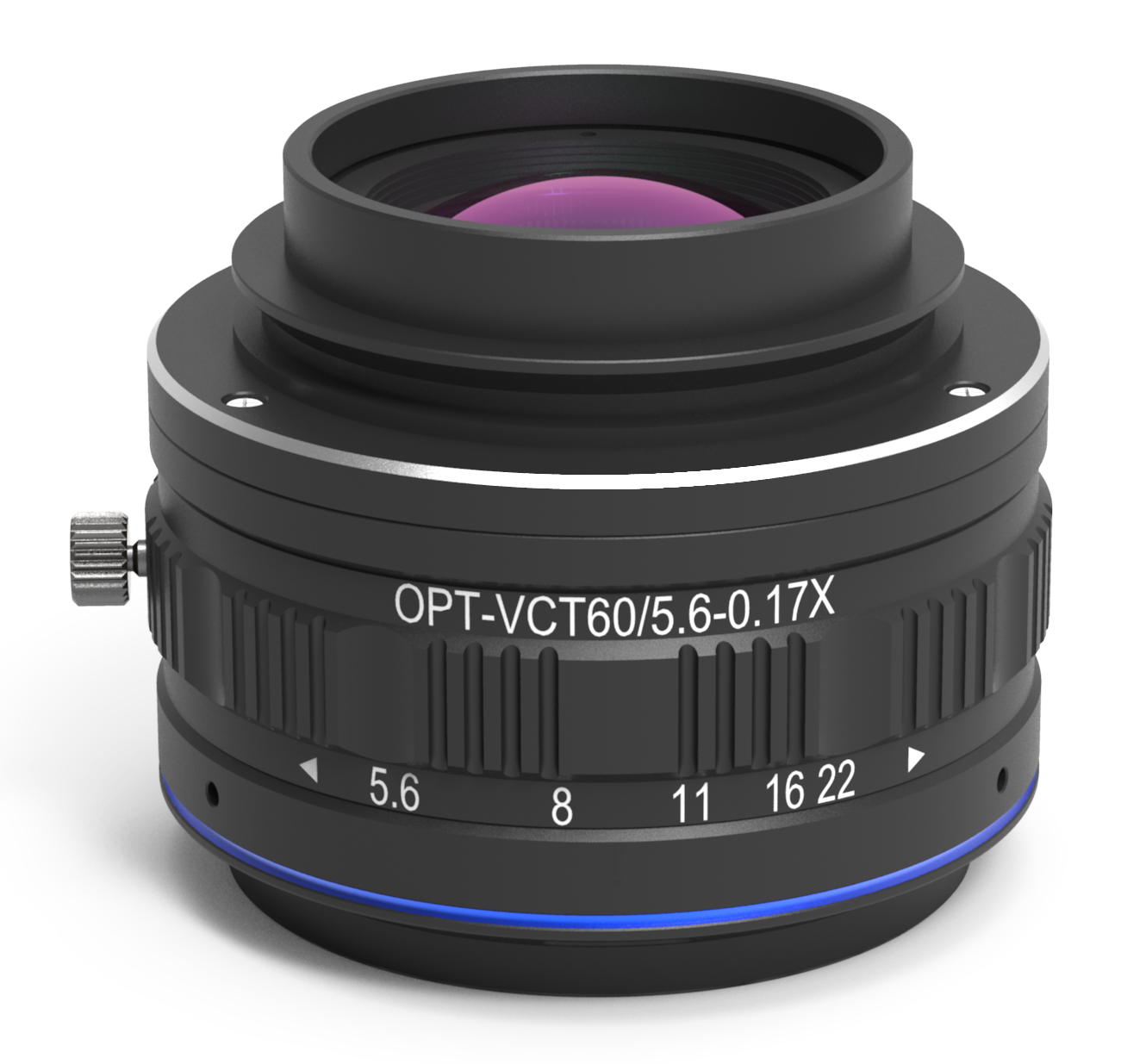

OPT-VCT60-5.6-0.17X

DescriptionColoretto Series Line Scan Lenses
Articlenumber (Eureca):06.23.0166
Origin: China
Manufacturer: OPT
Focal length60 mm
Aperture5.6–22
Image circle63 mm
MountV38
Weight0.14 kg
Working Distance1232 mm
Working Distance385.5 mm
Working Distance226.2 mm
Primary Magnification0.05 ×
Primary Magnification0.17 ×
Primary Magnification0.31 ×
Distortion0.60 %
Distortion0.16 %
Distortion0.18 %
Flange distance49.8 mm
Flange distance56.9 mm
Flange distance65.3 mm
Object to image distance1312.2 mm
Object to image distance473.9 mm
Object to image distance322.9 mm

To the product series

  • High resolution optical design, compatible to line scan camera with 7 µm pixel
  • Relative distortion is below 0.1 %
  • Broad spectrum range is from 400–700 nm and achromatic design
  • Suitable for 30–82 mm image circle
  • Magnification Range: 0.04×–0.33×, suitable for various industrial applications

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Optical Technical Data of the Lens

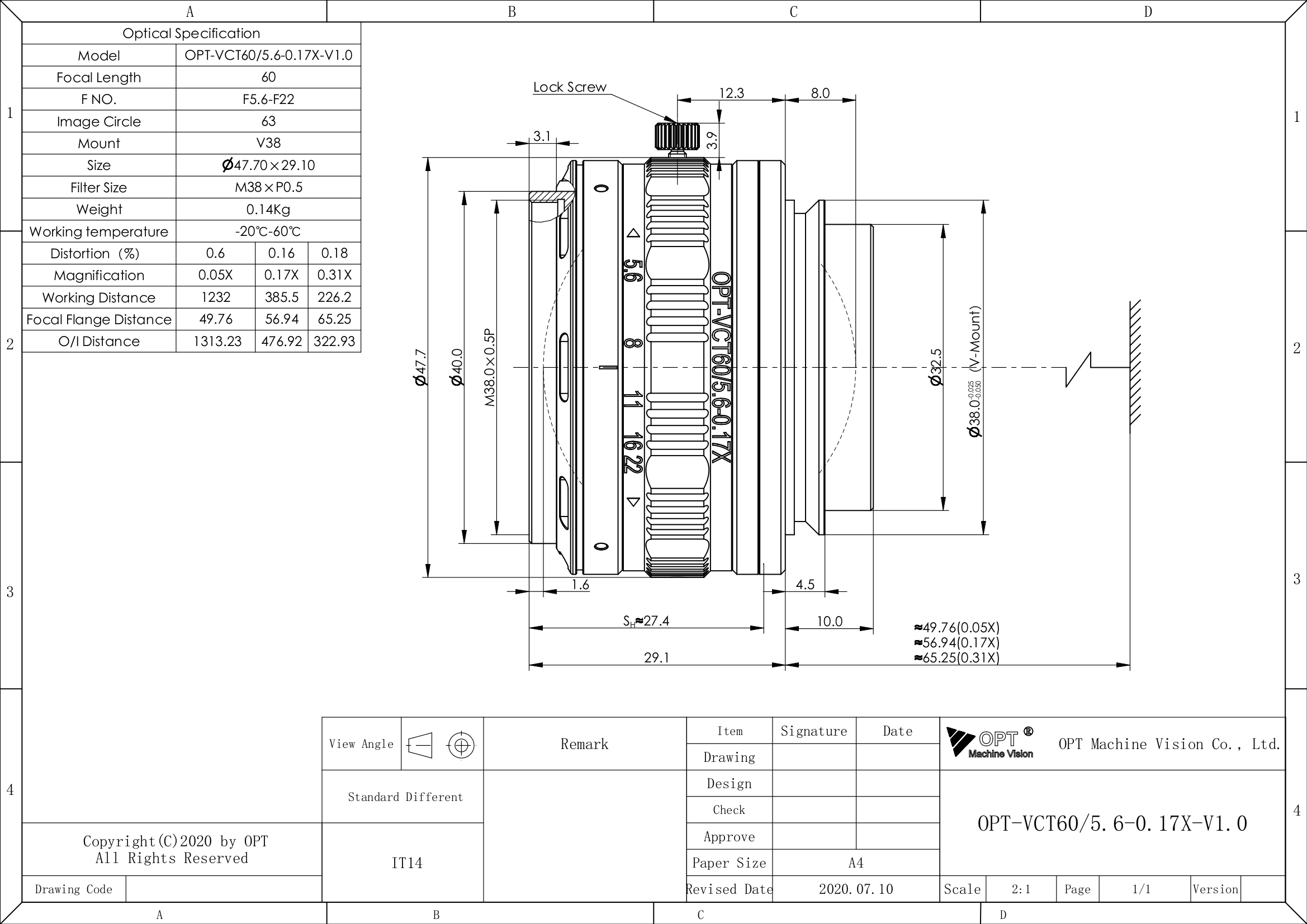

Dimensional Drawnig of the lens

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 05.04.2021
