| Description | Forge 1 GigE IP67 by Teledyne FLIR |
| Articlenumber (Eureca): | 02.17.0434 |
| Origin: | Canada |
| Manufacturer: | FLIR |
| Resolution | 2448 × 2048 |
| Frame Rate | 24 fps |
| Megapixel | 5 MP |
| Chroma | Monochrome |
| Sensor | Sony IMX264 |
| Sensor type | CMOS |
| Readout | Global shutter |
| Sensor format | 2/3 ″ |
| Pixel size | 3.45 µm |
| Lens mount | C-Mount |
| ADC | 12-bit |
| Interface | Gigabit Ethernet 1 Gbps |
| Power supply | Power over Ethernet (PoE) or externally powered over GPIO (21–24 V) |
| Dimension [mm] | 55 × 45 × 45 |
| Weight | 132 g |
| Required Accessories | Lens, IP-rated Lens Cover, Cable, Host Adapter (GigE) |
| Compliance | CE, FCC, RoHS. The ECCN for this product is: EAR099. |
| Machine Vision Standard | GigE Vision v1.2 |
| Warranty | 3 years |
| Operating Humidity | 20–80 % |
| Operating Temperature | 0–50 °C |
| Storage Humidity | 30–95 % |
| Storage Temperature | −30–60 °C |
| Image Processing | Color correction matrix, gamma, lookup table, saturation and sharpness |
| Flash Memory | 6 MB non-volatile memory |
| Image Buffer | 240 MB |
| User Sets | 2 user configuration sets for custom camera settings |
| Exposure Range | 27 µs–30 s |
| Gain Range | 0–47 dB |
| Partial Image Modes | Pixel binning, decimation, ROI |
| Auxiliary Output | 3.3 V, 120 mA max |
| I/O (non-isolated) | 1 bi-directional, 1 input |
| I/O (opto-isolated) | 1 in, 1 out |
| System Port | Gigabit Ethernet Port |
| Remark | Preproduction; contact us for details! |

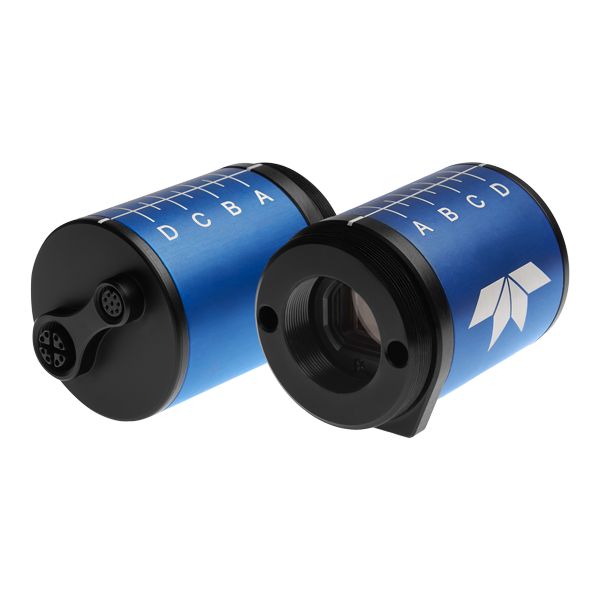

Forge® 1GigE IP67
The Forge® 1GigE IP67 series is a new range of affordable, easy-to-use GigE Vision interface cameras specifically designed for machine vision applications where ingress protection (IP67) and robust data capture and transmission are required. Existing 1GigE system users requiring a performance upgrade will benefit from the Forge 1GigE camera's multiple resolutions (1.2–12 MP), smaller IP67 housing size and overall lower deployment costs.
Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!
Documents for download:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
