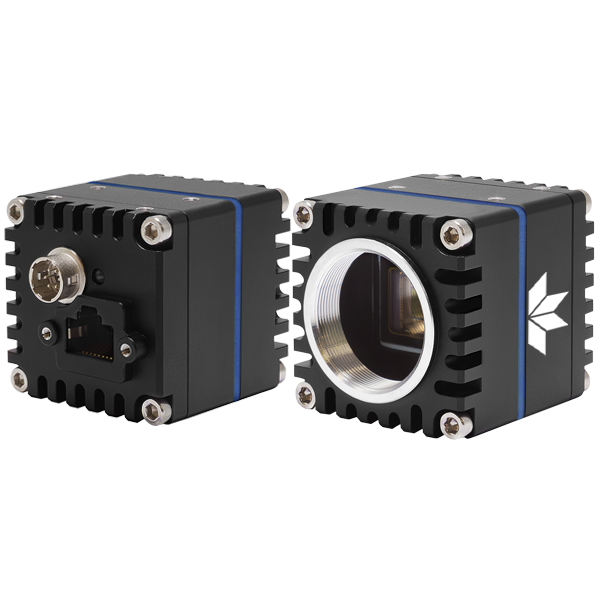

| Description | Forge 1 GigE SWIR by Teledyne FLIR |
| Articlenumber (Eureca): | 02.17.0392 |
| Origin: | Canada |
| Manufacturer: | FLIR |
| Resolution | 1280 × 1024 |
| Frame Rate | 92 fps |
| Megapixel | 1.3 MP |
| Chroma | Monochrome |
| Sensor | Sony IMX990 |
| Sensor type | CMOS |
| Readout | Global shutter |
| Sensor format | 1/2 ″ |
| Pixel size | 5 µm |
| Lens mount | C-Mount |
| ADC | 8-bit, 10-bit, 12-bit |
| Interface | Gigabit Ethernet 1 Gbps |
| Power supply | Power over Ethernet (PoE); or 12 V nominal (9.5–24 V) |
| Dimension [mm] | 40 × 40 × 43 |
| Weight | 116 g |
| Required Accessories | SWIR Lens, Cable, Host Adapter (GigE) |
| Compliance | CE, FCC, KCC, RoHS, REACH. ECCN is: US ECCN 6A003.b.4.a / Canadian ECL 1-6.A.3.b.4.a |
| Machine Vision Standard | GigE Vision v1.2 |
| Warranty | 3 years |
| Operating Humidity | 20–80 % |
| Operating Temperature | 0–50 °C |
| Storage Humidity | 30–95 % |
| Storage Temperature | −30–65 °C |
| Image Processing | Gamma, lookup table, and sharpness |
| Flash Memory | 1 MB non-volatile memory |
| Image Buffer | 240 MB |
| User Sets | 2 user configuration sets for custom camera settings |
| Exposure Range | 15 µs–30 s |
| Gain Range | 0–42 dB |
| Partial Image Modes | Decimation, ROI |
| Absolute Sensitivity Threshold (y) | 408 |
| Quantum Efficiency | 63 % |
| Saturation Capacity | 184780 e− |
| Temporal Dark Noise | 256 e− |
| Dynamic range | 57 dB |
| Auxiliary Output | 3.3 V, 120 mA max |
| I/O (non-isolated) | 1 bi-directional, 1 input |
| I/O (opto-isolated) | 1 in, 1 out |
| System Port | Gigabit Ethernet Port |
The Forge® 1GigE SWIR (Short Wave Infrared) camera series leverages Teledyne's vast expertise in SWIR technology.
Features:
For this camera model Eureca offers many accessories as for example:
Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!
Documents for download:
Datasheet
Technical Reference
EMVA Imaging Performance Specifications
Technical Drawings
Forge 1GigE SWIR Installation Guide
Getting Started
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 03.07.2025
