| Description | Holder module for optical components with tilt mechanism for round components Ø 25 mm for Czerny Turner Spectroscope #1 |
| Articlenumber (Eureca): | 04.02.0005 |
| Origin: | Germany |
| Manufacturer: | Eureca |
| Designation | MHO-25RT |

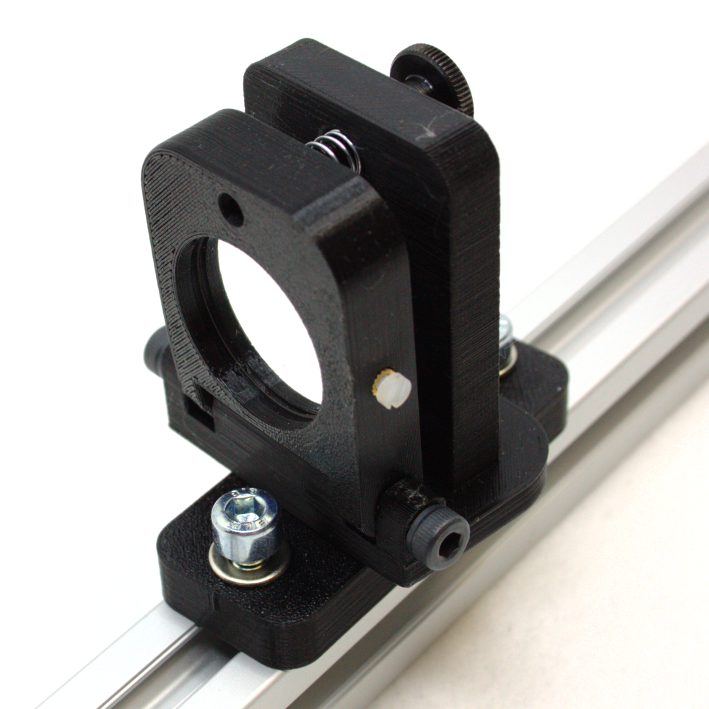

This module is used to accommodate optical components such as mirrors or lenses with a diameter of 25.4 mm (1 inch). It has an additional tilting mechanism with which the mirror can be tilted a few degrees horizontally, for example to direct an optical signal exactly onto a detector.
Documents for download:
Assembly instructions (German)
Assembly instructions (English)
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 05.26.2023
