| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0234 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 16.7 MPix |
| Pixel number (H × V) | 4096 × 4096 |
| Pixel size | 15 × 15 µm |
| Format | 86.8 mm length |
| Frame Rate (12bit) | 9 fps |
| Shutter | Rolling |
| Chroma | Monochrome |
| Photosensitive area | 61.4 × 61.4 mm × mm |
| Linear Full Well Capacity | 134 ke− |
| Temporal Noise | 4 e− |
| Dynamic range | 90 dB |

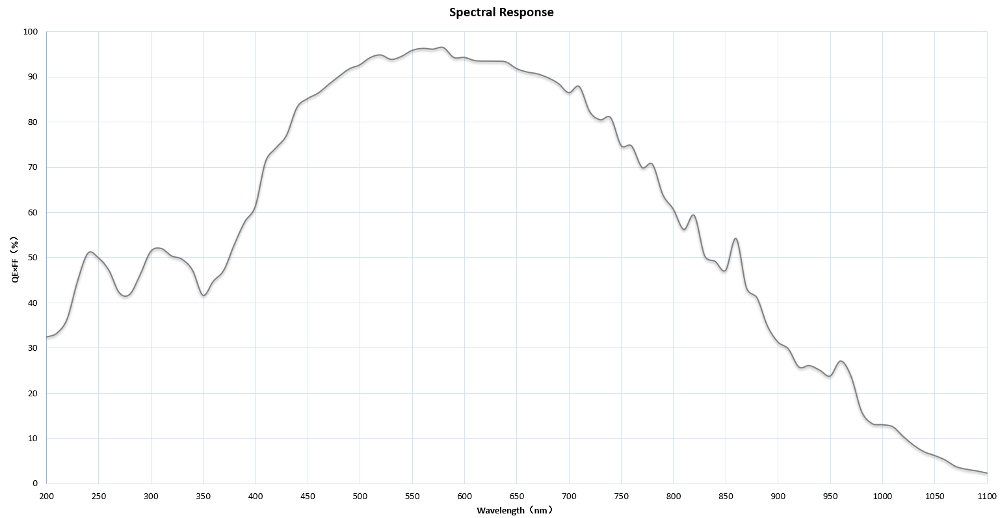

| Peak QE | 95 @ 580 nm % |
| Angular Response | t. b. d. ° |
| Dark current | 0.04 @ −50 °C e−/pixel/sec |
| Supply Voltages | 5 V for analog, 1.8 V for digital |
| Output Format | 34 pairs LVDS channels |
| Channel Multiplexing | 34/18/10 |
| Power Consumption | 1.3 W |

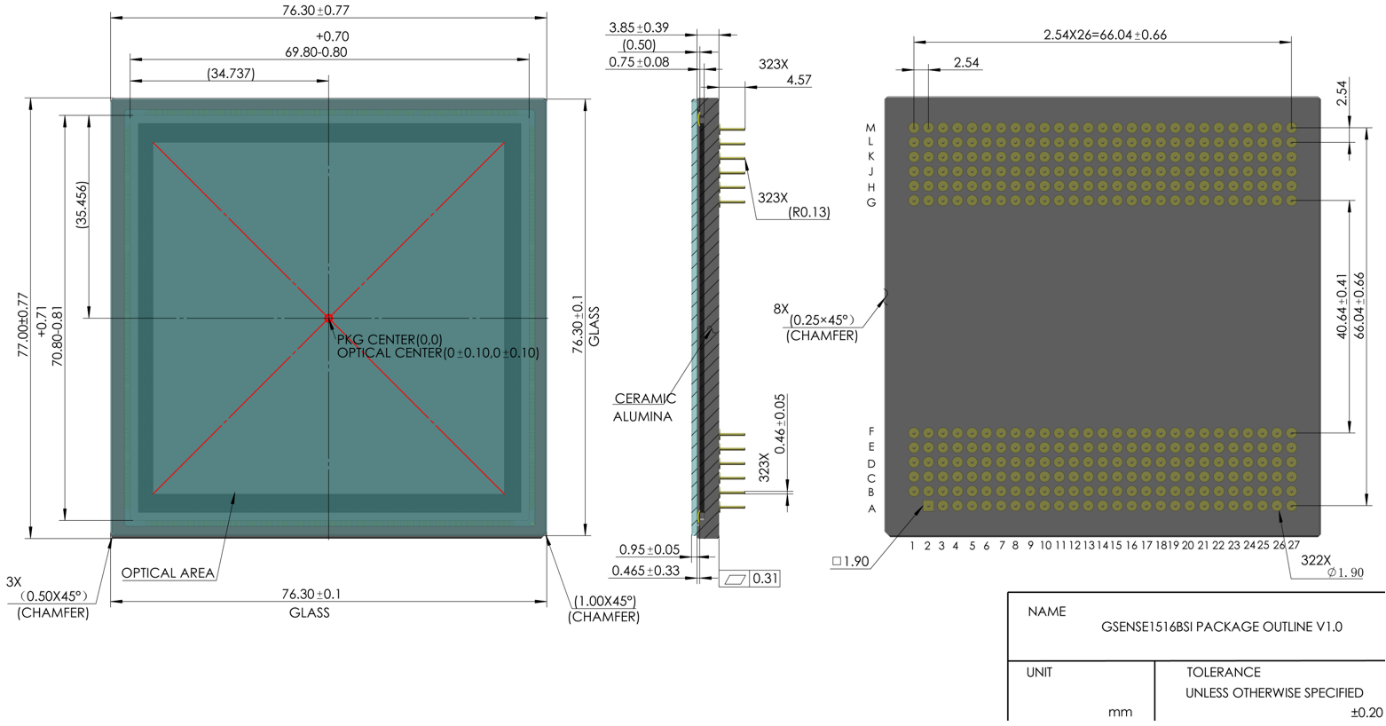

| Package | 323-pin PGA |
| Preliminary | ✔ |
| On request only | ✔ |
GSENSE1516BSI 15 µm 16.7 MP Rolling Shutter image sensor. Ordering information:
Documents for download:

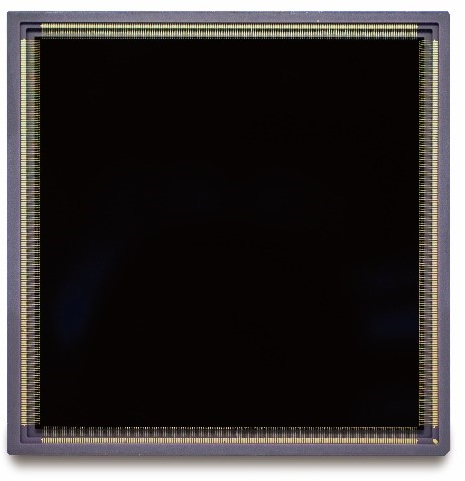

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
