| Articlenumber (Eureca): | 01.32.0217 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Pixel number (H × V) | 640 × 480 |
| Pixel size | 5 × 5 µm |
| Format | 1/4 ″ |
| Format | 3.2 × 2.4 mm |
| Frame Rate | 30 @ 10/11bit fps |
| Shutter | Global |
| Chroma | Monochrome |
| Photosensitive area | 3.2 × 2.4 mm × mm |
| Linear Full Well Capacity | 10 ke− |
| Temporal Noise | <7 e− |
| Dynamic range | > 60 dB |
| Peak QE | > 24 % at 940 nm (T. B. D.) % |
| Supply Voltages | 2.8 V, 1.8 V, 1.2 V (T. B. D.) |
| Output Format | 4-lane CSI-2 MIPI, RAW10, RAW12 1.6 Gbps default |
| Power Consumption | 330 (T. B. D.) mW |

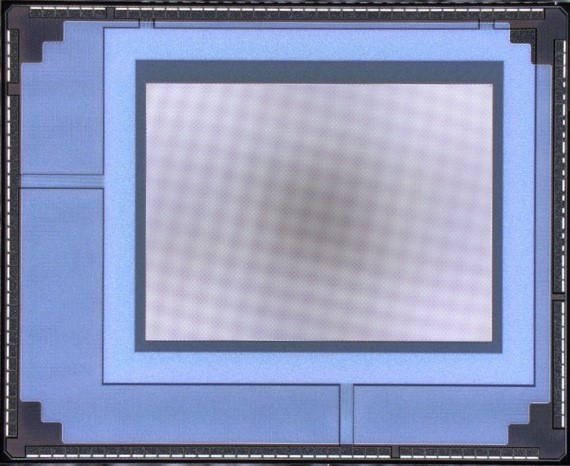

| Package | Bare die 139 pads/ceramic (T. B. D.) |
| Preliminary | ✔ |
| On request only | (✔) |
GTOF0503 VGA 1/4" iTOF CMOS image sensor featuring a 5 µm 3-tap state-of-the-art iTof pixel.
Excellent sensitivity at NIR wavelengths is provided by the BSI technology.
Key features and Benefits:
For more details please refer to the datasheet linked below.
Documents for download:

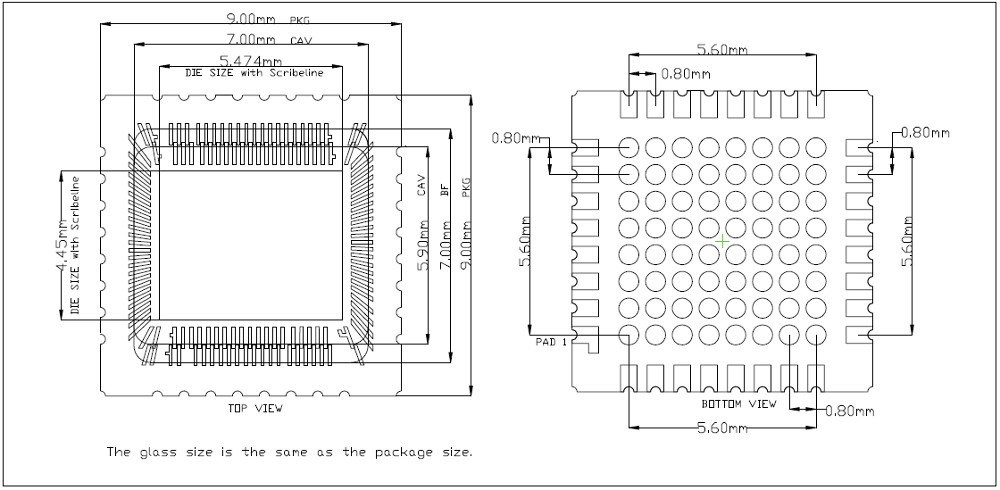

Package Drawing
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
