OPT-C5025-5M-LW

DescriptionLaser Application Fixed Focal Length Lenses
Articlenumber (Eureca):06.23.0037
Origin: China
Manufacturer: OPT
MountC
Focal length50 mm
Aperture2.5–22
Working Distance1000–∞ mm
Filter threadM30.5×P0.5
Distortion0.1 %
Weight0.11 kg

To the product series

Designed for laser applications, working distance over 1000 nm.

For more information on matching sensor formats and fields of view, please refer to the datasheet.








Documents for download:

Datasheet of the lens series

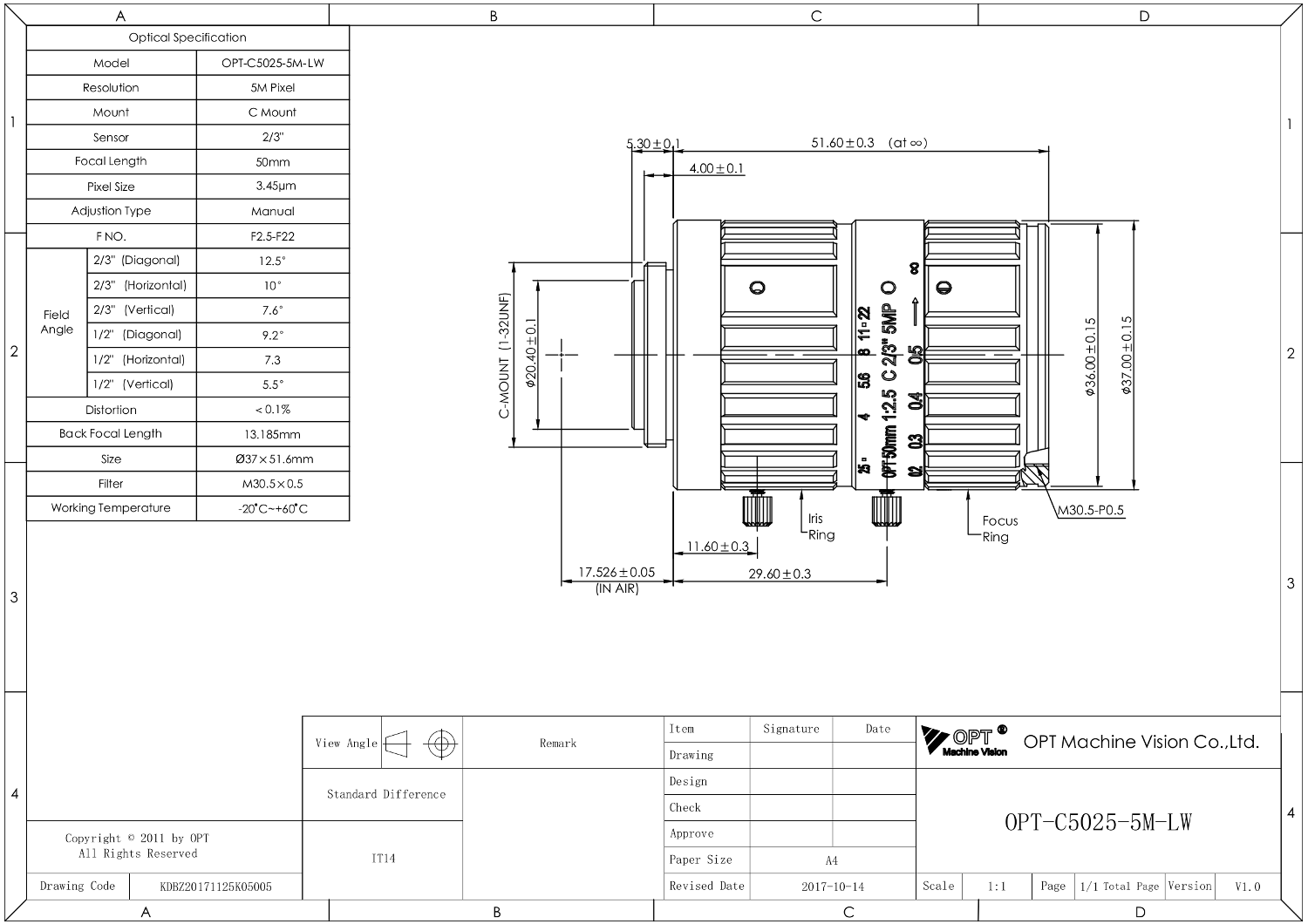

Dimensional Drawnig of the lens




More pictures of the product:



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 04.28.2021
