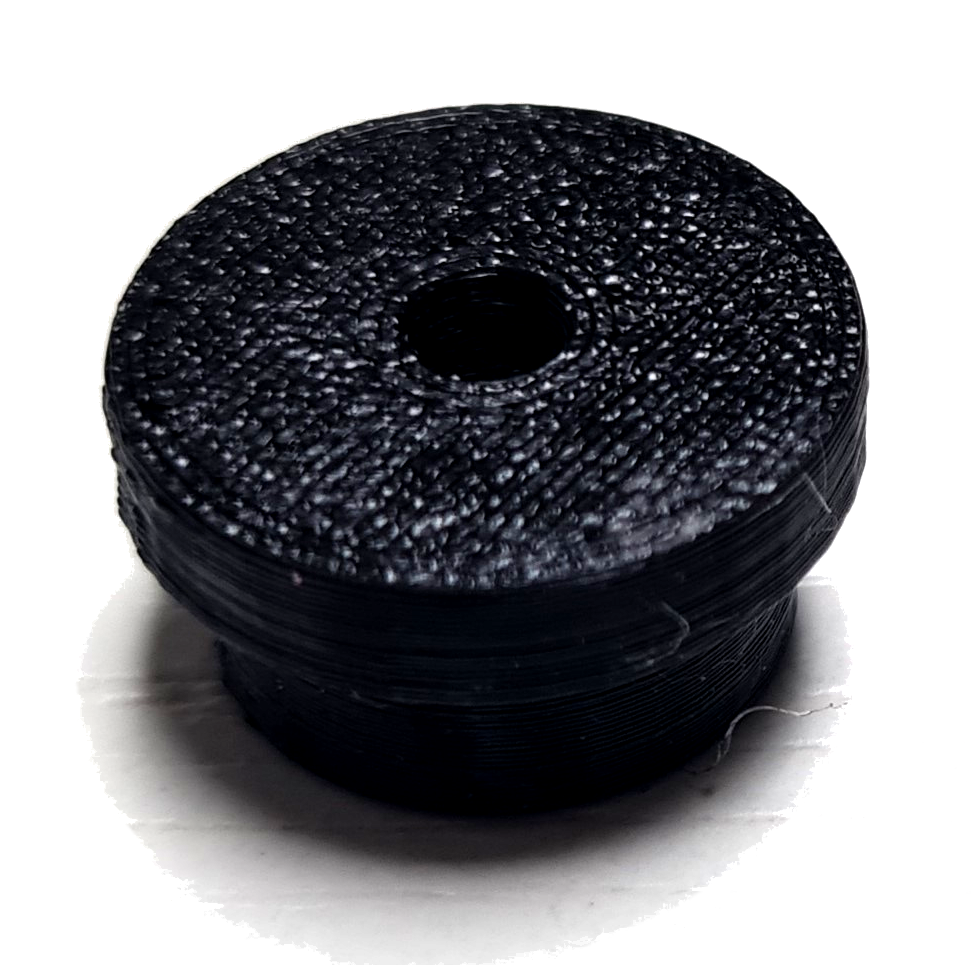

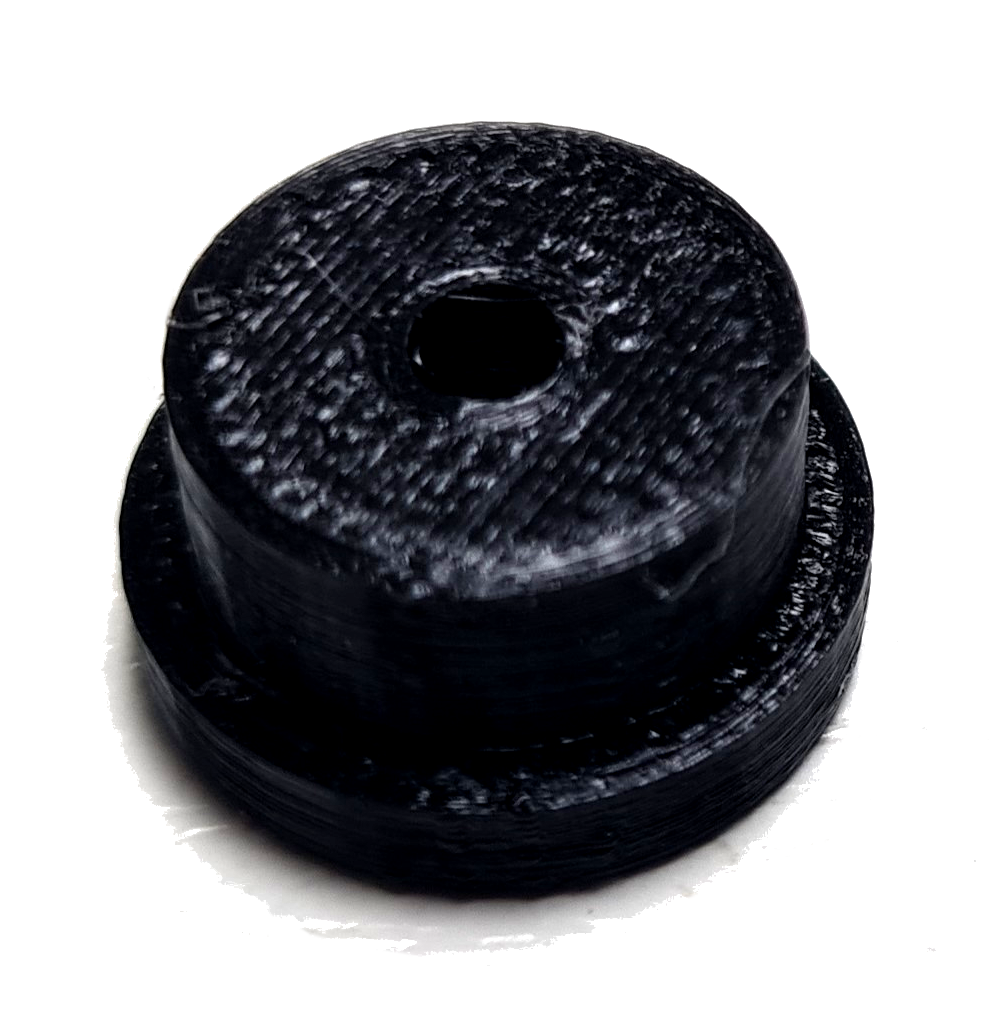

Fits Thorlabs V100/M adjustable slit. A fiber optic cable with an SMA connector can then be plugged into the adapter.

This 3D printed part is part of our construction kit for modular optoelectronic setups. Herewith the experiments, which we publish in loose sequence in the context of our application examples for our line scan cameras, can be reproduced. In addition to the step files for a quick reprint, the FreeCad files are also freely available, so that modifications of the 3D printed parts are easily possible to adapt an experiment to your own needs.

To print the parts, we use a Prusa i3 MK3 3D printer and PLA filament internally. If you have any questions about the printer settings used, we will be happy to help.

If you don't have your own 3D printer but still want to reproduce our experiments, please contact us. We will surely find a solution together. The assembly instructions of the modules, the complete spectrometer as well as the application examples published so far can be found on the linked subpages.
