Description | CMOS sensor by Gpixel |
Articlenumber (Eureca): | 01.32.0237 |
Origin: | China |
Manufacturer: | Gpixel Inc. |
Resolution | 2/4 kPix |
Pixel number (H × V) | 4096 × 2 @ 3.5 µm 2048 × 4 @ 7 µm |
Pixel size | 3.5 × 3.5 7 × 7 µm |
Format (Length) | 14.336 mm |
Line Rate | 172 @ 7 µm single line mode kHz |
Shutter | Global |
Chroma | Mono, Color |
Photosensitive area | 14.336 mm × mm |
Linear Full Well Capacity | 12.5 @ 3.5 µm single line mode ke− |
Temporal Noise | 5.5 @ 3.5 µm single line mode e− |
Dynamic range | 67.5 @ 3.5 µm single line mode dB |
Output Format | 6 pairs of sub-LVDS data output, 1 pair of DDR clock output |
Channel Multiplexing | 6/3/2/1 |
Power Consumption | <1.02 W |

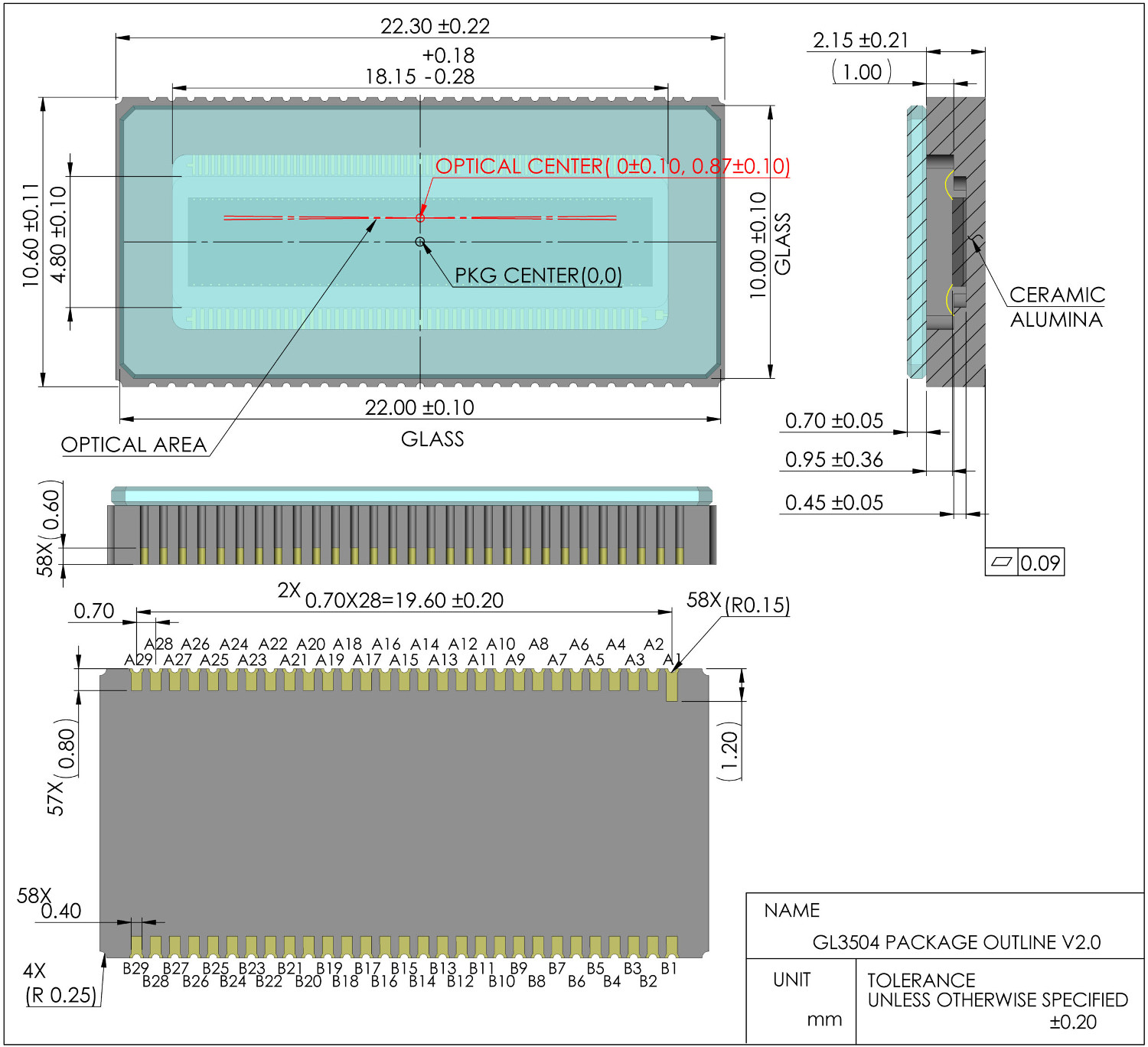

Package | 58-pin CLCC |
Preliminary | ✔ |
On request only | (✔) |
GL3504 2/4 K C-Mount Line Scan CMOS Image Sensor. This sensor is available in different versions, for example:
Note: The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:

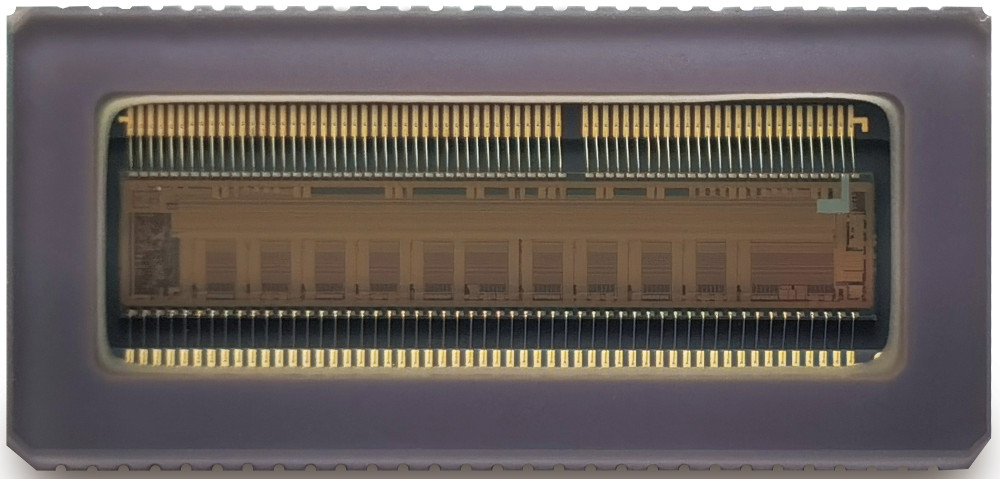

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
