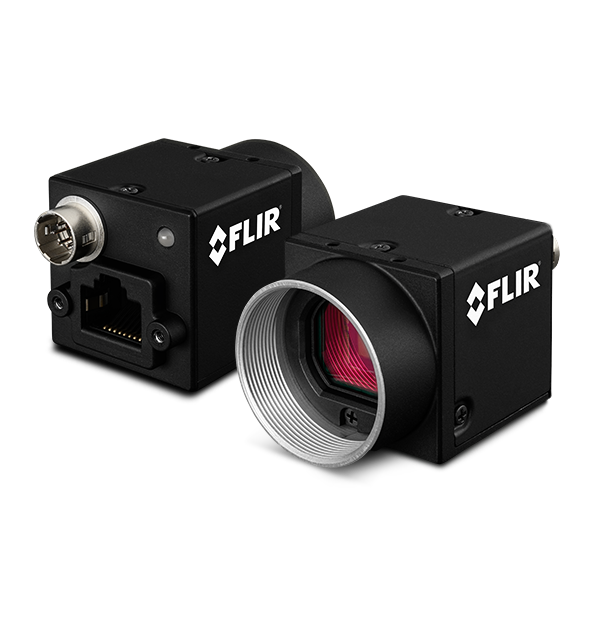

Description | Camera by Teledyne FLIR |
Articlenumber (Eureca): | 02.17.0111 |
Origin: | Canada |
Manufacturer: | FLIR |
Resolution | 1280 × 960 |
Frame Rate | 52 fps |
Megapixel | 1.2 MP |
Chroma | Color |
Sensor | Aptina AR0134 |
Sensor type | CMOS |
Readout | Global shutter |
Sensor format | 1/3 ″ |
Pixel size | 3.75 µm |
Lens mount | CS-Mount |
ADC | 12-bit |
Interface | GigE PoE |
Power supply | Power over Ethernet (PoE) or 12 V nominal (5–16 V) |
Dimension [mm] | 29 × 29 × 30 |
Weight | 36 g |
Required Accessories | Lens, Cable, Host Adapter (GigE), Tripod Mount Adapter (ACC-01-0003) |
Compliance | CE, FCC, KCC, RoHS. ECCN: EAR099 |
Machine Vision Standard | GigE Vision v1.2 |
Warranty | 3 years |
Operating Humidity | 20–80 % |
Operating Temperature | 0–45 °C |
Storage Humidity | 20–95 % |
Storage Temperature | −30–60 °C |
Image Processing | Gamma, lookup table, hue, saturation, and sharpness |
Flash Memory | 512 KB non-volatile |
Image Buffer | 16 MB |
Trigger Modes | Standard, multi-shot |
User Sets | 2 user configuration sets for custom camera settings |
Exposure Range | 0.019 ms–1.226 s |
Gain Range | −5.753–13 dB |
Partial Image Modes | Pixel binning, decimation, ROI |
Absolute Sensitivity Threshold (y) | 9.73 |
Quantum Efficiency Blue | 60 (470 nm) % |
Quantum Efficiency Green | 57 (525 nm) % |
Quantum Efficiency Red | 62 (640 nm) % |
Saturation Capacity | 5608 e− |
Temporal Dark Noise | 5.12 e− |
Dynamic range | 59.97 dB |
Auxiliary Output | 3.3 V, 120 mA max |
I/O (opto-isolated) | 1 in, 1 out |
HDD | 200 MB |
System Port | Gigabit Ethernet |
Operating System | Windows or Linux (32–bit or 64–bit) |
CPU | 3.1 GHz or equivalent |
The Blackfly® camera line combines Sony CCD, Aptina, e2v and Sharp sensors with a variety of unique features.
For this camera model Eureca offers many accessories as for example:
Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!
Documents for download:
Datasheet
Dimensional Drawings
Getting Started
EMVA Imaging Performance Specifications
Technical Reference
Machine Vision Camera Register Reference
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 01.31.2022
