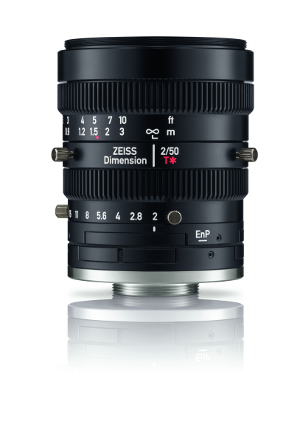

| Description | Industrial lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0127 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |
| Designation | ZEISS Dimension 2/50 C |
| Manufacturer ID | 2230-002 |
| Focal length | 50 mm |
| Mount | C |
| Aperture range | 2–22 |
| Lens elements / Groups | 10 / 6 |
| Format | 4/3 ″ |
| Focus range [mm] | 390.3–∞ mm |
| Focus range [ft] | 1.28–∞ ft |
| Min. free working distance [mm] | 311.2 mm |
| Min. free working distance [ft] | 1.02 ft |
| Angle of view diag. / hor. / vert. 1" | 17.81 / 14.89 / 9.98 ° (1″ Format) |
| Angle of view diag. / hor. / vert. 4/3" | 24.00 / 19.37 / 14.66 ° (4/3″ Format) |
| Diameter of image field 1″ [mm] | 16 mm |
| Diameter of image field 1″ [inch] | 0.63 ″ |
| Diameter of image field 4/3″ [mm] | 21.64 mm |
| Diameter of image field 4/3″ [inch] | 0.83 ″ |
| Flange focal distance [mm] | 17.526 mm |
| Flange focal distance [inch] | 0.69 ″ |
| Coverage at close range (1 ″) [mm] | 72.3 x 48.2 mm × mm |
| Coverage at close range (4/3 ″) [mm] | 94.7 x 71.2 mm × mm |
| Coverage at close range (1 ″) [inch] | 2.85 x 1.89 ″ |
| Coverage at close range (4/3 ″) [inch] | 3.73 x 2.80 ″ |
| Image ratio at close range | 1:5.5 |
| Entrance pupil position (in front of image plane) [mm] | 63.8 mm |
| Entrance pupil position (in front of image plane) [inch] | 2.51 ″ |
| Exit pupil position (in front of image plane) [inch] | 1.53 ″ |
| Exit pupil position (in front of image plane) [mm] | 38.9 mm |
| Length (front to mount contact surface) (at inf.) [mm] | 69.0 mm |
| Length (front to mount contact surface) (at MOD) [mm] | 81.0 mm |
| Length (front to mount contact surface) (at inf.) [inch] | 2.72 ″ |
| Length (front to mount contact surface) (at MOD) [inch] | 3.19 ″ |
| Diameter (lens only) [mm] | 57.0 mm |
| Diameter (with fixation screws) [mm] | 64.0 mm |
| Diameter (lens only) [inch] | 2.24 ″ |
| Diameter (with fixation screws) [inch] | 2.52 ″ |
| Filter thread | M49 × 0.75 |
| Weight | 306 g |
Lens
Documents for download:
More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 06.14.2022
