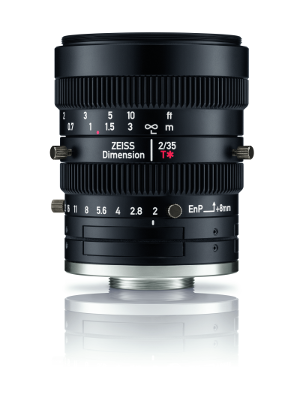

| Description | Industrial lens by Carl Zeiss |
| Articlenumber (Eureca): | 06.11.0126 |
| Origin: | Germany |
| Manufacturer: | Carl Zeiss |
| Designation | ZEISS Dimension 2/35 C |
| Manufacturer ID | 2230-000 |
| Focal length | 35 mm |
| Mount | C |
| Aperture range | 2–22 |
| Lens elements / Groups | 13 / 8 |
| Format | 4/3 ″ |
| Focus range [mm] | 288.6–∞ mm |
| Focus range [ft] | 0.95–∞ ft |
| Min. free working distance [mm] | 209.2 mm |
| Min. free working distance [ft] | 0,69 ft |
| Angle of view diag. / hor. / vert. 1" | 25.24 / 21.04 / 14.06 ° (1″ Format) |
| Angle of view diag. / hor. / vert. 4/3" | 34.25 / 27.49 / 20.73 ° (4/3″ Format) |
| Diameter of image field 1″ [mm] | 16 mm |
| Diameter of image field 1″ [inch] | 0.63 ″ |
| Diameter of image field 4/3″ [mm] | 21.64 mm |
| Diameter of image field 4/3″ [inch] | 0.83 ″ |
| Flange focal distance [mm] | 17.526 mm |
| Flange focal distance [inch] | 0.69 ″ |
| Coverage at close range (1 ″) [mm] | 73.3 x 49.0 mm × mm |
| Coverage at close range (4/3 ″) [mm] | 96.9 x 72.6 mm × mm |
| Coverage at close range (1 ″) [inch] | 3.14 x 1.93 ″ |
| Coverage at close range (4/3 ″) [inch] | 3.82 x 2.89 ″ |
| Image ratio at close range | 1:5.6 |
| Entrance pupil position (in front of image plane) [mm] | 45.1 mm |
| Entrance pupil position (in front of image plane) [inch] | 1.77 ″ |
| Exit pupil position (in front of image plane) [inch] | 1.48 ″ |
| Exit pupil position (in front of image plane) [mm] | 37.7 mm |
| Length (front to mount contact surface) (at inf.) [mm] | 70,0 mm |
| Length (front to mount contact surface) (at MOD) [mm] | 70.0 mm |
| Length (front to mount contact surface) (at inf.) [inch] | 2.76 ″ |
| Length (front to mount contact surface) (at MOD) [inch] | 2.76 ″ |
| Diameter (lens only) [mm] | 57.0 mm |
| Diameter (with fixation screws) [mm] | 64.0 mm |
| Diameter (lens only) [inch] | 2.24 ″ |
| Diameter (with fixation screws) [inch] | 2.52 ″ |
| Filter thread | M49 × 0.75 |
| Weight | 323 g |
Lens
Documents for download:
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 06.14.2022
