ORX-10GS-89S6M-C

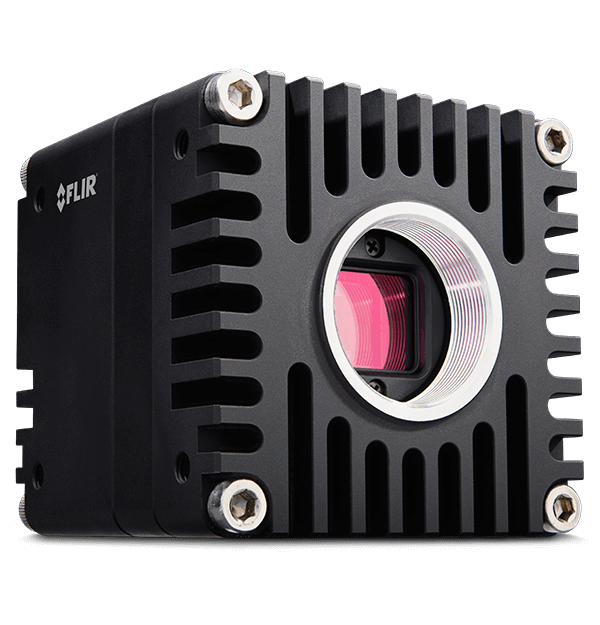

DescriptionOryx 10-Gig Ethernet Camera by Teledyne FLIR
Articlenumber (Eureca):02.17.0297
Origin: Canada
Manufacturer: FLIR
Resolution4096 × 2160
Frame Rate93 fps
Megapixel8.9 MP
ChromaMonochrome
SensorSony IMX255
Sensor typeCMOS
ReadoutGlobal shutter
Sensor format1 ″
Pixel size3.45 µm
Lens mountC-Mount
ADC8-bit, 10-bit, 12-bit
Interface10 GigE
Power supply12–24 V, via GPIO interface
Dimension [mm]60 × 60 × 64
Weight386 g
Required AccessoriesLens, Cable, Host Adapter (10GigE), Power Supply (ACC-01-9013)
ComplianceCE, FCC, KCC, RoHS. ECCN: EAR099
Machine Vision StandardGigE Vision v1.2
Warranty3 years
Operating Humidity20–80 %
Operating Temperature0–70 °C
Storage Humidity20–95 %
Storage Temperature−30–60 °C
Image ProcessingGamma, lookup table, and sharpness
Flash Memory4  non-volatile
Image Buffer240 MB
User Sets2 user configuration sets for custom camera settings
Exposure Range5 µs–30 s
Gain Range0–47 dB
Partial Image ModesPixel binning, decimation, ROI
Absolute Sensitivity Threshold (y)4.72
Quantum Efficiency62.99 (530 nm) %
Saturation Capacity10514 e
Temporal Dark Noise2.47 e
Dynamic range70.97 dB
Auxiliary Output3.3 V, 120 mA max
I/O (non-isolated)2 bi-directional
I/O (opto-isolated)1 input, 1 output
HDD200 MB
System PortGigabit Ethernet Port
Operating SystemWindows or Linux (32–bit or 64–bit)
CPU3.1 GHz or equivalent

ORYX 10GS

To the product series

The award-winning Oryx 10GigE camera family enables system designers to take advantage of the latest sensors through:

  • Transmission speeds of up to 10 Gbit/s,
  • the recording of 4K resolution, 12-bit images at over 60 fps.

Features:

  • IEEE1588 clock synchronization
  • full compatibility with several popular 3rd party software supporting GigE Vision

Reliable, high-bandwidth image transmission is further enhanced with Myricom bundles and packet resend functionality. Oryx's 10GBASE-T interface is a proven and widely used standard that offers reliable image transmission with cable lengths of over 50 meters on cost-effective CAT6A and up to 30 meters on CAT5e.

For this camera model Eureca offers many accessories as for example:

Our technical team would be happy to assist you in selecting the most suitable components. Please contact us!








Documents for download:

Datasheet
Technical Reference
EMVA Imaging Performance Specifications
ORX Installation Guide
Technical Drawings
Machine Vision Camera Register Reference

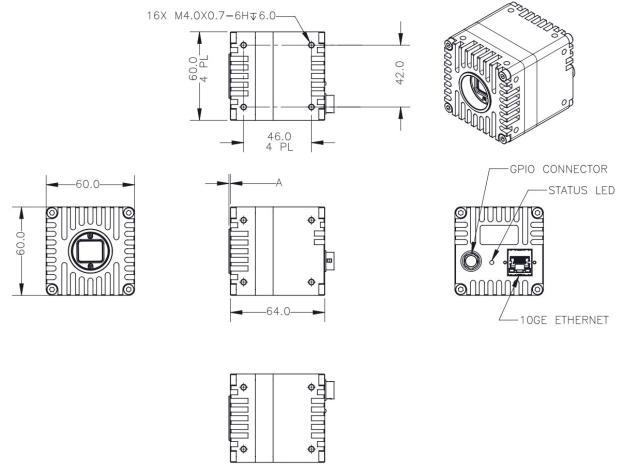

Oryx Dimensional Drawing—Small Format



Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
