OPT-DOFP150

DescriptionDigital Fiber Spot Lights OPT-DOFP by OPT
Articlenumber (Eureca):09.03.0210
Origin: China
Manufacturer: OPT
Input Voltage White110–240V
Output Power White150W

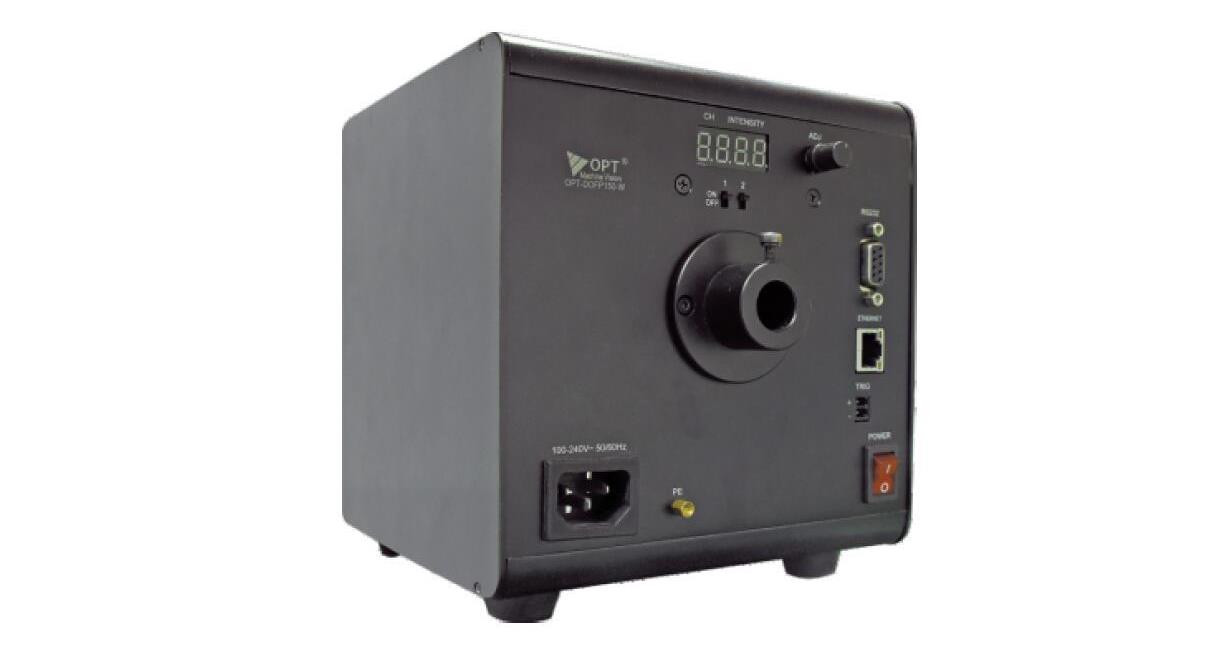

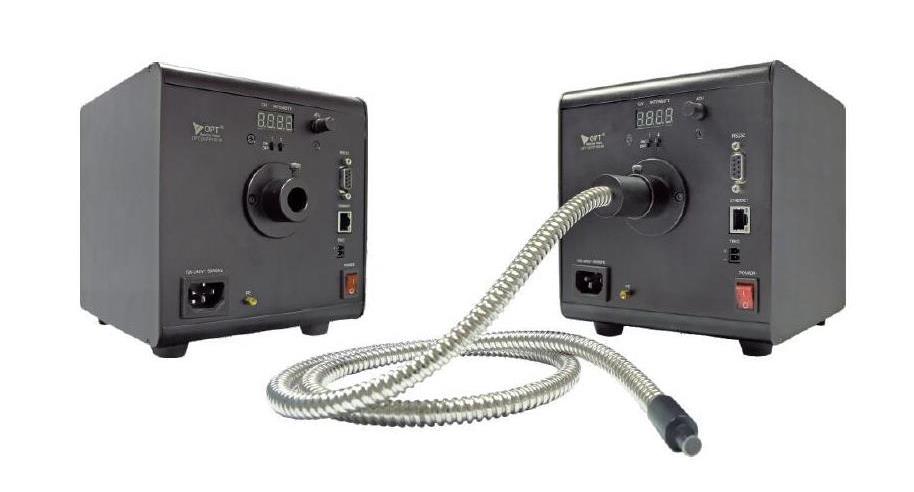

Example photo

To the product series

Product Features

  • Up to 2500 k lux illuminance
  • Integrated light control circuit design
  • Ethernet and RS232 interfaces
  • Programmable and external triggers available; up to 50 kHz trigger frequency

Application Cases

  • Replacement of halogen lights with fiber
  • Medical illumination
  • Semiconductor equipment
  • General industrial illumination


Documents for download:

2D Drawing of the Lighting
Series Catalogue with full details



More pictures of the product:

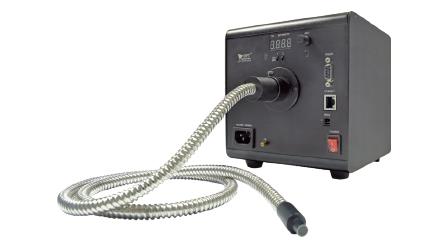

Example photo series back

Example photo series back

Example photo series

Example photo series

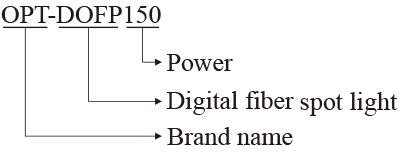

Selection Guide

Selection Guide

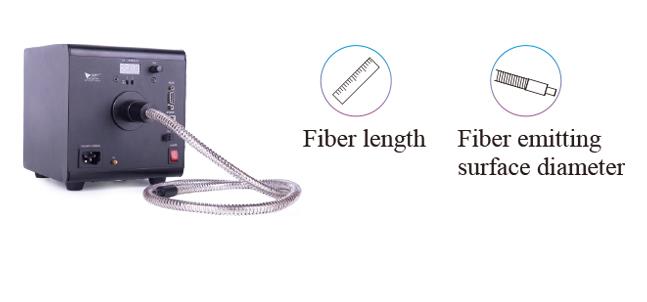

Customizable Items

Customizable Items

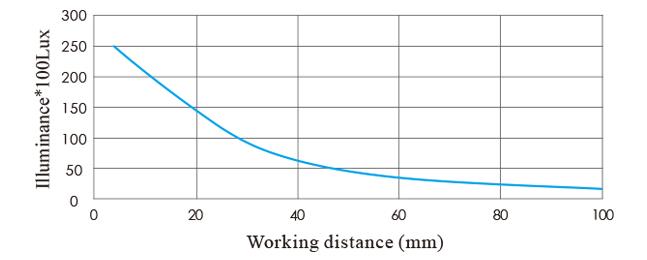

Illuminance Change over Working Distance

Illuminance Change over Working Distance

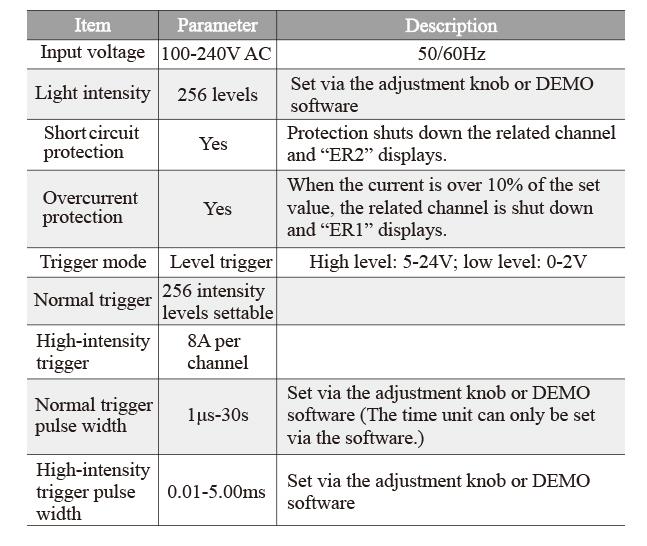

Specifications I

Specifications I

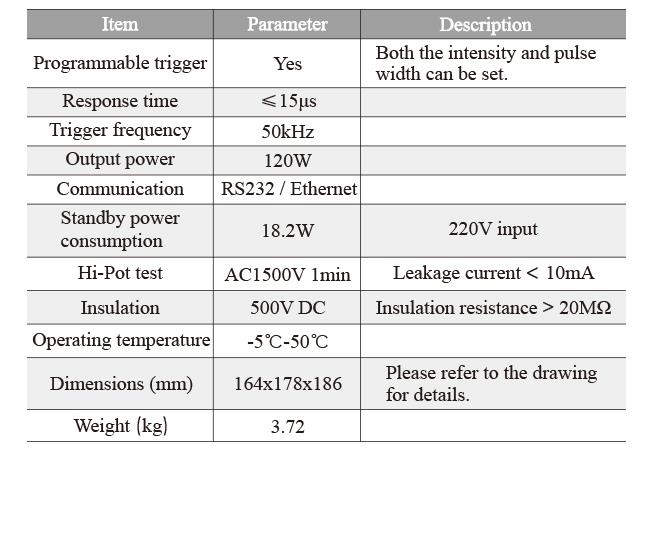

Specifications II

Specifications II

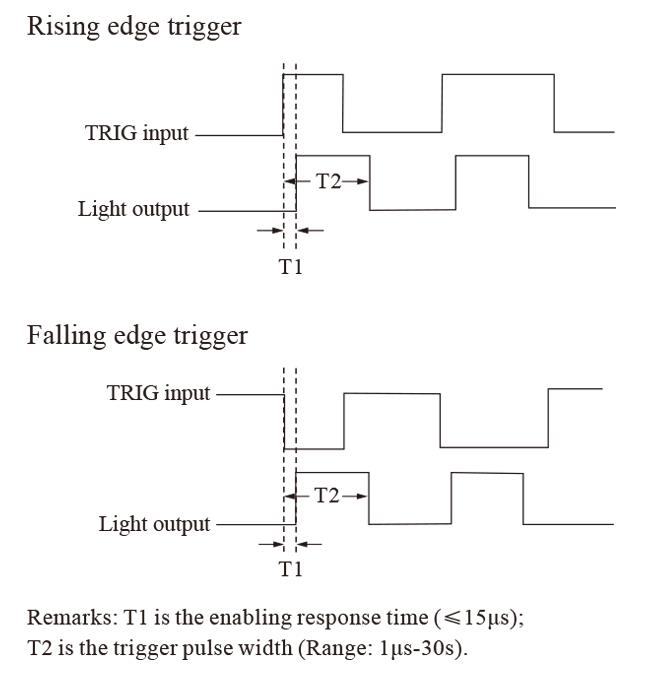

Response Time and Sequence

Response Time and Sequence

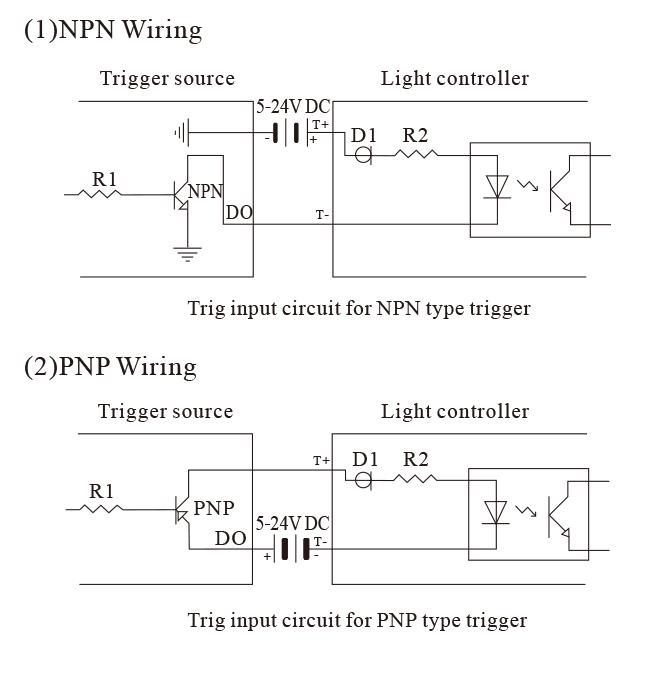

Trigger Wiring Reference

Trigger Wiring Reference

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 08.31.2020
