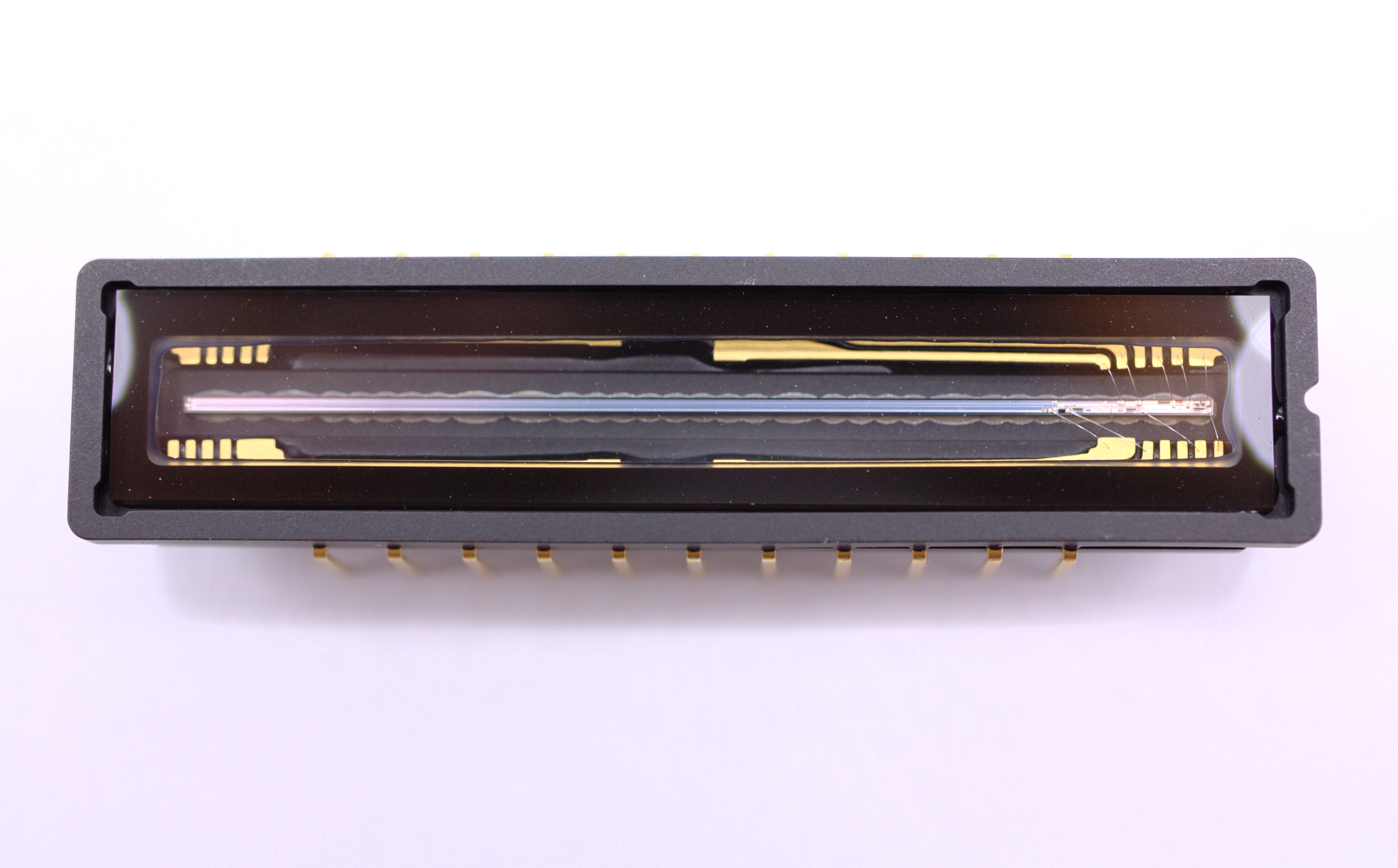

| Description | CCD linear sensor (B/W) by Toshiba |
| Articlenumber (Eureca): | 01.04.0069 |
| Origin: | Japan |
| Manufacturer: | Toshiba |
| Colour version | monochrome |
| Pixel number | 2048 |
| Pixel size x | 14 µm |
| Pixel size y | 14 µm |
| Sensitivity (V/lx･s) (B/W) | 31 |
| Dynamic range | 2000:1 |
| Maximum Data Rate monochrome [MHz] | 20 MHz |
| Supply Voltages | 12 V |
| Application scope | Barcode readers / OCR (Optical Character Reader) |
| Package | 22pin CERDIP |
| Linewidth [mm] | 28.70 mm |
| Features | High sensitive and low dark current PN photodiode |
| Remark | high speed |

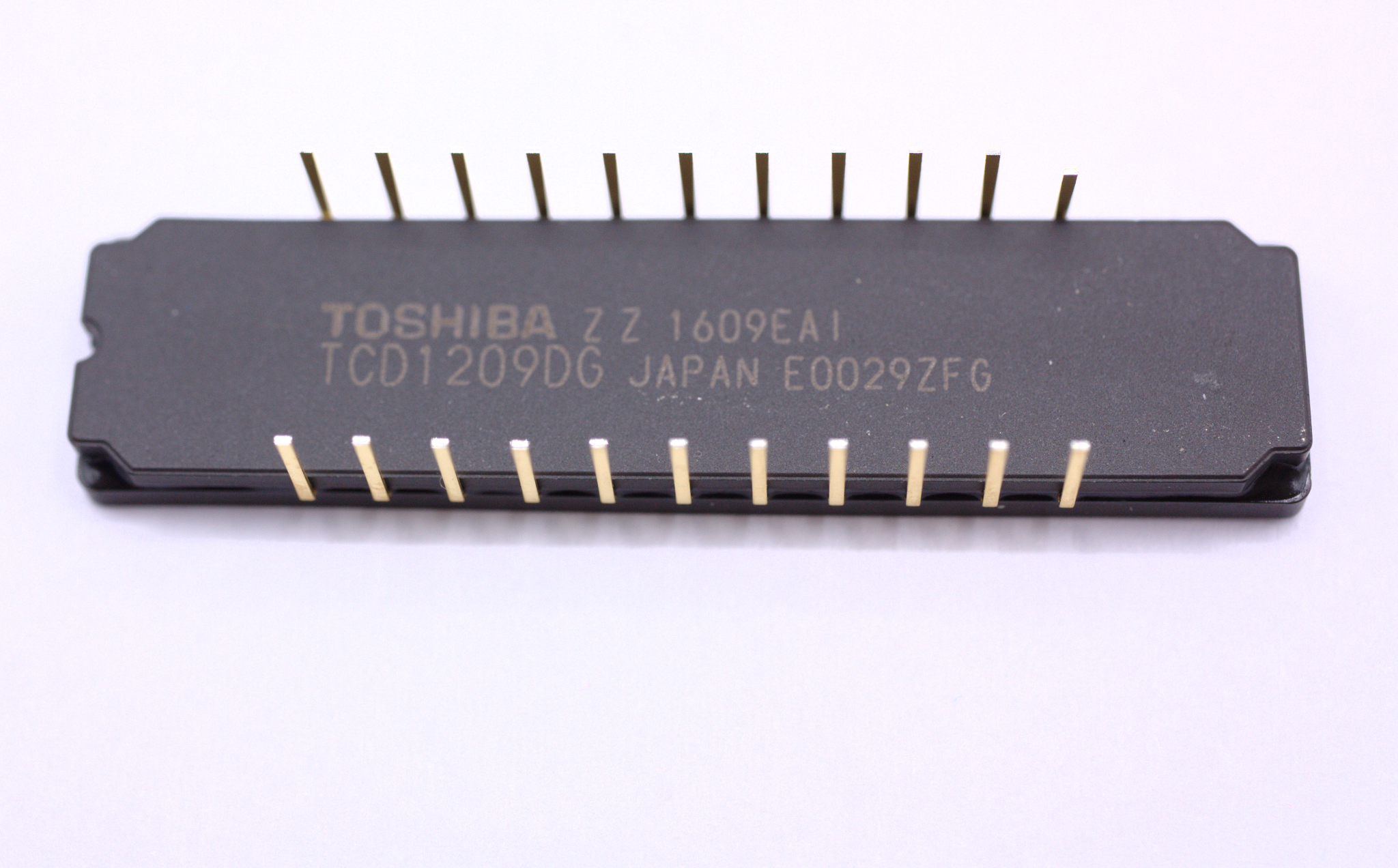

Rear view of the sensor (sample picture)
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 06.28.2020
