OPT-VCT20-4.5-0.10X

DescriptionColoretto Series Line Scan Lenses
Articlenumber (Eureca):06.23.0142
Origin: China
Manufacturer: OPT
Focal length21 mm
Aperture4.5–16
Image circle30 mm
MountV38
Weight0.14 kg
Working Distance510.7 mm
Working Distance206.2 mm
Working Distance90.7 mm
Primary Magnification0.04 ×
Primary Magnification0.10 ×
Primary Magnification0.22 ×
Distortion0.2 %
Distortion0.6 %
Distortion0.95 %
Flange distance30.5 mm
Flange distance31.8 mm
Flange distance34.3 mm
Object to image distance568.7 mm
Object to image distance265.5 mm
Object to image distance152.5 mm

To the product series

  • High resolution optical design, compatible to line scan camera with 7 µm pixel
  • Relative distortion is below 0.6 %
  • Broad spectrum range is from 400–700 nm and achromatic design
  • Suitable for up to 30 mm image circle of line and area scan camera

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Dimensional Drawnig of the lens
Optical Technical Data of the Lens

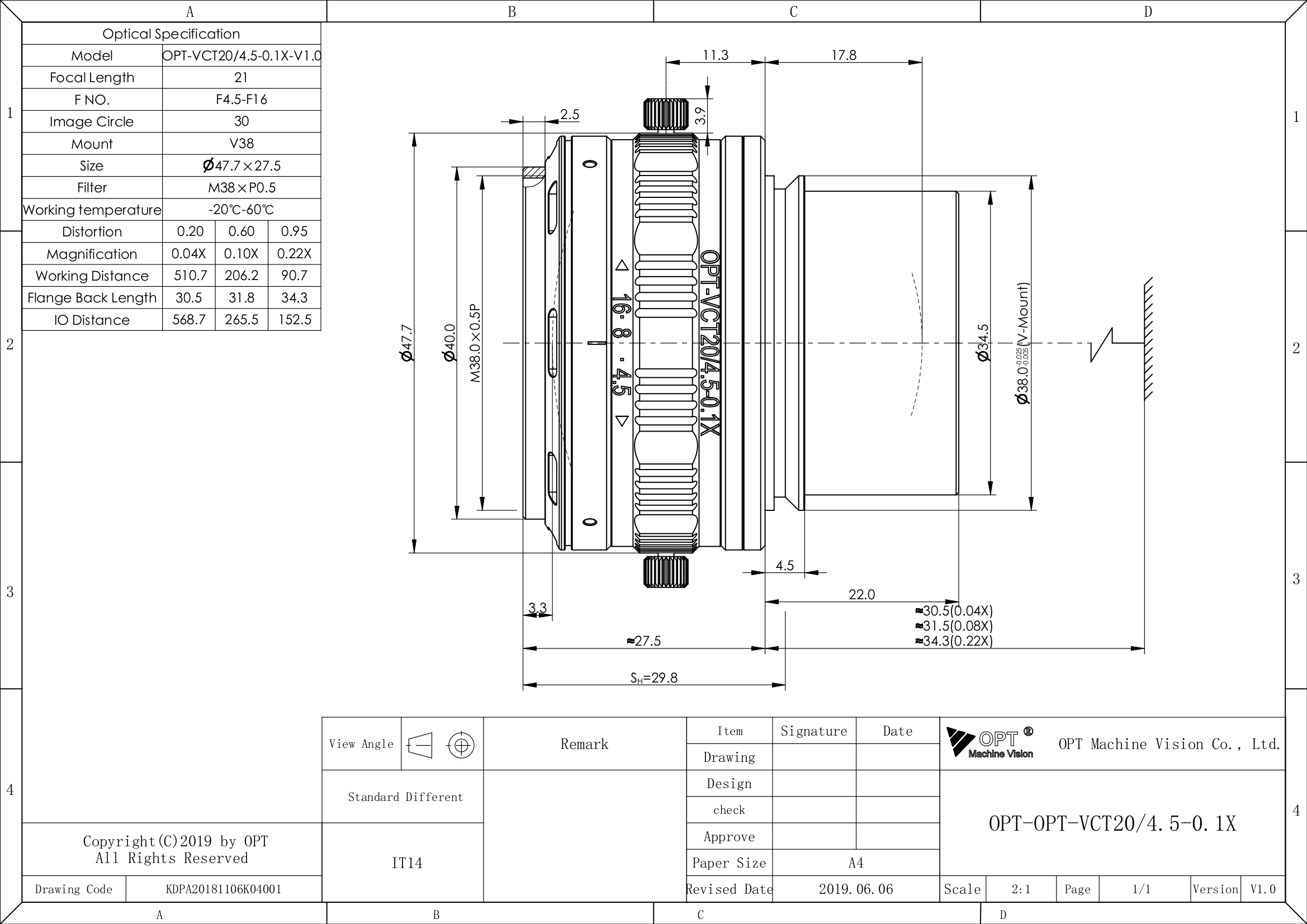

Dimensions


Other versions of the article and matching products:


Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 04.29.2021
