OPT-TS0230-330-AL

DescriptionTS Series Large FOV Bi-telecentric Lenses
Articlenumber (Eureca):06.23.0119
Origin: China
Manufacturer: OPT
Working Distance330±5 mm
Magnification0.230 ×
Image circle44 mm
Aperture10.3
Distortion0.1 %
Depth Of Field16.06 mm
MountF
Weight11.40 kg
FOV angle (2k×10µm)89.1 mm × mm
FOV angle (4k×7µm)124.8 mm × mm
FOV angle (8k×5µm)178.3 mm × mm
FOV angle (35mm full)157×104.8 mm × mm

To the product series

Remark: At the borders of the DOF the image still can be used for measurement. But only half of the nominal DOF can get sharp images.

  • Compatible with F/M-Mount cameras from 4/3"–59 mm
  • High resolution
  • Bi-telecentric design, high telecentricity
  • Large aperture, low distortion, and large depth of field (DOF)

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series

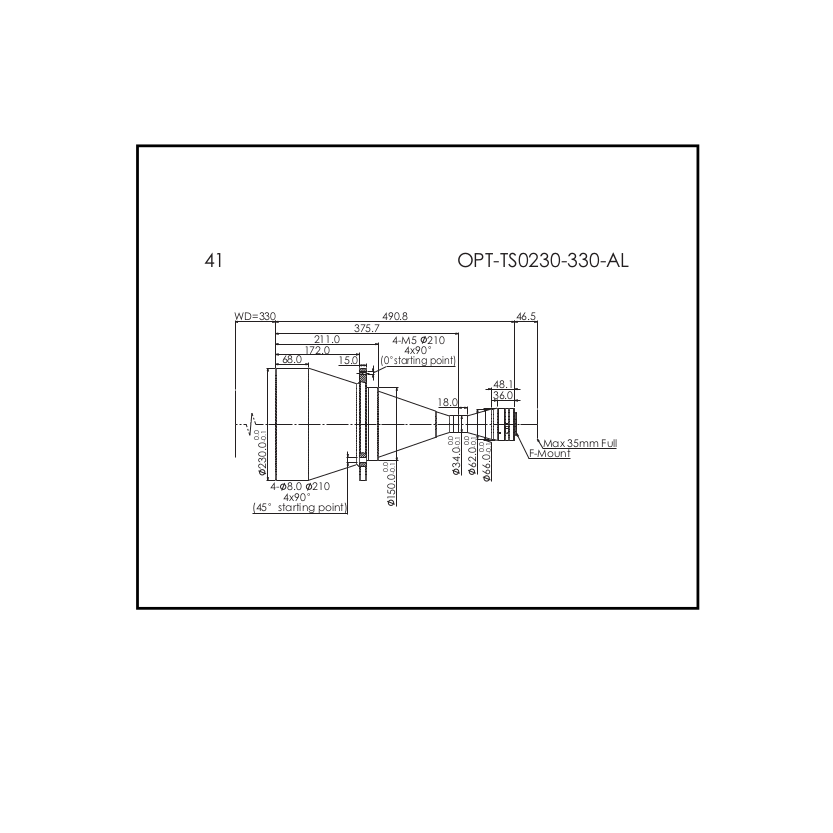

Dimensional Drawnig of the lens

Dimensions


Other versions of the article and matching products:

  • OPT-TS0060-330-AL: same series, same working distance, different magnification and aperture, C mount
  • OPT-TS0087-330-AL: same series, same working distance, different magnification and aperture, C mount

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
