OPT-KS03-180-118

DescriptionKS Series Large FOV Telecentric Lenses
Articlenumber (Eureca):06.23.0129
Origin: China
Manufacturer: OPT
Working Distance180±2 mm
Magnification0.3 ×
Image circle9 mm
Aperture8
Distortion0.1 %
Depth Of Field7.33 mm
MountC
FOV angle (1/2.5″)19×14 mm × mm
FOV angle (1/1.8″)24×18 mm × mm

To the product series

  • Low magnification and large field of view
  • High resolution, low distortion, and max compatible with 1.1" sensor
  • Long working distance, good for light installation
  • Object-space telecentric design

For more information on matching sensor formats and fields of view, please refer to the datasheet.







Documents for download:

Datasheet of the lens series
Dimensional Drawnig of the lens

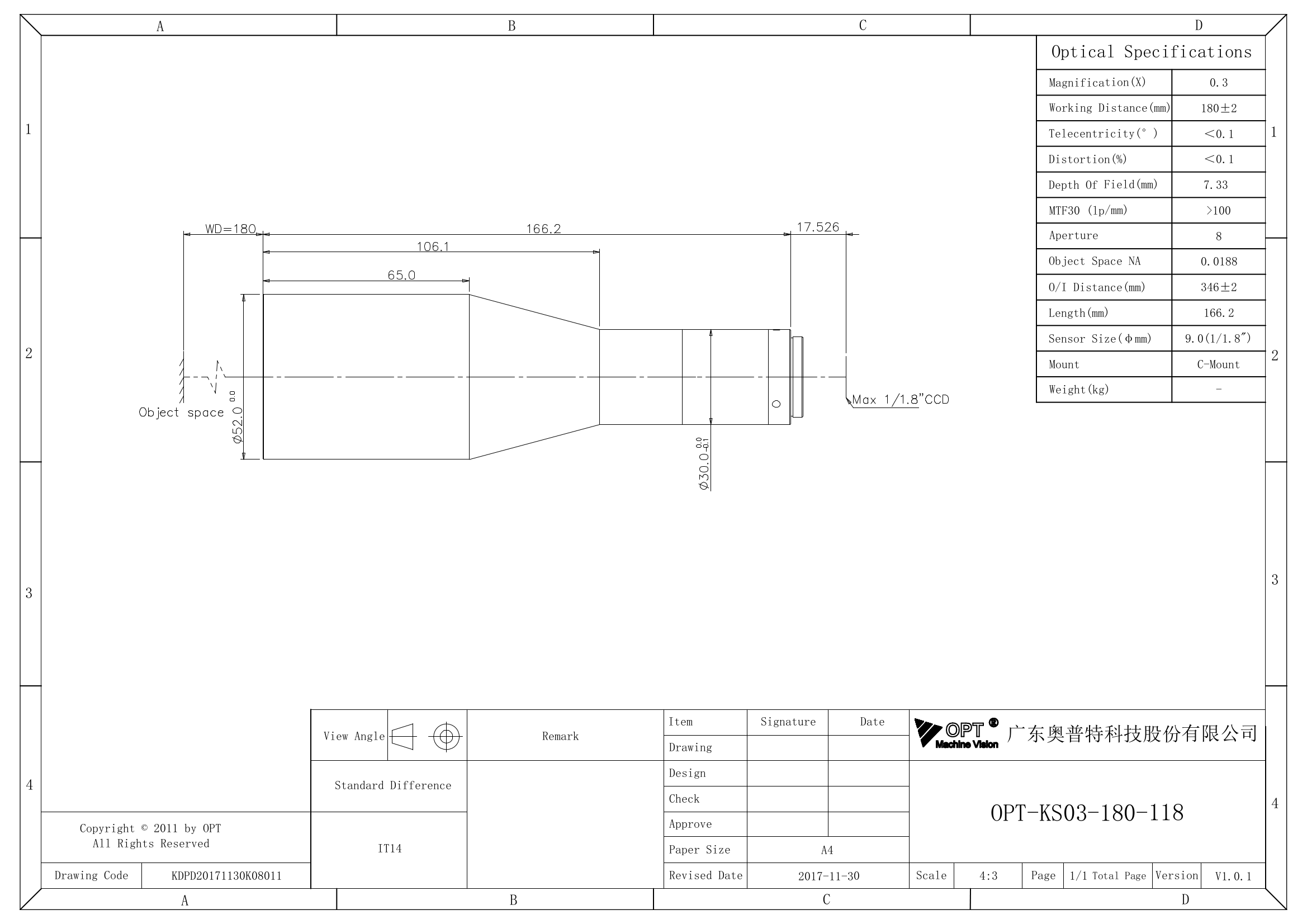

Dimensions

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 05.04.2021
