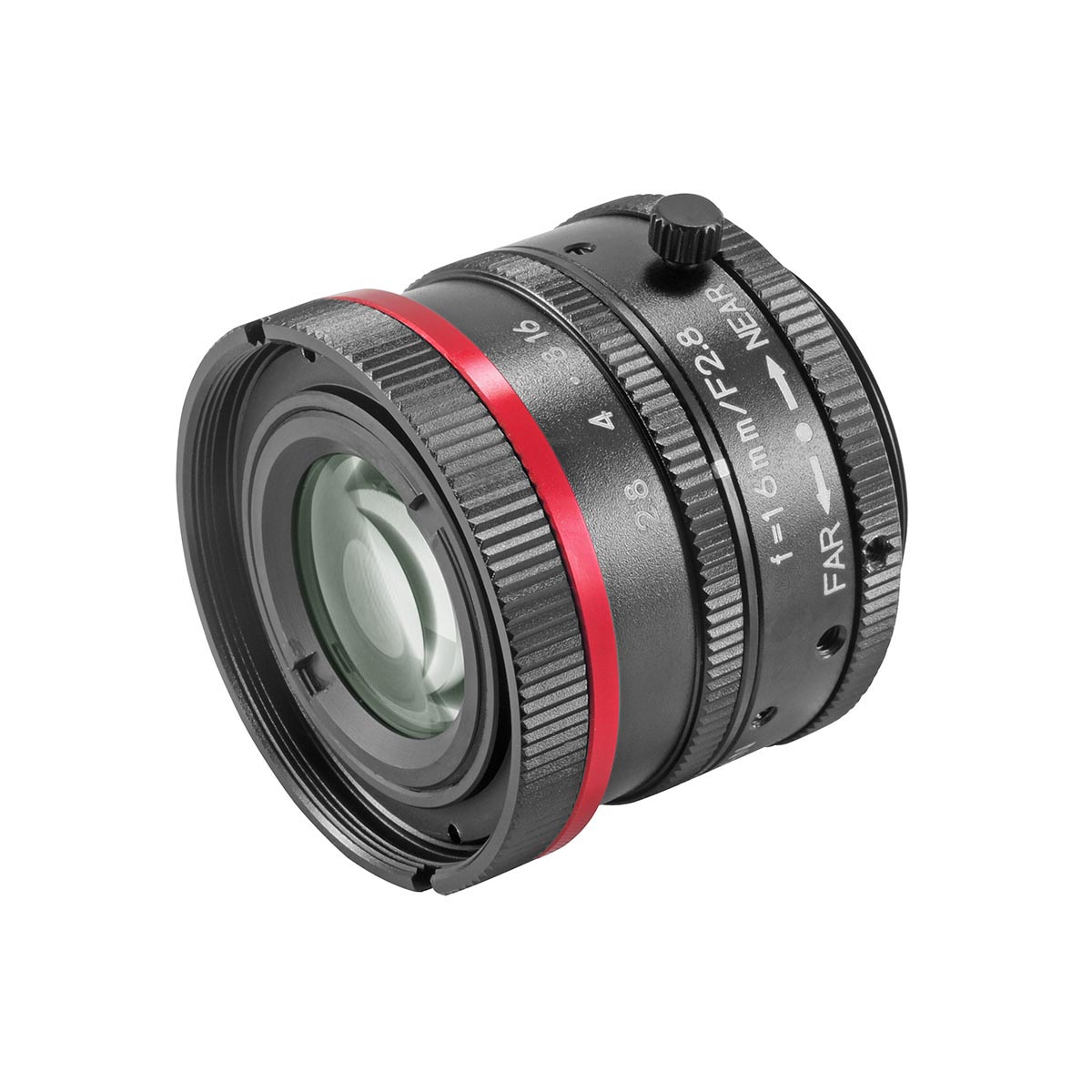

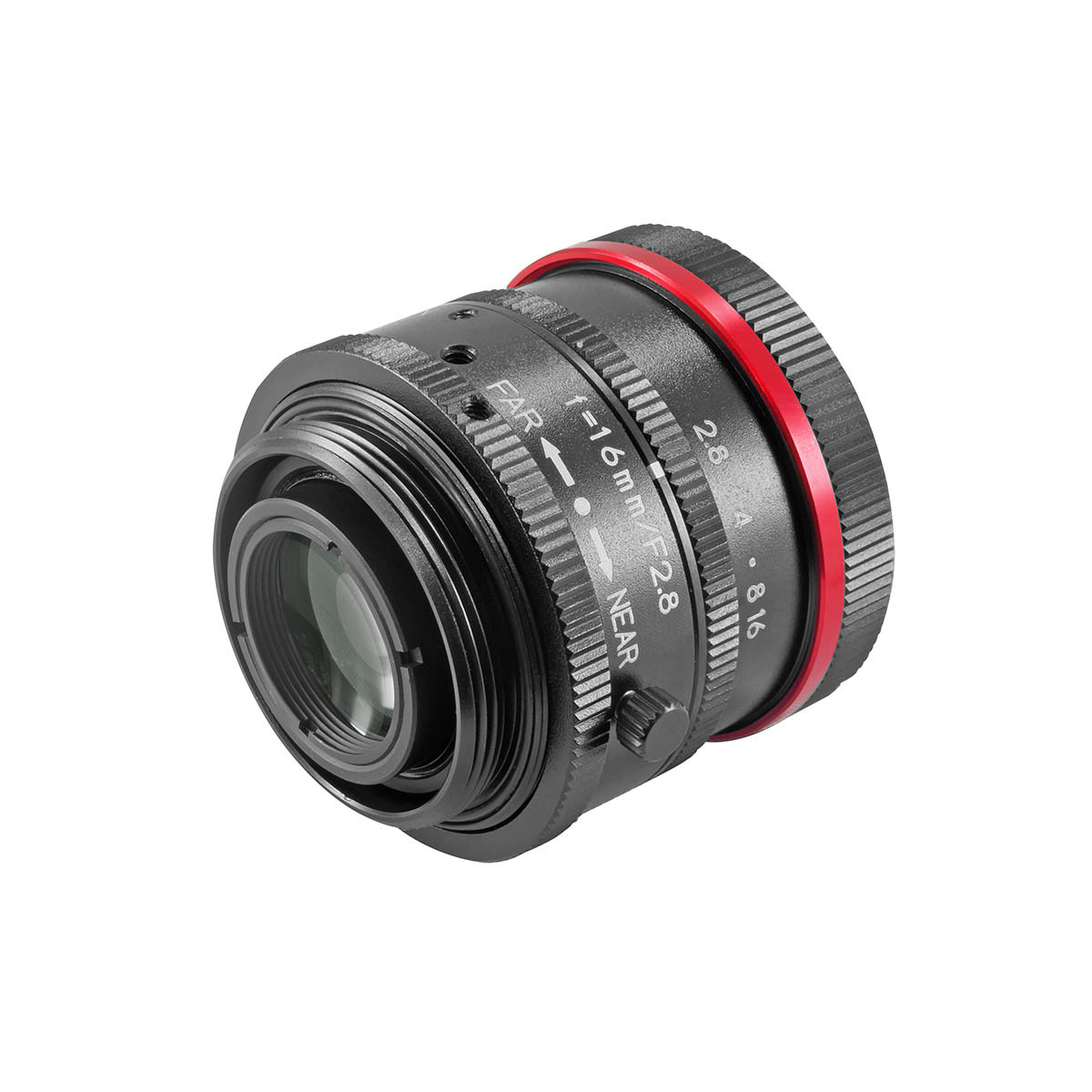

| Description | Lens by Kowa |
| Articlenumber (Eureca): | 06.17.0319 |
| Origin: | Japan |
| Manufacturer: | Kowa |
| Focal length | 16 mm |
| Pixel size | 3.45 µm |
| Mount | C-Mount |
| Iris Control | Manual |
| Aperture | F2.8 |
| Design Wavelength | Peak Coating 400–1000 nm |
| Focus range [m] | 0.2–∞ m |
| Focus Control | Manual |
| Shooting range at MOD, horizontal | 117 mm |
| Shooting range at MOD, vertical | 88 mm |
| Distortion | −0.09 % |
| Backfocus [mm] | 14.7 mm |
| Dimension [mm] | Ø33 × 27.1 |
| Weight | 50 g |
| Operating Temperature | −10 °C – +50 °C |
Documents for download:
Datasheet
Field Curvature / Distortion
MTF
Relative Illumination
Transmission data
More pictures of the product:
Other versions of the article and matching products:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
