LM3JC10M

DescriptionLens by Kowa
Articlenumber (Eureca):06.17.0310
Origin: Japan
Manufacturer: Kowa
Focal length3.7 mm
Sensor format2/3 ″
Pixel size2.5 µm
MountC-Mount
Iris ControlManual
ApertureF2.8–F16
Design WavelengthBroad Band Coating 400–1000 nm
Focus range [m]0.1–∞ m
Focus ControlManual
Shooting range at MOD, horizontal278.7 mm
Shooting range at MOD, vertical207.3 mm
Distortion−0.09 %
Backfocus [mm]9.9 mm
Filter threadM55 × P0.75
Dimension [mm]Ø57 × 54
Weight120 g
Operating Temperature−10 °C – +50 °C

To the product series

High resolution lenses for industrial image processing.

  • 2/3″ 10 Megapixel C-mount Industrial Lens
  • For sensors with a pixel size from 2.5 µm
  • Suitable for Sony IMX250, Sony IMX264 and Aptina MT9D131 sensors and many more
  • Floating mechanism to eliminate optical aberrations
  • Broadband Coating: Transmission from VIS to NIR
  • Application: Broadcast, Machine Vision




Documents for download:

Datasheet
Field Curvature / Distortion
MTF
Relative Illumination
Transmission data



More pictures of the product:

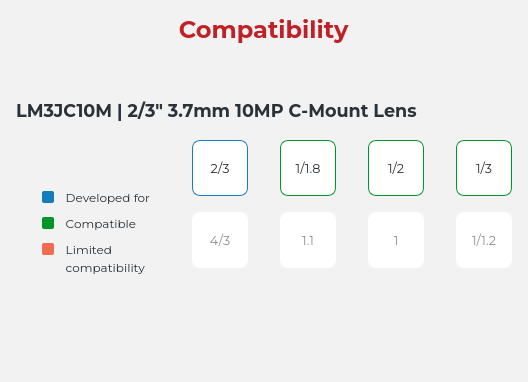

Compatible sensor sizes (inch)

Compatible sensor sizes (inch)

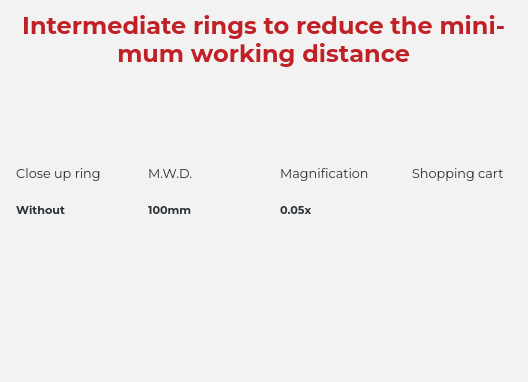

Compatible intermediate rings

Compatible intermediate rings


Other versions of the article and matching products:

  • LM5JC10M: same series, next larger focal length (5 mm)

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 01.28.2026
