GLT5009BSI

DescriptionCMOS sensor by Gpixel
Articlenumber (Eureca):01.32.0238
Origin: China
Manufacturer: Gpixel Inc.
Resolution9 kPix
Pixel number (H × V)9072 × (256 + 32)
Pixel size5 × 5 µm
Format (Length)45.36 mm
Line Rate600 kHz
ShutterGlobal
ChromaMonochrome
Photosensitive area45.36 × 1.44 mm × mm
Linear Full Well Capacity>16 ke
Temporal Noise<8 e
Dynamic range66 dB
Peak QET. B. D. %
Angular ResponseT. B. D. °
Dark currentT. B. D. e/pixel/sec
Output Format66 pairs LVDS data, 2 pair DDR clock, 2 pair control
Channel Multiplexing42/21/12/6/3
Power Consumption6 (12bit) / 9 (10bit) W

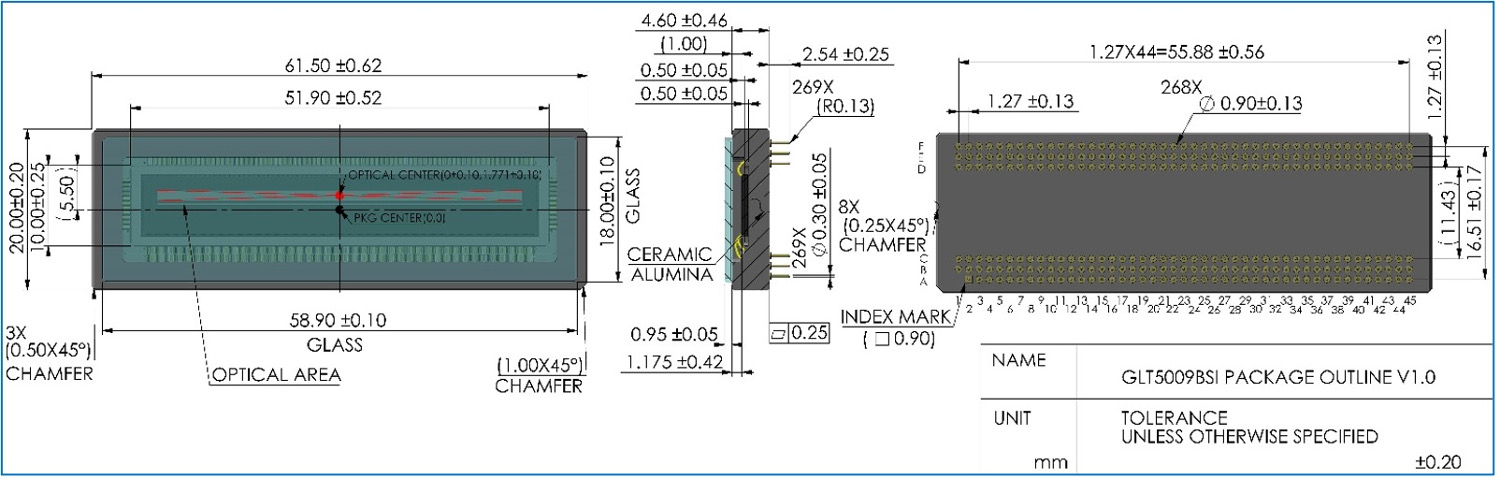

Package269-pins µPGA
Preliminary

To the product series

GLT5009BSI 9 k BSI TDI (time delay integration) Line Scan Image Sensor.

We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!






Documents for download:

Sensor Flyer
Compatible Sockets from Andon Electronics

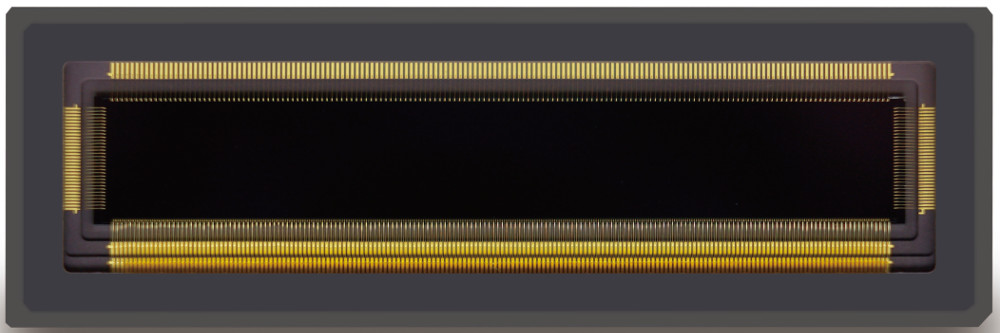

More pictures of the product:

Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.

Last update: 07.21.2022
