| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0236 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 21 MPix |
| Pixel number (H × V) | 5120 × 4096 |
| Pixel size | 4.5 × 4.5 µm |
| Format | APS-C mm |
| Frame Rate (10bit) | 500 fps |
| Frame Rate (12bit) | 250 fps |
| Shutter | Global |
| Chroma | Mono, RGB Color |
| Photosensitive area | 23 × 18.4 mm × mm |
| Linear Full Well Capacity | 30 (low gain) ke− |
| Temporal Noise | <3 (high gain) @ 12bit e− |
| Dynamic range | 69 @ 12bit dB |
| Peak QE | T. B. D. % |
| Angular Response | T. B. D. ° |
| Dark current | T. B. D. e−/pixel/sec |
| Supply Voltages | 3.3 V, 1.8 V, 1.2 V |
| Output Format | 160 ch sLVDS |
| Power Consumption | 6–7 W |

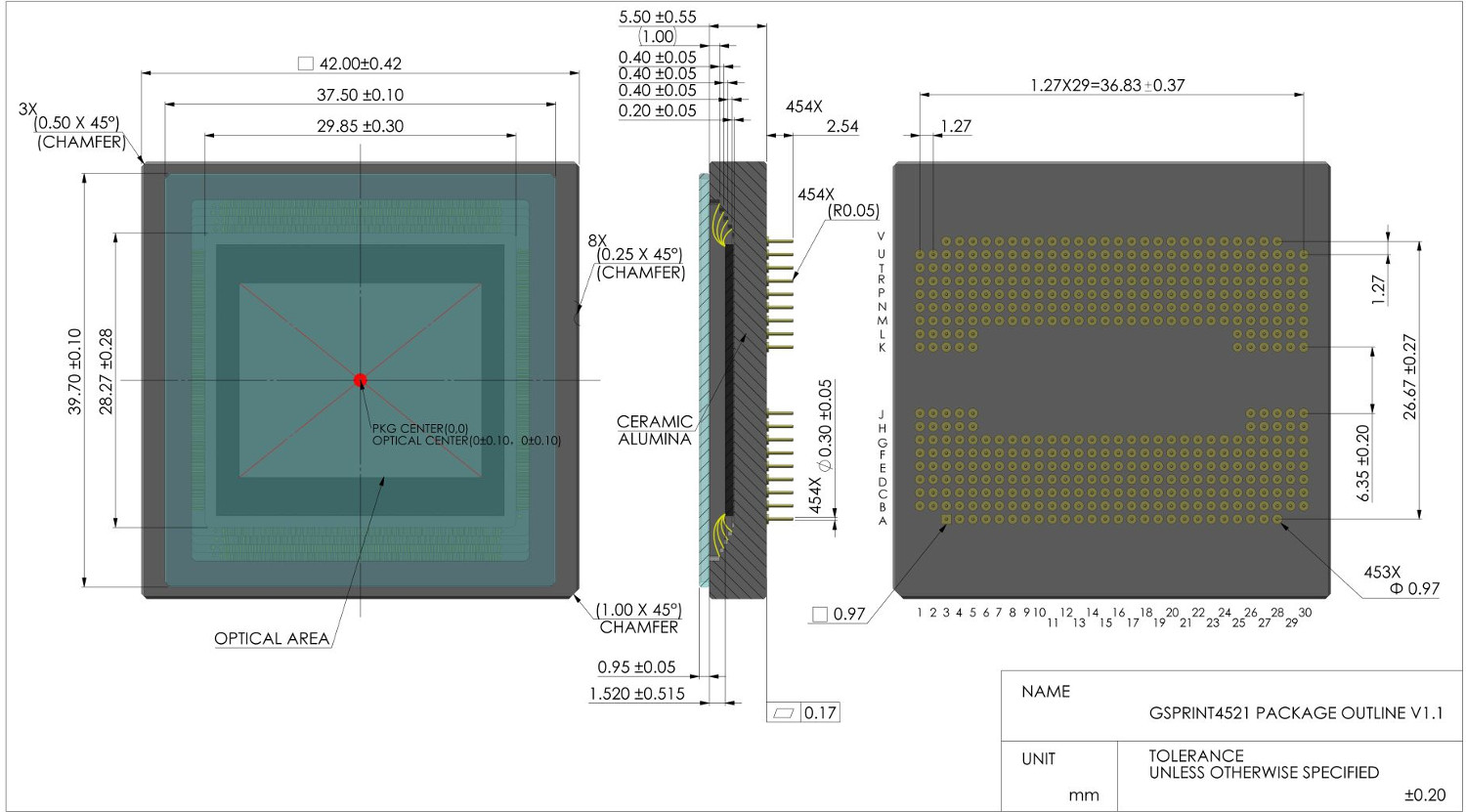

| Package | 454-pin µPGA |
| Preliminary | ✔ |
| On request only | (✔) |
| Evaluation board available | ✔ |

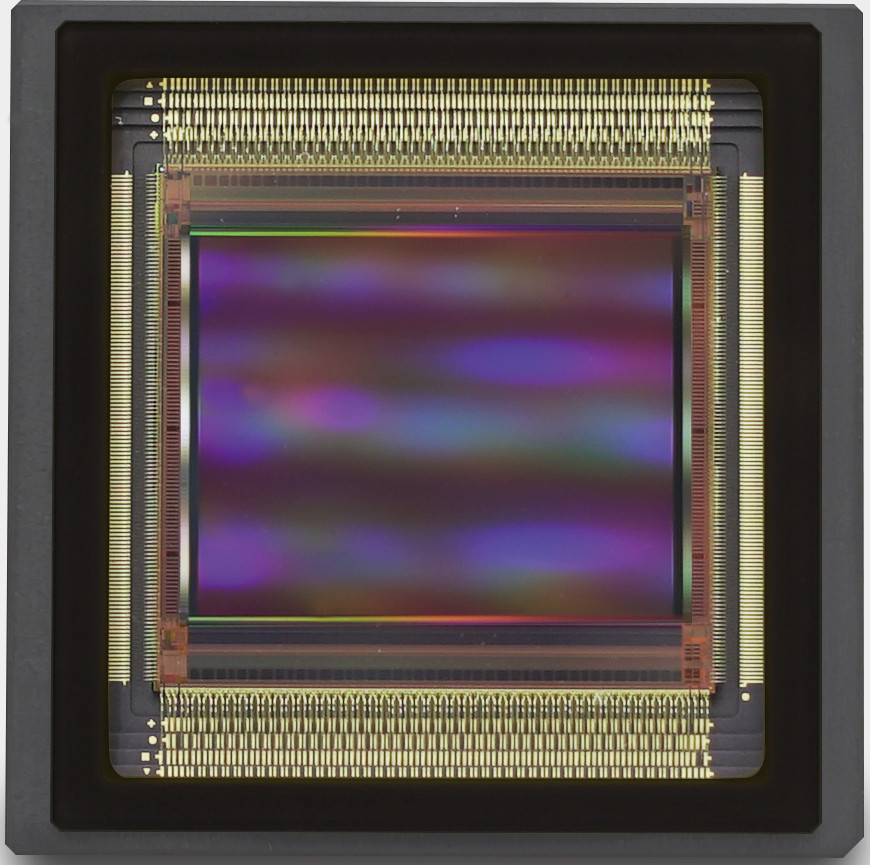

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
