| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0235 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 10 MPix |
| Pixel number (H × V) | 4608 × 2176 |
| Pixel size | 4.5 × 4.5 µm |
| Format | 20.74 × 9.79 mm |
| Frame Rate (10bit) | 1008 fps |
| Frame Rate (12bit) | 500 fps |
| Shutter | Global |
| Chroma | Mono, RGB Color |
| Photosensitive area | 20.74 × 9.79 mm × mm |
| Linear Full Well Capacity | 30 ke− |
| Temporal Noise | <3 e− |
| Dynamic range | 69 dB |
| Peak QE | >67 % |
| Angular Response | 17 (80 % response) ° |
| Dark current | 11.4 @ 50 °C e−/pixel/sec |
| Supply Voltages | 3.3 V analog, 1.8 V I/O, 1.2 V digital, Dedicated pixel voltages |
| Output Format | 144 ch sub-LVDS @ 1.2 Gbps |
| Power Consumption | 5–6 (full res, full fps) W |

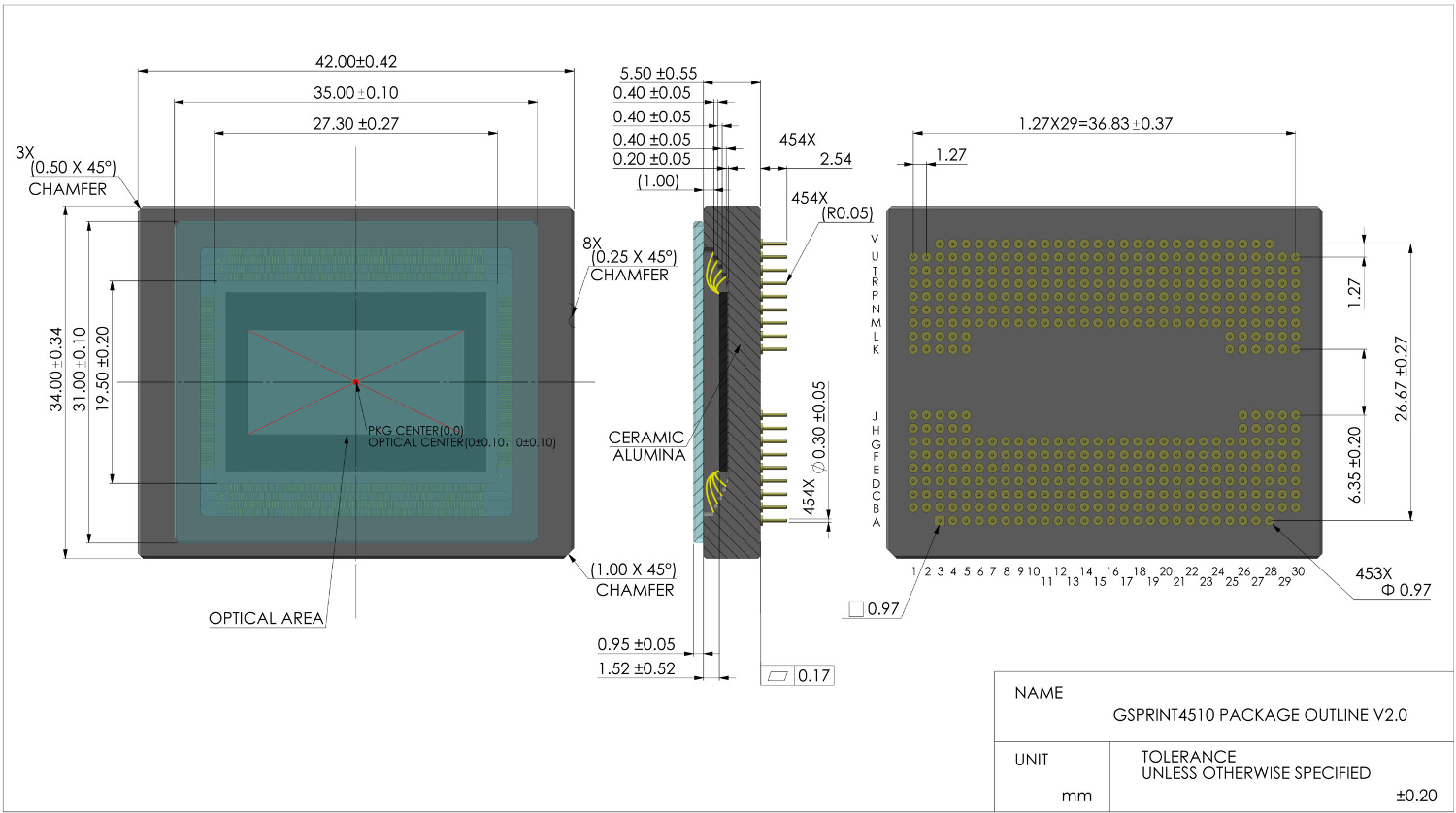

| Package | 454-pin µPGA |
| Preliminary | ✔ |
| On request only | (✔) |

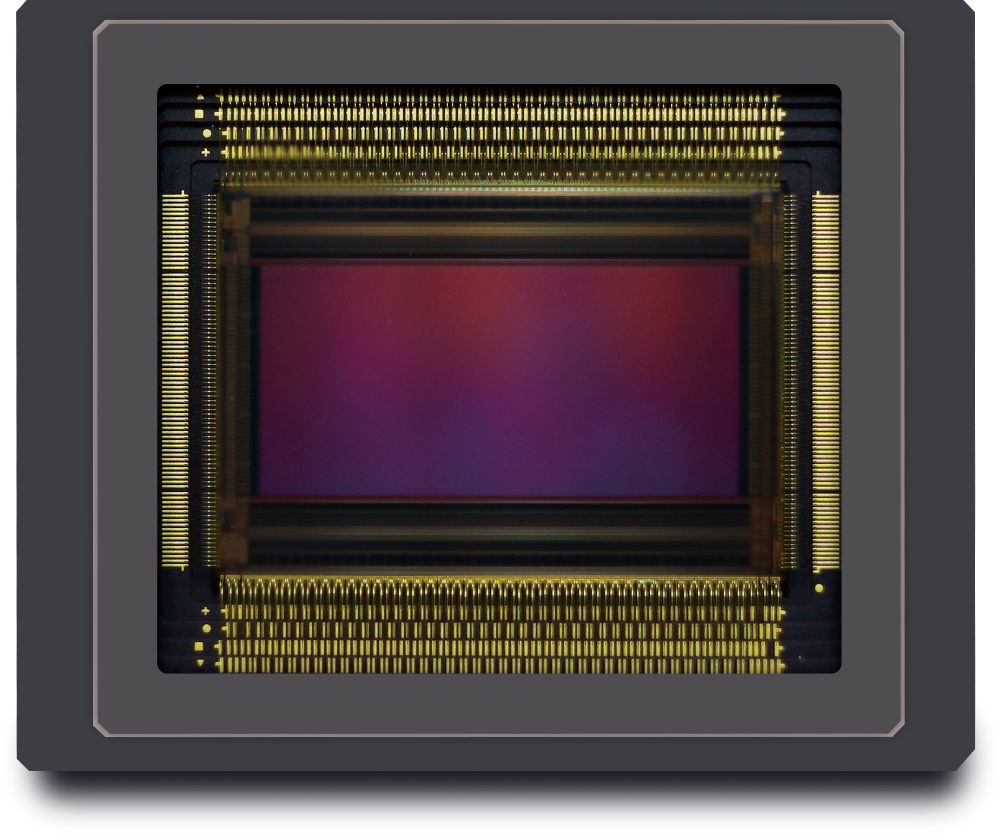

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
