| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0232 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 103 MPix |
| Pixel number (H × V) | 11276 × 9200 |
| Pixel size | 3.2 × 3.2 µm |
| Format | 2.9 ″ |
| Format | 36.1 × 29.4 mm |
| Format (Diameter) | 46.6 mm |
| Frame Rate (12bit) | 24 fps |
| Shutter | Global |
| Chroma | Mono, RGB Color |
| Photosensitive area | 36.1 × 29.4 mm × mm |
| Linear Full Well Capacity | 9 @ PGA Gain ×1.4 ke− |
| Temporal Noise | 4.3 @ PGA Gain ×1.4 e− |
| Dynamic range | 66.4 dB |

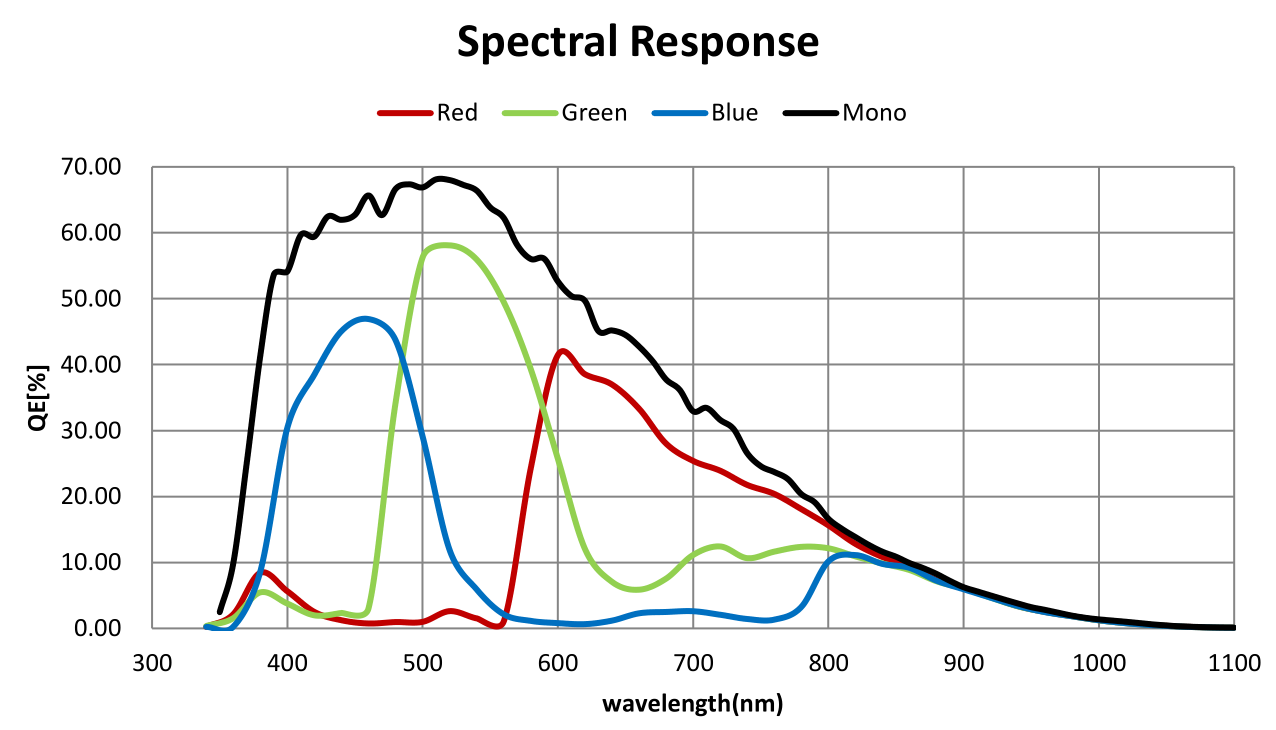

| Peak QE | 68 @ 510 nm % |
| Parasitic Light Sensitivity | 1/15.000 dB |
| Angular Response | t. b. d. ° |
| Dark current | 12 @ 50°C e−/pixel/sec |
| Supply Voltages | 3.3 V / 1.8 V / 1.1 V |

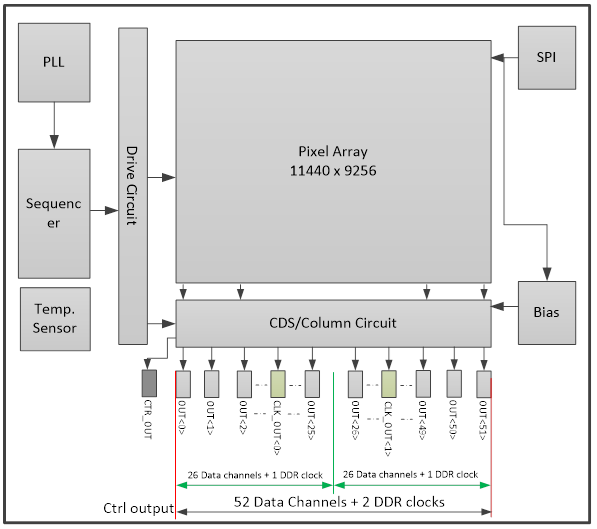

| Output Format | 52 channels of sub LVDS |
| Channel Multiplexing | 52/26/18/14/10/8/6 |
| Power Consumption | 2.47 W |

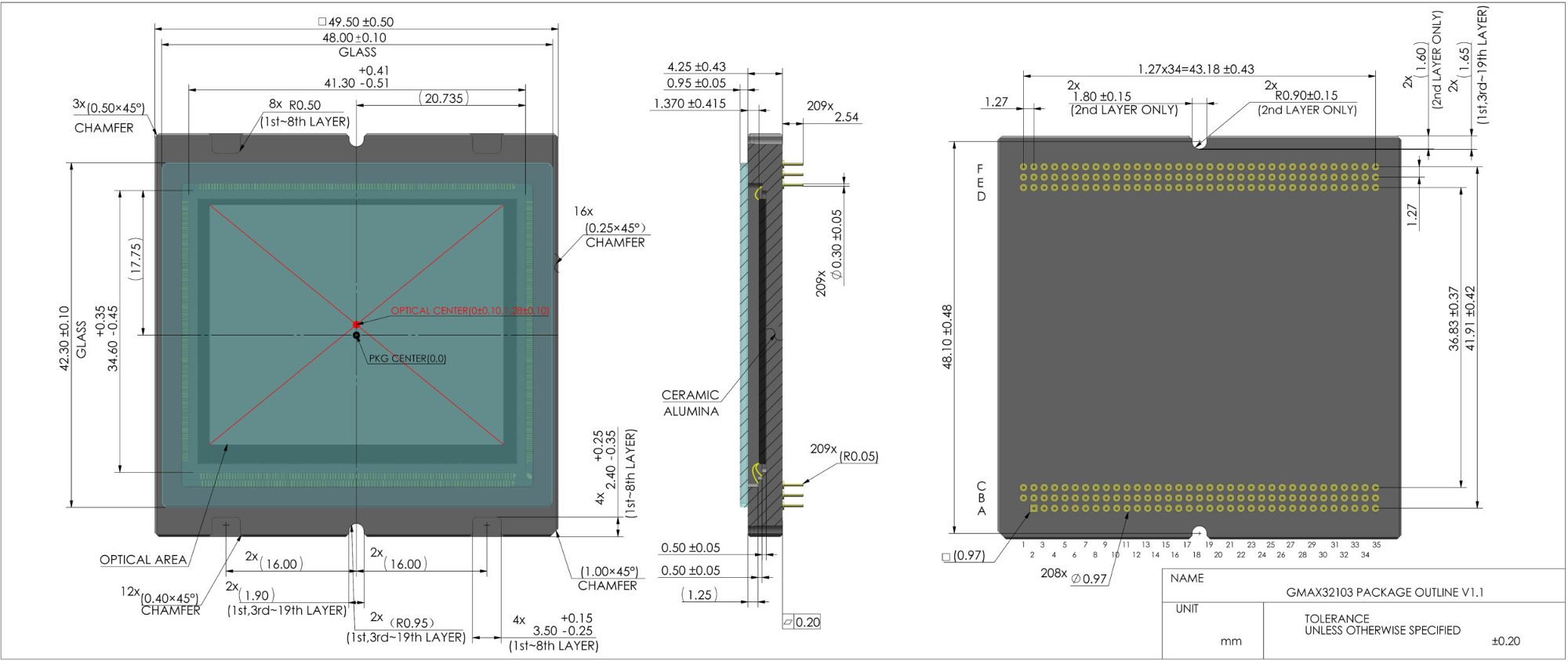

| Package | 209 pins µPGA |
| Preliminary | ✔ |
| On request only | ✔ |
| Evaluation board available | ✔ |
GMAX32103 3.2 µm 103 MP Global Shutter image sensor. This sensor is available in different versions, for example:
Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:

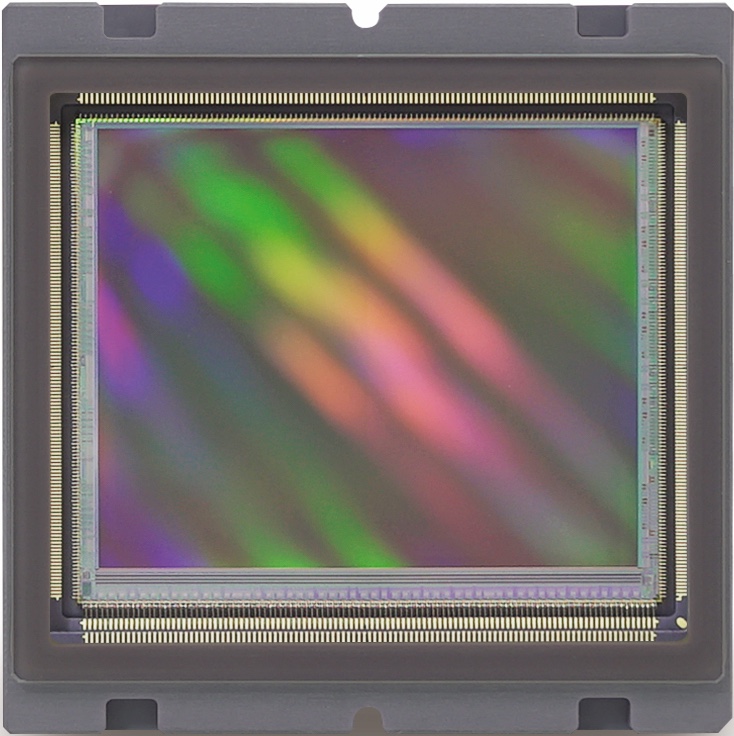

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
