GMAX2518

DescriptionCMOS sensor by Gpixel
Articlenumber (Eureca):01.32.0231
Origin: China
Manufacturer: Gpixel Inc.
Resolution18 MPix
Pixel number (H × V)4508 × 4096
Pixel size2.5 × 2.5 µm
Format1"
Format11.3 × 10.2 mm
Format (Diameter)15.2 mm
Frame Rate150 (10bit), 64 (12bit) fps
ShutterGlobal
ChromaMono, Color
Photosensitive area11.3 × 10.2 mm × mm
Linear Full Well Capacity8 ke−
Temporal Noise1.6 e−
Dynamic range66 dB
Peak QE65.5 (mono with microlens) %
Parasitic Light Sensitivity−80 dB
Angular ResponseT. B. D. °
Dark current1.2 @ 30 °C e−/pixel/sec
Supply Voltages3.3 V / 1.3 V for analog, 1.8–3.3 V for IO, 1.3 V for digital
Output Format32 pairs of sub-LVDS
Channel Multiplexing32/16/12/8/4/2
Power Consumption<1.5 W
Package226 pins LGA
Preliminary✔
On request only(✔)

To the product series

GMAX2518 18 MP 2.5 µm Global Shutter CMOS Image Sensor. This sensor is available in different versions, for example:

  • GMAX2518-AVM-HLT-AUX: Monochrome, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, High speed version, 150 fps @ 10bit 32× LVDS
  • GMAX2518-AVC-HLT-AUX: RGB Bayer Color, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, High speed version, 150fps @ 10bit 32× LVDS
  • GMAX2518-AVM-NLT-AUX: Monochrome, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, Normal speed version, 64 fps @ 12 bit 16× LVDS
  • GMAX2518-AVC-NLT-AUX: RGB Bayer Color, microlens, ceramic 226 pins LGA, Sealed D263T glass with no AR coating, Normal speed version, 64 fps @ 12 bit 16× LVDS

Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!





Documents for download:

Sensor Flyer
Compatible Sockets from Andon Electronics

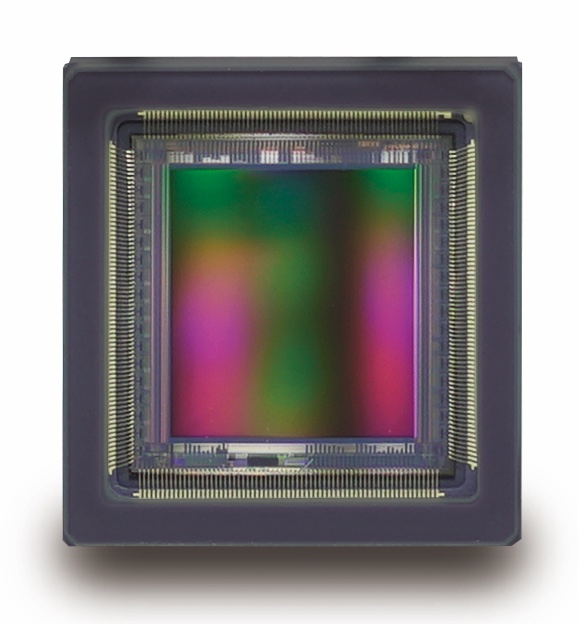

More pictures of the product:

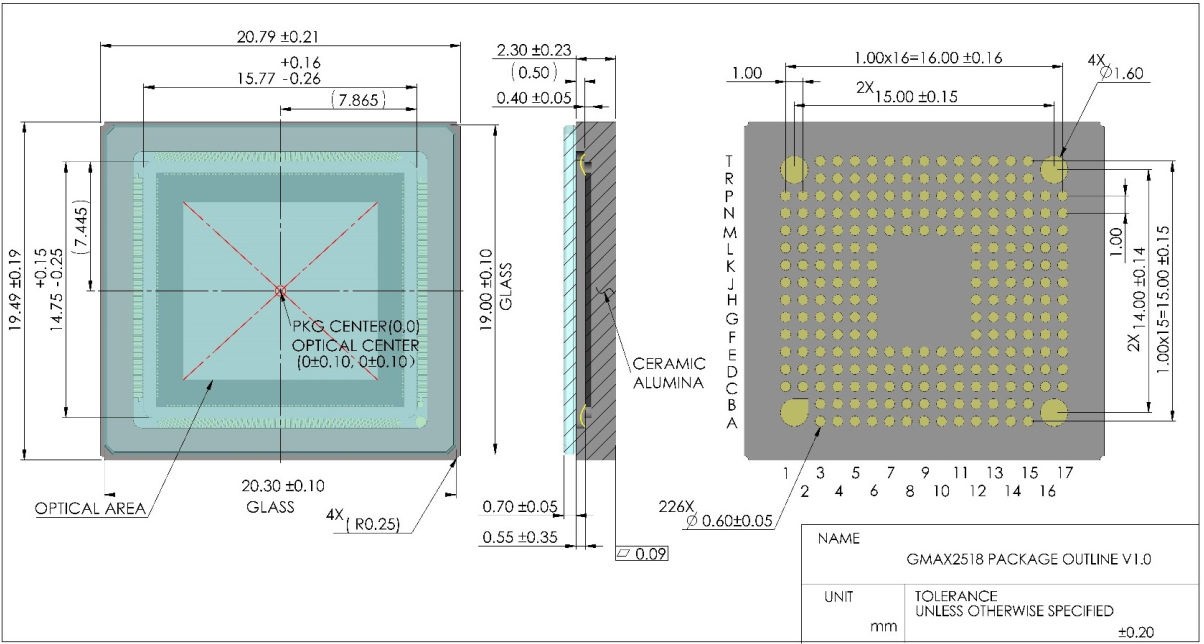

Package Drawing

Package Drawing

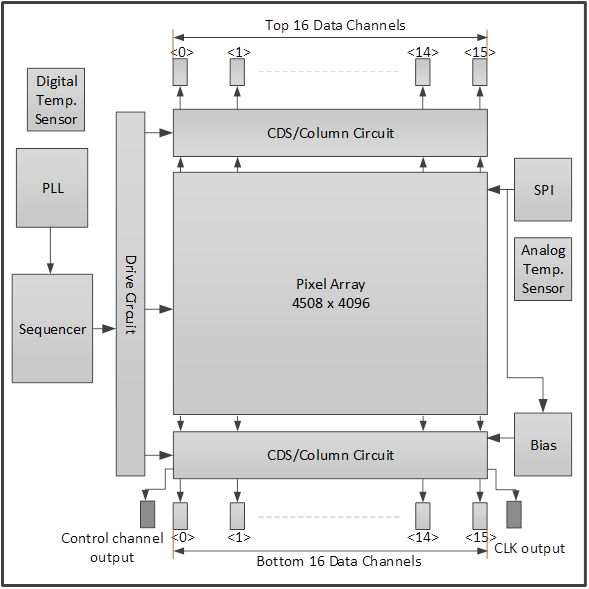

Block diagram

Block diagram
