| Description | CMOS sensor by Gpixel |
| Articlenumber (Eureca): | 01.32.0230 |
| Origin: | China |
| Manufacturer: | Gpixel Inc. |
| Resolution | 152 MPix |
| Pixel number (H × V) | 16556 × 9200 |
| Pixel size | 3.2 × 3.2 µm |
| Format | 3.7" |
| Format | 53.0 × 29.4 mm |
| Format (Diameter) | 60.6 mm |
| Frame Rate | 16 fps |
| Shutter | Global |
| Chroma | Mono, RGB Color |
| Photosensitive area | 53.0 × 29.4 mm × mm |
| Linear Full Well Capacity | 9.3 @ PGA Gain ×1.4 ke− |
| Temporal Noise | 4 @ PGA Gain ×1.4 e− |
| Dynamic range | 67.3 @ PGA Gain ×1.4 dB |

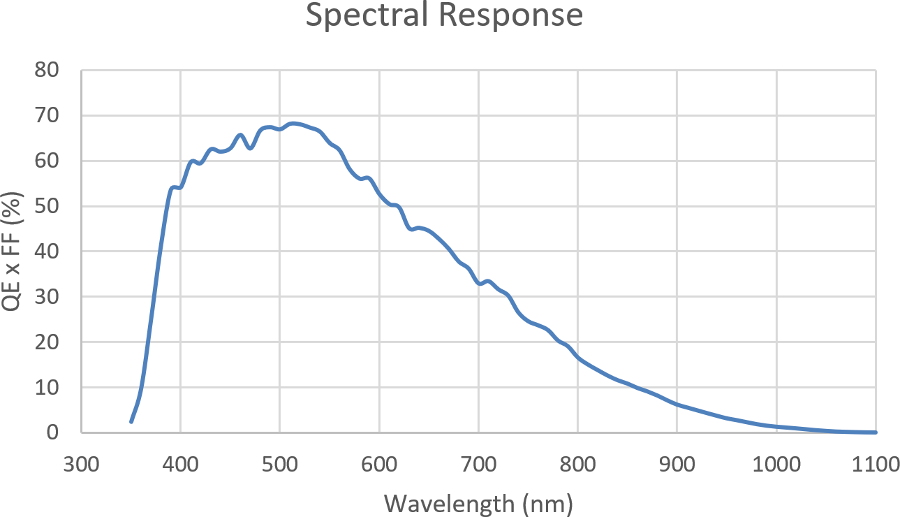

| Peak QE | 66.9 @ 500nm @ mono (T. B. D.) % |
| Parasitic Light Sensitivity | <−83.5 (CRA dependent) dB |
| Angular Response | 15 ° |
| Dark current | 12 @ 47°C e−/pixel/sec |
| Supply Voltages | 3.3 V / 1.3 V for analog, 2.5–3.3 V for IO, 1.2 V for digital |

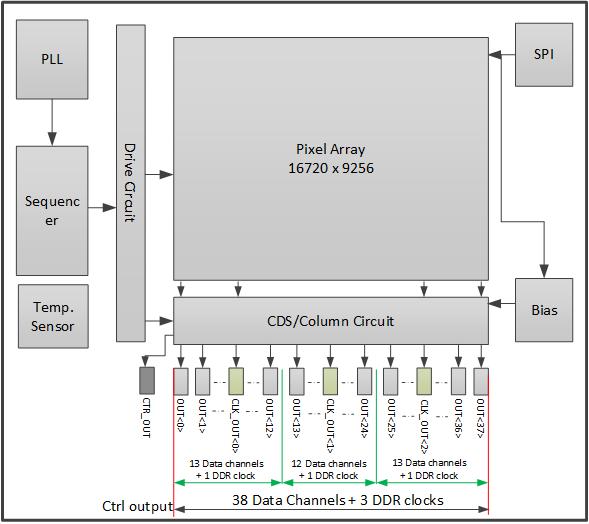

| Output Format | 38 pairs Sub-LVDS data output, 3 pairs of DDR clock output, 1 pair CTRL channel |
| Channel Multiplexing | 38/20/14/11/8/5 |
| Power Consumption | <2.8 W |

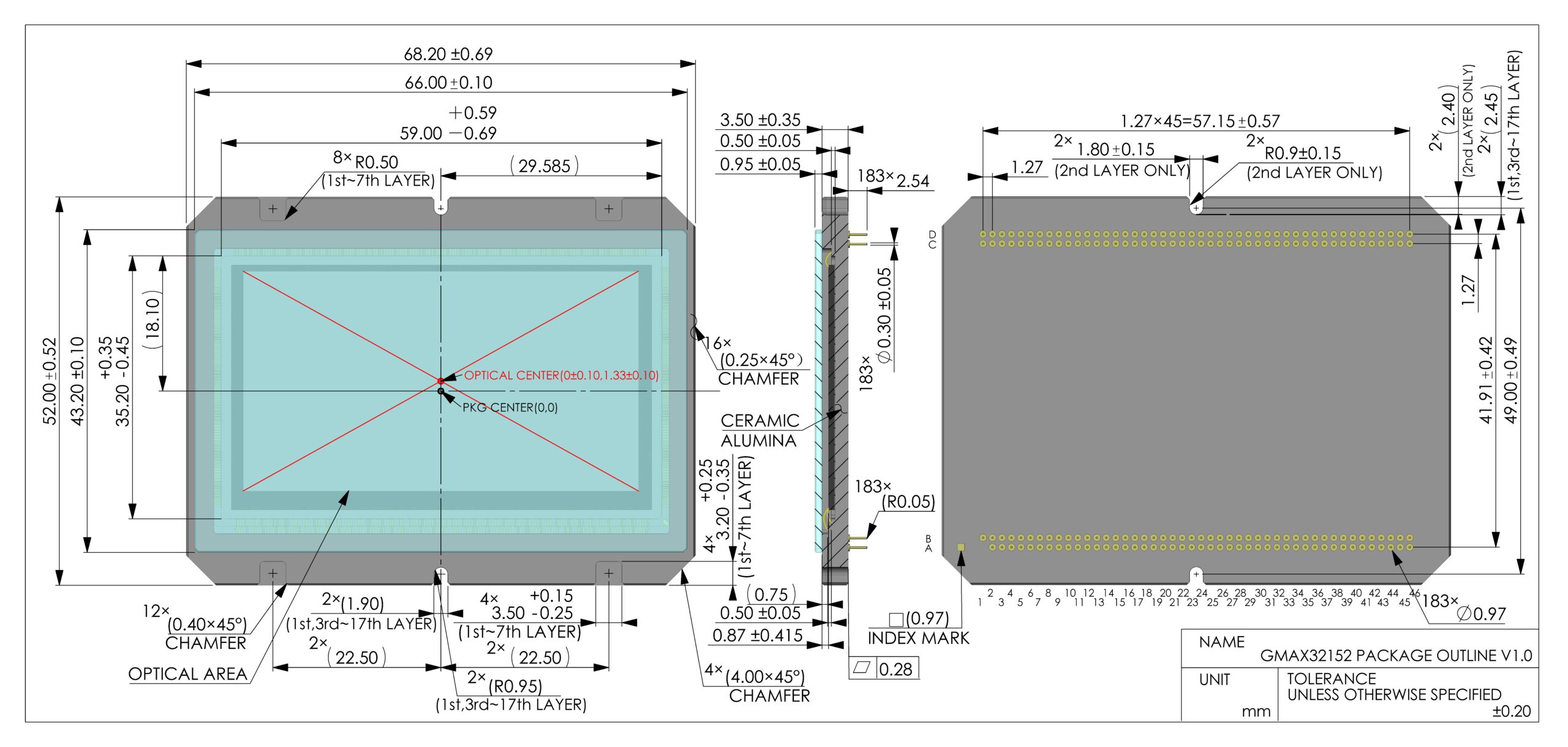

| Package | µPGA 183 pins |
| Preliminary | ✔ |
| On request only | ✔ |
| Evaluation board available | ✔ |
GMAX32152 3.2 µm 152 MP Global Shutter Image Sensor. This sensor is available in different versions, for example:
Note: The last digit »X« is reserved for the degree of sensor error. The complete order number can be found in the data sheet. We would be happy to advise you, please contact us and conveniently place a product inquiry at the bottom of this page!
Documents for download:

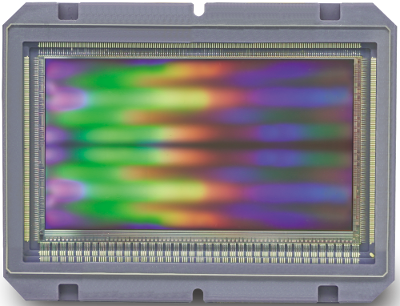

More pictures of the product:
Changes to the specifications by the manufacturer are possible without prior notice. Please contact us if needed or interested. We also advise you on the suitability of the product for a particular application and provide you with an individual price quote.
Last update: 07.21.2022
